Europe 2020 Gv80 20 JRW79DC5K
Catalog: GENESIS202602 Model: JRW79DC5K Model Year: 2021 Engine Number: D6JALD016430 Transmission Number: VFLDAU194014 Destination: EUR Nation: ISRAEL Plant: K4 Exterior Color: ALTA WHITE(SOLID) Interior Color: VANILLA BEIGE Drive Type: DRIVE TYPE - LHD Weather Type: WEATHER - THE TROPICAL ZONE Body Type: WAGON - 5DR 7P Engine Capacity: 3000 CC - I6 Engine Type: DOHC - TCI Fuel Type: DIESEL - DIESEL Transaxle: AUTO - 8 SPEED 4WD Build Date: 2020-12-18 Nation Code: D06 Area: K4 Drive Type: L Weather Type: 1 Order Number: E2012E021D06A Vehicle Factory: 084 Full Specification Code: D06AJRW79DC5K GEGT Exterior Color Code: WHT Interior Color Code: VNB Engine Mip Code: KL54 Transmission Mip Code: ZB92 Seat Code: L5YH Vin Tag: 1 Model Year Code: 20 Catalog Information: (W7) WAGON - 5DR 7P,(9D) 3000 CC - I6,(C) DOHC - TCI,(5) DIESEL - DIESEL,(K) AUTO - 8 SPEED 4WD,(L) DRIVE TYPE - LHD,(1) WEATHER - THE TROPICAL ZONE Region: EU Native Region: EUR

Genesis GV80 20 2020 — Coolant Pipe & Hose [3000 CC - I6]

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
1140306206K BOLT 2
Production:2019-06-10 – …
1140306166K BOLT - FLANGE 2
Production:2019-06-10 – …
1140306126K BOLT 1
Production:2019-06-10 – …
1140306226K BOLT 4
Production:2019-06-10 – …
1140306146K BOLT 1
Production:2019-06-10 – …
1472024006S CLIP - HOSE 2
Production:2019-06-10 – …
1472019006S CLIP - HOSE 2
Production:2019-06-10 – …
1472026006S CLAMP - (HOSE) 1
Production:2019-06-10 – …
254613V000 PIPE ASSY-LP EGR COOLER INLET 1
Production:2019-06-10 – …
254113V000 PIPE - HEATER INLET 1
Production:2019-06-10 – …
254633V000 O-RING HEATER PIPE 1
Production:2019-06-10 – …
254703V000 PIPE ASSY-LP EGR COOLER RETURN 1
Production:2019-06-10 – …
256233V000 GASKET - WATER OUTLET FITTING 25612C 1
Production:2019-06-10 – …
254123V000 HOSE ASSY - HEATER 1
Production:2019-06-10 – …
256143V000 GASKET - THERMOSTAT 1
Production:2019-06-10 – …
256103V000 CASE - THERMOSTAT 1
Production:2019-06-10 – …
256203V000 FITTING ASSY-WATER OUTLET 1
Production:2019-06-10 – …
254623V000 HOSE ASSY - LPG EGR COOLER 1
Production:2019-06-10 – …
254803V000 HOSE ASSY - HYBRID PCU, INNER 1
Production:2019-06-10 – …
392303V000 SENSOR ASSY - WATER TEMPERATURE 1
Production:2019-06-10 – …
392232M425 O-RING 1
Production:2019-06-10 – …

Diagram

21 parts

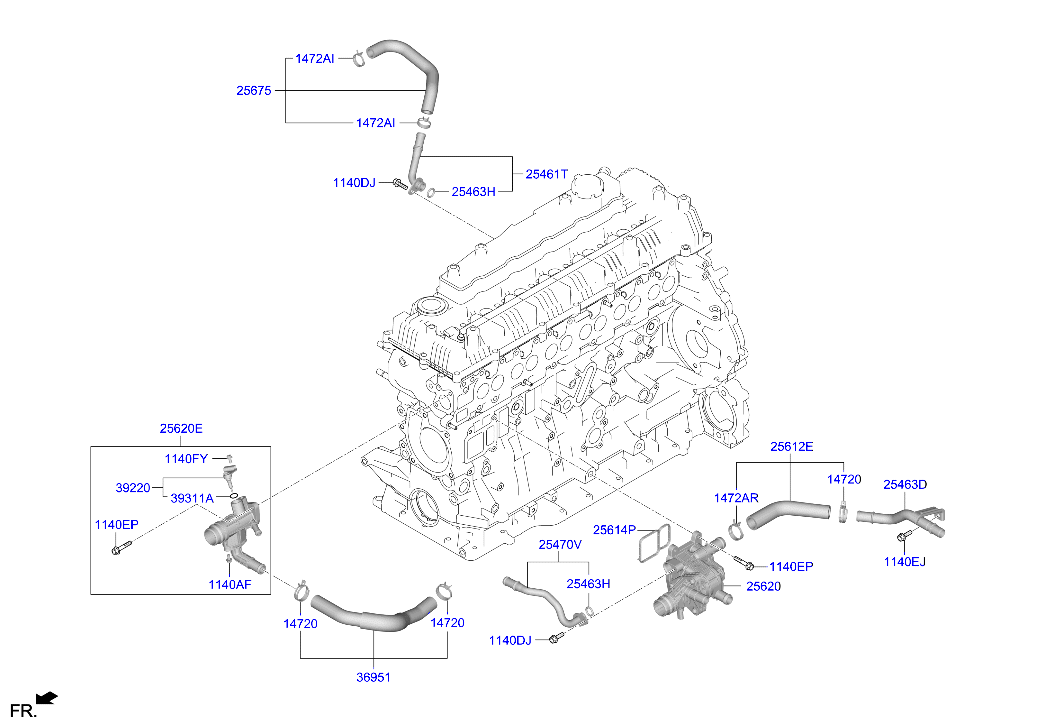

Genesis GV80 20 2020 — Coolant Pipe & Hose [3000 CC - I6]
