General 2007 TFR/TFS(THAILAND) 50931~2003~2011
Catalog: ISUZU201809 Vehicle Class: PICKUP Model Qualifier: TF Source Catalog Name: TFR/TFS(THAILAND) 03 - 11 Source Production Code: 20071011 Production Date: 20071011 Ak6: AIR BAG DRIVER & PASSENGER DELETE D34: SUNVISOR PASSENGER SIDE W/VANITY MIRROR Rw5: KD PACK THAILAND 6 Wl: FORMED MUD FLAP Uca: ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER E63: REAR BODY DBL WALL CTR PULL Ujh: OUTSIDE TEMPERATURE GAGE A31: DRIVER POWER WINDOW W/AUTO DOOR DOWN D31: RR VIEW MIRROR TILT DAY & NIGHT S9 R: AIR CLEANER DRY ELEMENT N40: POWER STEERING Dk6: HEADER CONSOLE 20 D: THAILAND KD DELETION PARTS Ula: RADIO AM/FM & CD & AUX/USB 8 Kx: ZETAI NOSENAI Ap5: REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM A50: FRONT SEAT BUCKET STANDARD Vy7: SHIFT KNOB LEATHER Qbq: FRT&RR 215/70R15C BRIDGESTONE TIRE By9: KNOB DECORATION W/CHROME RING Vt4: FRT BUMPER UPPER BODY COLOR LOWER GRAY PAINT Au4: AUTO DOOR LOCK B03: THAILAND EQUIPMENT V22: BRIGHT RAD GRILLE Cd4: VARIABLE DELAY PULSE WINDSHIELD WIPER E91: FRONT SEAT BACK POCKET U05: DUAL TONE HORN Tq4: BATTERY 65D31L 682: BODY COLOR COSMIC GRAY MET Np5: LEATHER-WRAPPED STEERING WHEEL 4SPOKES C65: AIR CONDITIONER MANUAL CONT WO/HEATER A99: LOCK GLOVE BOX U16: TACHOMETER B30: VINYL CARPET U27: LAMP GLOVE COMPARTMENT 8 Lh: HEADLAMPS PROJECTOR BEAM 8 Mb: INTERIOR STEERING CENTER PAD BADGE Kc5: ACCESSORY SOCKET FRT CONSOLE Pf3: DISC WHEEL 15X6.5-41 ALUMI 7 Xw: SIDE TURN SIGNAL LAMP 7 Nu: DRIVER SIDE FOOT REST T96: FRT FOG LAMP C49: REAR DEFOGGER T48: KEYS IN IGNITION REMINDER SYSTEM ALARM T63: HEAD LAMP WARNING ALARM Ts6: HIGH MOUNT STOP LAMP Nt3: EURO3 SPECIFICATION N08: FUEL LID OPENER D75: HANDLE O/S DOOR BODY COLOR Uq4: 4-SPEAKER SYSTEM BASE Vp1: FRONT UNDER SPOILER E28: ASSIST HANDLE Gm0: FINAL GEAR RATIO 43/12 Ue8: ELECTRIC DIGITAL CLOCK D55: FRONT CONSOLE W/LID 8 Lp: SEAT TRIM HIGH GRADE CLOTH THAI SLX N33: TILT STEERING 8 Me: DOOR MIR ELEC POWER FOLDING COLOR TURN SIGNAL 116: INTERIOR COLOR IN VERY DARK GRAY 8 Lq: SHIELD ENG SIGHT 7 Wl: ISUZU BRAND U71: ROOF RADIO ANTENNA A02: GLASS-TINTTED WIND SHIELD Region: OTHER Native Region: WW

Isuzu TFR/TFS(Thailand) 2007 — Engine Electrical Control Parts — Starter,Generator And Thermo Switch

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
8980281990 STARTER ASM 1
Production:2007-09 – 2007-09 Usage:SEE FIG-NO 0-65 FOR COMPONENT.(B)12V 2.3KWTHA Manufacturer:ISUZU Applied Date:0709-0709 Applied Model:DE
8973697161 GENERATOR ASM 1
Production:2005-01 – 2010-04 Usage:SEE FIG-NO 0-66 FOR COMPONENT.12V 90ATHA Manufacturer:ISUZU Applied Date:0501-1004 Itc:C Applied Model:E
8971618461 BOLT; STARTER 2
Production:2007-09 – 2007-09 Usage:M12X60THA Manufacturer:ISUZU Applied Date:0709-0709 Applied Model:DE
0911801120 NUT; STARTER 2
Production:2007-09 – 2007-09 Usage:M12 FLANGETHA Manufacturer:ISUZU Applied Date:0709-0709 Applied Model:DE
8972264701 BOLT; GEN 1
Production:2007-09 – 2007-09 Usage:M10X125 FLANGETHA Manufacturer:ISUZU Applied Date:0709-0709 Applied Model:DE
8973560201 BRACKET; GEN 1
Production:2007-09 – 2007-09 Usage:(B)THA Manufacturer:ISUZU Applied Date:0709-0709 Applied Model:DE
0911802100 NUT; GEN 1
Production:2007-09 – 2007-09 Usage:M10 FLANGETHA Manufacturer:ISUZU Applied Date:0709-0709 Applied Model:DE
0286510350 BOLT; GEN BRKT 1
Production:2007-09 – 2007-09 Usage:(A)M10X35 FLANGETHA Manufacturer:ISUZU Applied Date:0709-0709 Applied Model:DE
0286510400 BOLT; GEN BRKT 2
Production:2007-09 – 2007-09 Usage:(B)M10X40 FLANGETHA Manufacturer:ISUZU Applied Date:0709-0709 Applied Model:DE
8980237170 SENSOR; GLOW PLUG,THERMO 1
Production:2007-09 – 2007-09 Usage:NIPPON THERMOSTATIMA Manufacturer:ISUZU Applied Date:0709-0709 Applied Model:DE
8973121081 SENSOR; CAMSHAFT POSITION 1
Production:2007-09 – 2007-09 Usage:IMA Manufacturer:ISUZU Applied Date:0709-0709 Applied Model:DE
8973694040 GASKET; SENSOR 1
Production:2007-09 – 2007-09 Usage:ID=14.2 OD=18.8IMA Manufacturer:ISUZU Applied Date:0709-0709 Applied Model:DE
0280506160 BOLT; SENSOR 1
Production:2007-09 – 2007-09 Usage:(A)M6X16 FLANGETHA Manufacturer:ISUZU Applied Date:0709-0709 Applied Model:DE
— Part does not apply to this vehicle configuration. 24 —
— Part does not apply to this vehicle configuration. 8 —
— Part does not apply to this vehicle configuration. 83 —
— Part does not apply to this vehicle configuration. 108 —

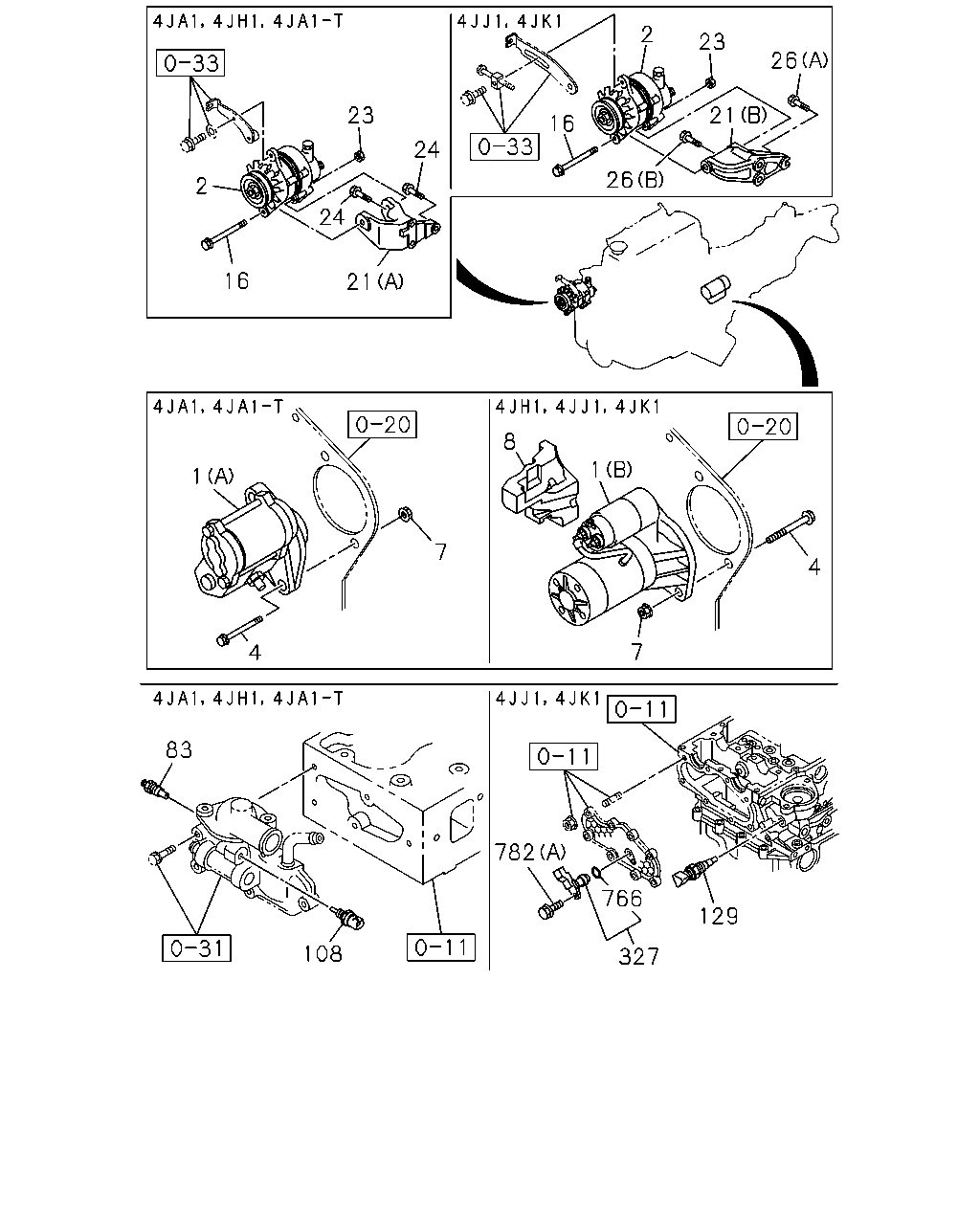

Diagram

13 parts
