Open RegionYearModelModelCode Details
General 2006 TFR/TFS MIDDLE EAST 51277~2004~2011
Catalog: ISUZU201809 Vehicle Class: PICKUP Model Qualifier: TF Source Catalog Name: TFR/TFS MIDDLE EAST 04 - 11 Source Production Code: 20060205 Production Date: 20060205 Ak6: AIR BAG DRIVER & PASSENGER DELETE Gh3: SAUDI ARABIA EQUIPMENT V89: GUARD FRAME BAR CARGO TIE DOWN E63: REAR BODY DBL WALL CTR PULL T92: HEAD LAMP BEAM MODIFICATION N40: POWER STEERING 877: BODY COLOR ALPINE WHITE Jr9: BRK WHL LK CONT LSPV Vf6: REAR STEP BUMPER C60: AIR CONDITIONER MANUAL CONTROL 7 Mz: OUTER ROPE HOOKS K46: HEAVY DUTY AIR CLEANER Rt9: DOOR MIRROR MANUAL MATERIAL BLACK Gy2: FINAL GEAR RATIO 43/10 Ul5: RADIO DELETE 7 Fl: SEAT CLOTH 7 La: RADIATOR GRILLE IRON GRAY MET T48: KEYS IN IGNITION REMINDER SYSTEM ALARM T63: HEAD LAMP WARNING ALARM Ts6: HIGH MOUNT STOP LAMP N08: FUEL LID OPENER Tq6: BATTERY 46B24L A52: BENCH SEAT U95: 2-SPEAKER SYSTEM BASE 8 Jc: VIN MODEL YEAR 2006 Cnu: FRT&RR 195R14C Nt1: EURO1 SPECIFICATION Bsx: DISC WHEEL 5.5X14-41 STEEL 160: INTERIOR COLOR GRAY Rwe: CHEVROLET BRAND 8 Hz: VIN FORMAT US TYPE Vh4: MUD FLAP Region: OTHER Native Region: WW

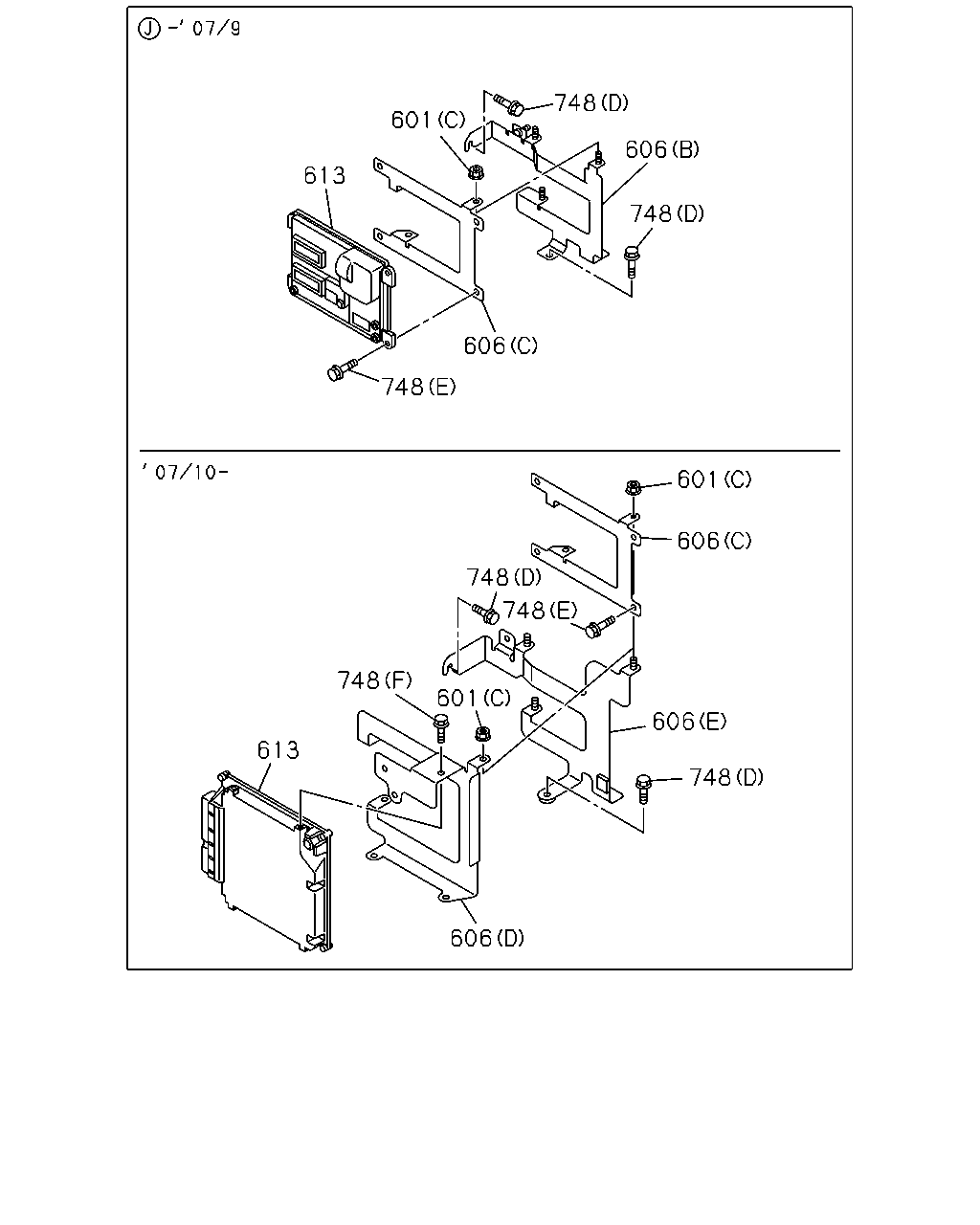

Isuzu TFR/TFS Middle East 2006 — Engine Electrical Control Parts — 4JJ1(No.3)

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
8110131270 03.670 NUT; UNIT 2
Production:2003-06 – 9999-99 Usage:03.901(A) Manufacturer:ISUZU Applied Date:0306- Applied Model:A 8 Digit P/n:11013127
8110944250 03.670 NUT; UNIT 4
Production:2003-06 – 9999-99 Usage:02.042(B)M6 Manufacturer:ISUZU Applied Date:0306- Applied Model:A 8 Digit P/n:11094425
8920661690 03.680 BRACKET; CONT UNIT 1
Production:2003-06 – 9999-99 Usage:(A) Manufacturer:ISUZU Applied Date:0306- Applied Model:A 8 Digit P/n:92066169
8093874590 03.670 CONTROL UNIT; ENG 1
Production:2003-06 – 9999-99 Usage:EURO1 SPECIFICATION<NT1> Manufacturer:ISUZU Applied Date:0306- Applied Model:A 8 Digit P/n:09387459
8920654350 02.500 BOLT; CONT UNIT 4
Production:2003-06 – 9999-99 Usage:(C) Manufacturer:ISUZU Applied Date:0306- Applied Model:A 8 Digit P/n:92065435
8921386950 02.500 BOLT; CONT UNIT 2
Production:2003-06 – 2006-11 Usage:(B) Manufacturer:ISUZU Applied Date:0306-0611 Applied Model:A 8 Digit P/n:92138695

Diagram

6 parts
Isuzu TFR/TFS Middle East 2006 — Engine Electrical Control Parts — 4JJ1(No.3)
