General 2005 TFR/TFS(EUROPE) RHD 50967~2004~9999
Catalog: ISUZU201809 Vehicle Class: PICKUP Model Qualifier: TF Source Catalog Name: TFR/TFS(EUROPE)-RHD 04 - Source Production Code: 20050912 Production Date: 20050912 Color: 685-BODY COLOR BLACK SAPPHIRE MICA Interior Color: 160-INTERIOR COLOR GRAY D34: SUNVISOR PASSENGER SIDE W/VANITY MIRROR Tx7: FACE LIFT MODEL Df9: DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL 8 Ep: CLOTH SEAT MOQUETTE E63: REAR BODY DBL WALL CTR PULL T92: HEAD LAMP BEAM MODIFICATION A31: DRIVER POWER WINDOW W/AUTO DOOR DOWN D31: RR VIEW MIRROR TILT DAY & NIGHT 7 Kc: IMMOBILIZER SYSTEM C13: FRT WIPER 2 SPEED & INTERMITTENT N40: POWER STEERING Dk6: HEADER CONSOLE C60: AIR CONDITIONER MANUAL CONTROL E20: HANDLE O/S DOOR CHROME E09: EUROPE EQUIPMENT Ap5: REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM A50: FRONT SEAT BUCKET STANDARD Vy7: SHIFT KNOB LEATHER By9: KNOB DECORATION W/CHROME RING Vt4: FRT BUMPER UPPER BODY COLOR LOWER GRAY PAINT Au4: AUTO DOOR LOCK T79: RR FOG LAMP 7 We: SKID PLATE B74: OVER FENDER Nr4: SHIFT ON THE FLY Ny1: FUEL TANK SHIELD Gy2: FINAL GEAR RATIO 43/10 V22: BRIGHT RAD GRILLE E91: FRONT SEAT BACK POCKET 8 Jg: WHEEL BALANCE WEIGHTED STEEL TYPE Ak5: AIR BAG DRIVER & PASSENGER Np5: LEATHER-WRAPPED STEERING WHEEL 4SPOKES A99: LOCK GLOVE BOX U16: TACHOMETER B30: VINYL CARPET 7 Ky: REMOTE CONT DOOR LOCK W/ANTI THEFT U27: LAMP GLOVE COMPARTMENT Uw5: 6-SPEAKER SYSTEM BASE Kc5: ACCESSORY SOCKET FRT CONSOLE 7 Xw: SIDE TURN SIGNAL LAMP 7 Nu: DRIVER SIDE FOOT REST T96: FRT FOG LAMP C49: REAR DEFOGGER S8 C: REAR HEATER DUCT G80: AXLE POSITRACTION LIMITED SLIP T48: KEYS IN IGNITION REMINDER SYSTEM ALARM T63: HEAD LAMP WARNING ALARM Ts6: HIGH MOUNT STOP LAMP Nt3: EURO3 SPECIFICATION Pf4: DISC WHEEL 16X7-33 ALUMI BUSH LESS N08: FUEL LID OPENER 685: BODY COLOR BLACK SAPPHIRE MICA 8 Hr: AIR CLEANER VISCOUS TYPE WET A70: SEAT BELT TENSIONER FRT Qcq: FRT&RR 245/70R16 BRIDGESTONE DUELER H/T689 E28: ASSIST HANDLE B84: PROTECTOR-BODY SIDE MOLDING Ue8: ELECTRIC DIGITAL CLOCK D55: FRONT CONSOLE W/LID 7 Ql: INST PANEL FOR DIN E SIZE AUDIO V2 K: DECAL ISUZU D-MAX N33: TILT STEERING 160: INTERIOR COLOR GRAY 7 Wl: ISUZU BRAND 8 Cm: POLLEN FILTER FOR AIR CONDITIONER Je5: ANTI-LOCK BRAKE-'93'94- 8 Aa: GOOD QUALITY ETHYLENE GLYCOL ANTIFREEZE 50% Tq8: BATTERY 95D31L Region: OTHER Native Region: WW

Isuzu TFR/TFS(Europe)-RHD 2005 — Turbocharger System — Turbocharger Side;4JH1-TC

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
8973544234 03.342 TURBOCHARGER ASM 1
Production:2003-07 – 2006-09 Usage:SEE FIG-NO 0-37 FOR COMPONENT. Manufacturer:ISUZU Applied Date:0307-0609 Applied Model:B 8 Digit P/n:97354423
8979126970 03.342 GASKET; TURBOCHARGER TO EXH MANI 1
Production:2004-03 – 2006-09 Usage:ALSO INCLUDED IN GASKET SET(ENG. & HEAD) Manufacturer:ISUZU Applied Date:0403-0609 Applied Model:B 8 Digit P/n:97912697
8979126940 03.342 GASKET; TURBOCHARGER TO EXH DUCT 1
Production:2004-03 – 2006-09 Usage:ALSO INCLUDED IN GASKET SET(ENG. & HEAD) Manufacturer:ISUZU Applied Date:0403-0609 Applied Model:B 8 Digit P/n:97912694
8971616070 03.342 NUT; TURBOCHARGER 4
Production:2003-07 – 2006-09 Usage:03.613M8 FLANGE Manufacturer:ISUZU Applied Date:0307-0609 Applied Model:AB 8 Digit P/n:97161607
8973780600 03.342 STUD; TURBOCHARGER 4
Production:2004-10 – 2006-09 Usage:M8X20 L=31 Manufacturer:ISUZU Applied Date:0410-0609 Applied Model:AB 8 Digit P/n:97378060
8971045071 03.342 STUD; TURBOCHARGER TO EXH PIPE 4
Production:2004-12 – 2006-07 Usage:M8X43 L=54 Manufacturer:ISUZU Applied Date:0412-0607 Itc:A Applied Model:AB 8 Digit P/n:97104507
8971616070 03.613 NUT; EXH PIPE 4
Production:2003-07 – 2006-09 Usage:M8 FLANGE Manufacturer:ISUZU Applied Date:0307-0609 Applied Model:AB 8 Digit P/n:97161607
0492410300 03.342 STUD; EXH PIPE 2
Production:2004-03 – 2006-09 Usage:M10X30 L=45 Manufacturer:ISUZU Applied Date:0403-0609 Applied Model:AB 8 Digit P/n:94013093
8979200340 03.342 PIPE; WATER,TURBOCHARGER OUT 1
Production:2004-03 – 2006-09 Manufacturer:ISUZU Applied Date:0403-0609 Applied Model:B 8 Digit P/n:97920034
0280506100 03.342 BOLT; WATER PIPE 2
Production:2004-03 – 2006-09 Usage:03.671(C)M6X10 FLANGE Manufacturer:ISUZU Applied Date:0403-0609 Applied Model:AB 8 Digit P/n:94011755
0505406120 03.342 BOLT; WATER PIPE 1
Production:2004-03 – 2006-09 Usage:(A)M6X12 W/LK WASHER Manufacturer:ISUZU Applied Date:0403-0609 Applied Model:AB 8 Digit P/n:94012087
0280508120 03.342 BOLT; WATER PIPE 2
Production:2004-03 – 2006-09 Usage:02.343(D)M8X12 FLANGE Manufacturer:ISUZU Applied Date:0403-0609 Applied Model:B 8 Digit P/n:94011764
8979200630 03.342 GASKET; WATER PIPE 1
Production:2004-03 – 2006-09 Usage:ALSO INCLUDED IN GASKET SET(ENGINE).(B)T=2.5 Manufacturer:ISUZU Applied Date:0403-0609 Applied Model:B 8 Digit P/n:97920063
9095714120 03.342 GASKET; WATER PIPE 4
Production:2003-07 – 2006-09 Usage:ALSO INCLUDED IN GASKET SET(ENGINE).08.955(A)ID=12.2 OD=18 Manufacturer:ISUZU Applied Date:0307-0609 Applied Model:B 8 Digit P/n:94000374
8943679430 03.342 CLIP; WATER HOSE 14
Production:2003-07 – 2006-09 Usage:01.153(A)ID=12.8 Manufacturer:ISUZU Applied Date:0307-0609 Applied Model:AB 8 Digit P/n:94367943
8979126881 03.342 HOSE; WATER,TURBOCHARGER 1
Production:2004-03 – 2006-09 Usage:(B)L=250 W/INSULATOR Manufacturer:ISUZU Applied Date:0403-0609 Applied Model:B 8 Digit P/n:97912688
8979200620 01.097 ADAPTER; WATER 1
Production:2004-03 – 2006-09 Manufacturer:ISUZU Applied Date:0403-0609 Applied Model:B 8 Digit P/n:97920062
8979200350 01.097 PIPE; WATER,TURBOCHARGER IN 1
Production:2004-03 – 2006-09 Manufacturer:ISUZU Applied Date:0403-0609 Applied Model:B 8 Digit P/n:97920035
1096750810 03.342 BOLT; EYE,WATER PIPE 2
Production:2003-07 – 2006-09 Usage:01.531M12X24 EYE-BOLT Manufacturer:ISUZU Applied Date:0307-0609 Applied Model:B 8 Digit P/n:94034172
8979126840 03.342 HOSE; RUBBER,TURBOCHARGER OUT 1
Production:2004-03 – 2006-09 Usage:L=160 W/INSULATOR Manufacturer:ISUZU Applied Date:0403-0609 Applied Model:B 8 Digit P/n:97912684

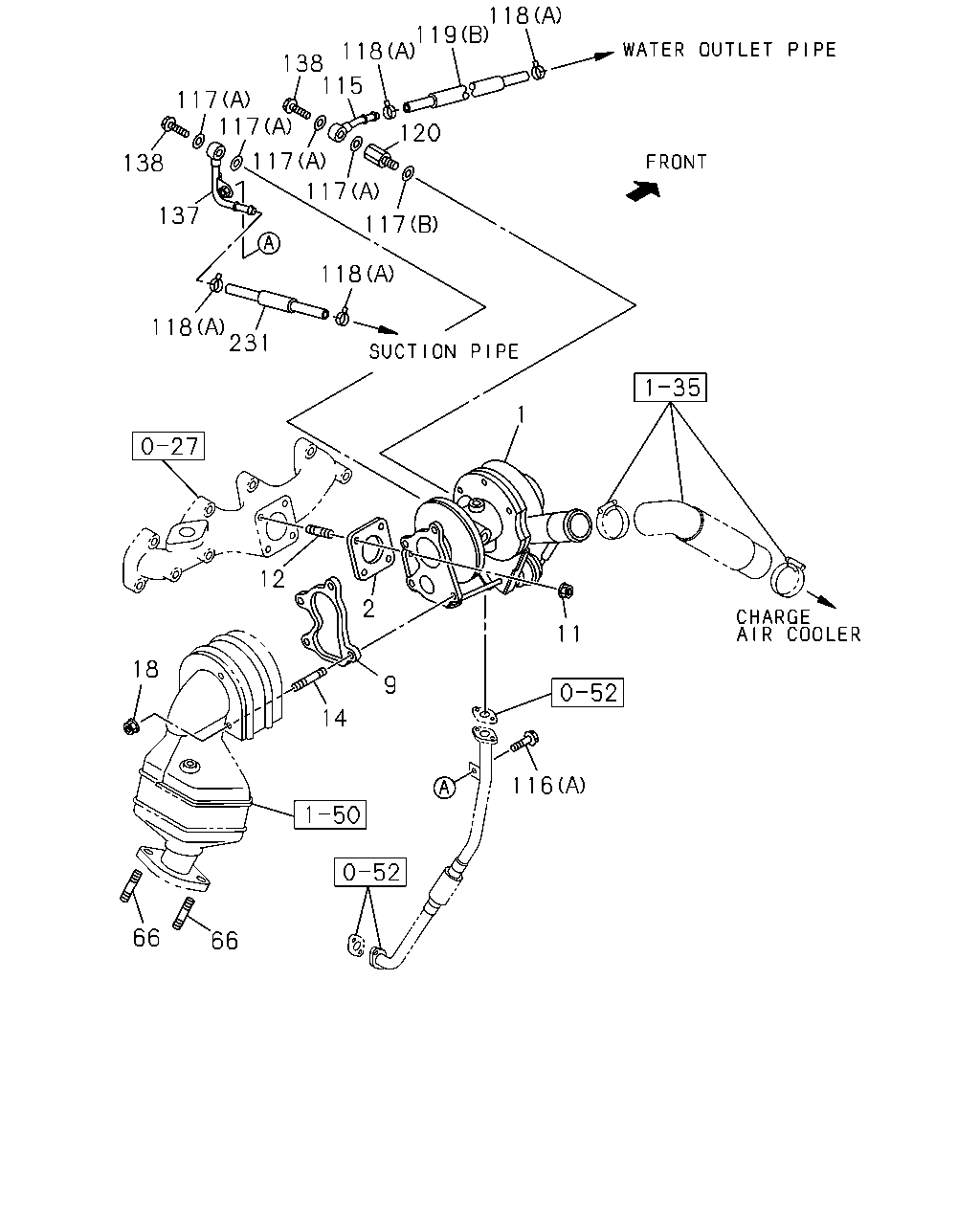

Diagram

20 parts
Isuzu TFR/TFS(Europe)-RHD 2005 — Turbocharger System — Turbocharger Side;4JH1-TC
