Lexus ES350-300H 2018 — Windshield Wiper
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 89941-11010 | SENSOR, RAIN | 1 | |
Note:AXZH10 Production:2018-07 – 2020-08 Spec:ULTRA LUXURY PACKAGE&WINDSHIELD WIPER CONTROL-AUTO WIPER(RAIN SENSOR) | |||
| 89943-33070 | COVER, RAIN SENSOR | 1 | |
Note:AXZH10 Production:2018-07 – 2020-08 Spec:ULTRA LUXURY PACKAGE&WINDSHIELD WIPER CONTROL-AUTO WIPER(RAIN SENSOR) | |||
| 89944-42020 | TAPE, RAIN SENSOR | 1 | |
Note:AXZH10 Production:2018-07 – 2020-08 Spec:ULTRA LUXURY PACKAGE&WINDSHIELD WIPER CONTROL-AUTO WIPER(RAIN SENSOR) | |||
| 85212-33280 | BLADE, FR WIPER, RH | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 85214-33180 | RUBBER, WIPER, RH | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 85222-33320 | BLADE, FR WIPER, LH | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 85214-52110 | RUBBER, WIPER, LH | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 85211-33400 | ARM, FRONT WIPER, RH | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 90182-10006 | NUT (FOR FRONT WIPER ARM SETTING) | 2 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 85292-13010 | CAP, FRONT WIPER ARM HEAD | 2 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 85221-33400 | ARM, FRONT WIPER, LH | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – 2021-07 | |||
| 85110-33450 | MOTOR ASSY, WINDSHIELD WIPER | 1 | |
Note:AXZH10,GSZ10 Production:2018-06 – 2020-05 Replacements:85110-33451 (fitment: unknown) | |||
| 85150-33340 | LINK ASSY, WINDSHIELD WIPER | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 90119-06864 | standard | — | |

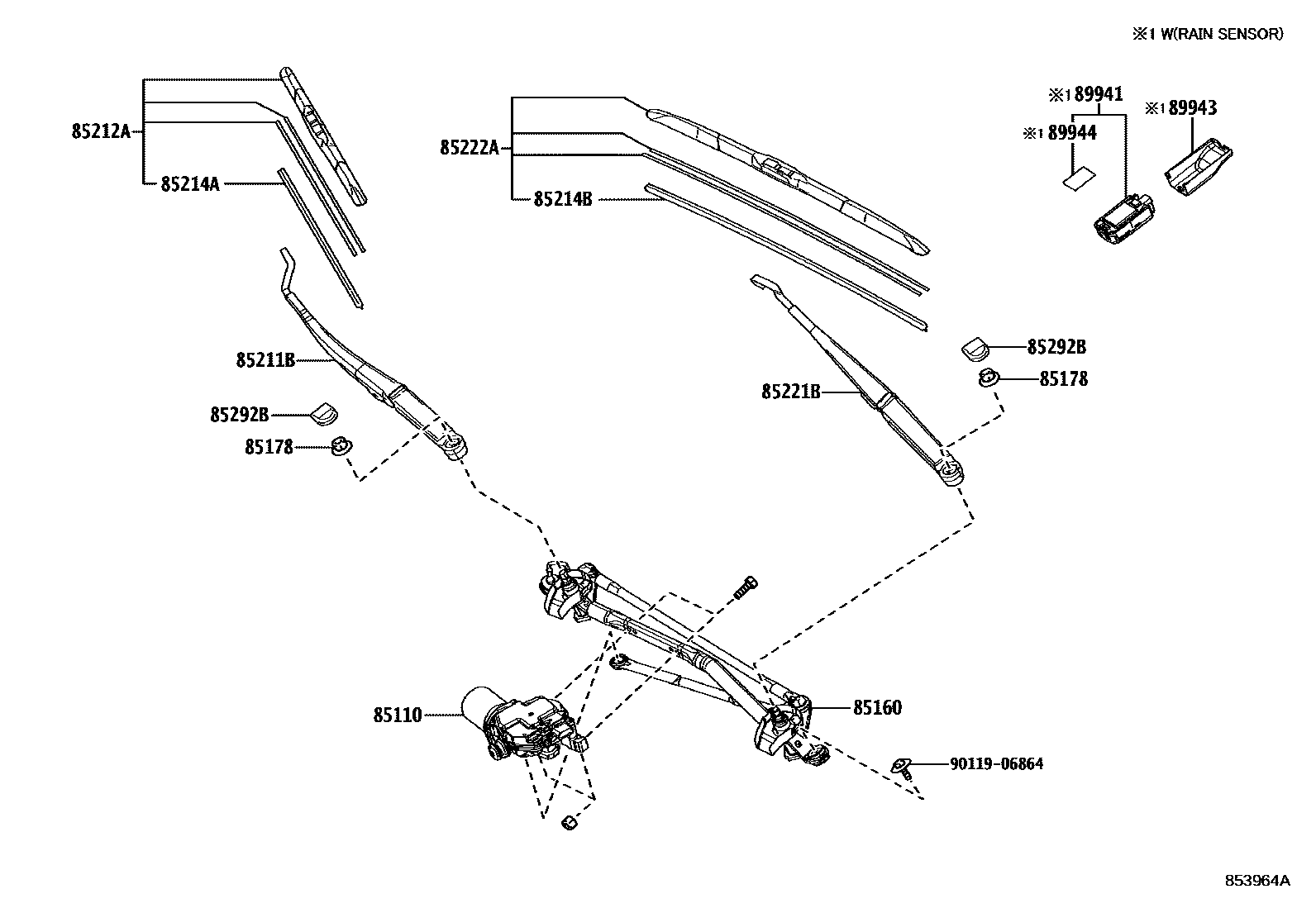

Diagram
14 parts
