Open RegionYearModelModelCode Details
USA / Canada 2018 ES350 300H AXZH10L-AEXGBA
Catalog: LEXUS202608 Engine: 2500CC 16-VALVE DOHC Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Color Code: 4X8 Trim Code: LC11 Production: 201807-999999 Model Short: AXZH10L-AEXGBA Region: NA Native Region: US

Lexus ES350-300H 2018 — Crankshaft & Piston

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
13011-25080 RING SET, PISTON 1
Note:A25AFXS..AXZH1# Production:2018-07 – 2021-10 Spec:STD
90520-21024 RING, HOLE SNAP(FOR PISTON PIN) 8
Note:A25AFXS..AXZH1# Production:2018-07 – 2021-10
13265-25020 BOLT, CONNECTING ROD 8
Note:A25AFXS..AXZH1# Production:2018-07 – 2021-10
13451-25030 FLYWHEEL SUB-ASSY 1
Note:A25AFXS..AXZH1# Production:2018-07 – 2021-10
90250-08120 PIN, STRAIGHT(FOR FLYWHEEL) 3
Note:A25AFXS..AXZH1# Production:2018-07 – 2021-10 Spec:L=18,OD=8
90105-12404 BOLT, FLYWHEEL SETTING 8
Note:A25AFXS..AXZH1# Production:2018-07 – 2021-10
13470-25020 PULLEY ASSY, CRANKSHAFT 1
Note:A25AFXS..AXZH1# Production:2018-07 – 2021-10
90119-16020 BOLT(FOR CRANKSHAFT PULLEY SET) 1
Note:A25AFXS..AXZH1# Production:2018-07 – 2021-10
13519-25010 SPROCKET, OIL PUMP DRIVE 1
Note:A25AFXS..AXZH1# Production:2018-07 – 2021-10
13521-25010 GEAR OR SPROCKET, CRANKSHAFT TIMING 1
Note:A25AFXS..AXZH1# Production:2018-07 – 2021-10
19315-25010 PLATE, CRANK ANGLE SENSOR, NO.1 1
Note:A25AFXS..AXZH10 Production:2018-07 – 2019-11 Replacements:19315-25011 (fitment: unknown)
13101-25040 PISTON SUB-ASSY, W/PIN 4
Note:A25AFXS..AXZH1# Production:2018-07 – 2021-10 Spec:STD
13201-29815-A0 ROD SUB-ASSY, CONNECTING 4
Note:A25AFXS..AXZH1# Production:2018-07 – 2021-10 Spec:MARK A,REFER REPAIR MANUAL
13201-29815-B0 ROD SUB-ASSY, CONNECTING 4
Note:A25AFXS..AXZH1# Production:2018-07 – 2021-10 Spec:MARK B,REFER REPAIR MANUAL
13201-29815-C0 ROD SUB-ASSY, CONNECTING 4
Note:A25AFXS..AXZH1# Production:2018-07 – 2021-10 Spec:MARK C,REFER REPAIR MANUAL
11701-25010-01 BEARING, CRANKSHAFT 5
Note:A25AFXS..AXZH10 Production:2018-07 – 2019-06 Spec:MARK 1,NO.1,2 REFER R/M
11701-25010-02 BEARING, CRANKSHAFT 5
Note:A25AFXS..AXZH10 Production:2018-07 – 2019-06 Spec:MARK 2,NO.1,2 REFER R/M
11701-25010-03 BEARING, CRANKSHAFT 5
Note:A25AFXS..AXZH10 Production:2018-07 – 2019-06 Spec:MARK 3,NO.1,2 REFER R/M
11701-25010-04 BEARING, CRANKSHAFT 5
Note:A25AFXS..AXZH10 Production:2018-07 – 2019-06 Spec:MARK 4,NO.1,2 REFER R/M
11701-25010-05 BEARING, CRANKSHAFT 5
Note:A25AFXS..AXZH10 Production:2018-07 – 2019-06 Spec:MARK 5,NO.1,2 REFER R/M
11791-25030 WASHER, CRANKSHAFT THRUST, UPPER 2
Note:A25AFXS..AXZH1# Production:2018-07 – 2021-02 Replacements:11791-25040 (fitment: unknown) Spec:STD
13401-25010 CRANKSHAFT 1
Note:A25AFXS..AXZH1# Production:2018-07 – 2021-10
90250-06035 PIN, STRAIGHT(FOR CRANKSHAFT) 1
Note:A25AFXS..AXZH1# Production:2018-07 – 2021-10
90280-04001 KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) 2
Note:A25AFXS..AXZH1# Production:2018-07 – 2021-10
13041-25020-01 BEARING, CONNECTING ROD 4
Note:A25AFXS..AXZH1# Production:2018-07 – 2021-10 Spec:MARK 1,REFER REPAIR MANUAL
13041-25020-02 BEARING, CONNECTING ROD 4
Note:A25AFXS..AXZH1# Production:2018-07 – 2021-10 Spec:MARK 2,REFER REPAIR MANUAL
13041-25020-03 BEARING, CONNECTING ROD 4
Note:A25AFXS..AXZH1# Production:2018-07 – 2021-10 Spec:MARK 3,REFER REPAIR MANUAL

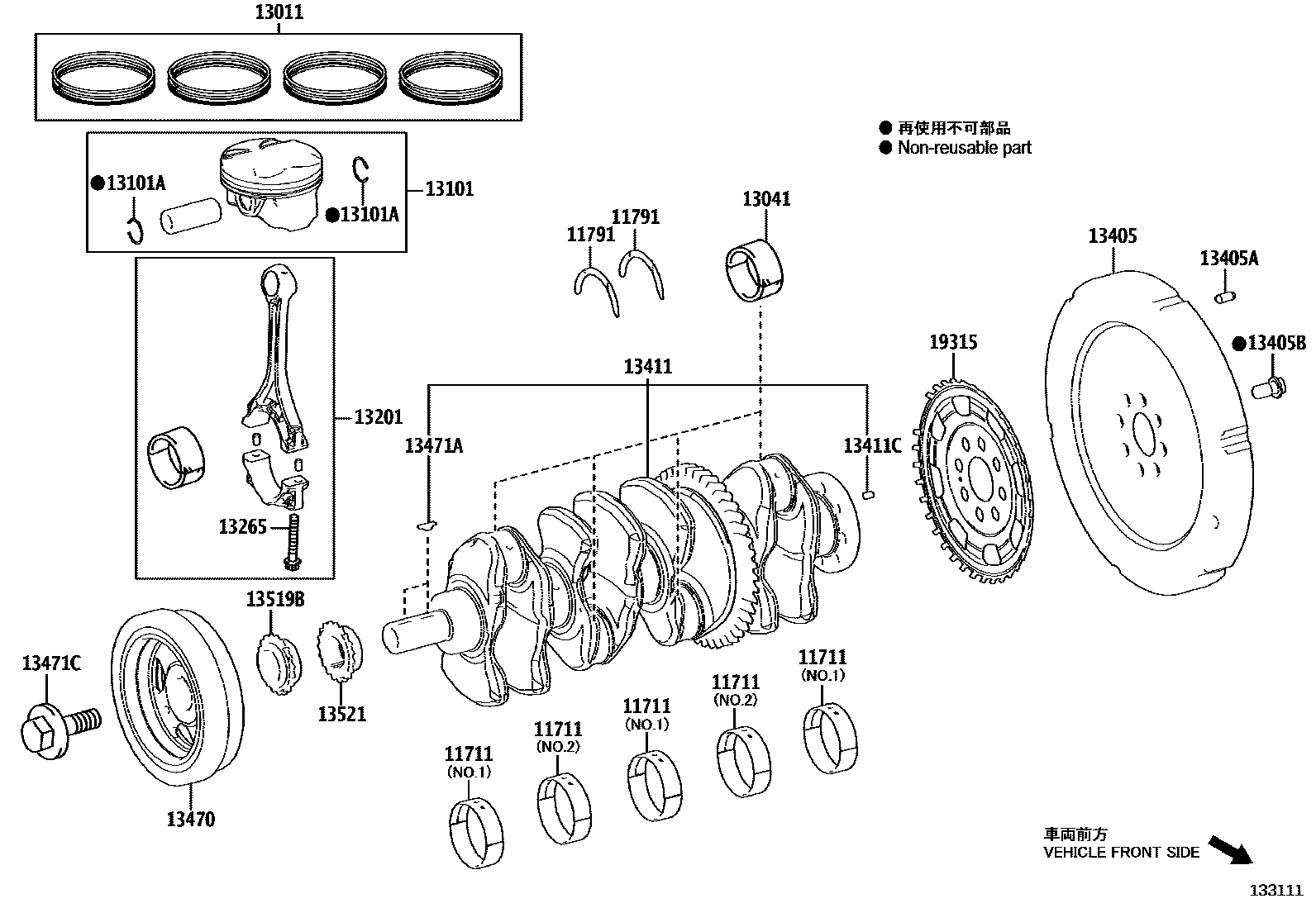

Diagram

27 parts
Lexus ES350-300H 2018 — Crankshaft & Piston
