Open RegionYearModelModelCode Details
Europe 2022 ES350 300H 2 AXZH10L-AEXGBW
Catalog: LEXUS202608 Engine: 2500CC 16-VALVE DOHC Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Body Description: SEDAN Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: EUROPE Doors Description: 4-DOOR Color Code: 1L1 Trim Code: LC01 Production: 201807-202108 Model Short: AXZH10L-AEXGBW Region: EU Native Region: EU

Lexus ES350-300H-2 2022 — Cowl Panel & Windshield Glass

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
53383-33160 SEAL, HOOD TO COWL TOP 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..LHD..EUR Production:2022-02 – 2025-12
55701-33320 PANEL SUB-ASSY, COWL TOP, OUTER 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..LHD..(EUR,GCC) Production:2021-08 – 2025-12
55705-33050 PANEL SUB-ASSY, COWL TOP SIDE, RH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
55706-33050 PANEL SUB-ASSY, COWL TOP SIDE, LH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
55708-33310 LOUVER SUB-ASSY, COWL TOP VENTILATOR 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..LHD..EUR Production:2022-02 – 2025-12
55737-33070 STOPPER, COWL BODY MOUNTING BOLT 2
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
67867-12150 CLIP, COWL TOP VENTILATOR LOUVER 4
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
55789-33050 INSULATOR, COWL TOP PANEL, NO.2 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
55789-33060 INSULATOR, COWL TOP PANEL, NO.3 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
55797-33040 RETAINER, FRONT PANEL WIPER MOTOR BRACKET 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..LHD..(EUR,GCC) Production:2021-08 – 2025-12
56101-3Y939 GLASS, WINDSHIELD 1
Note:AXZH10..LHD..EUR Production:2021-08 – 2025-12 Spec:HEAD-UP DISPLAY-WITH
56114-48020 RETAINER, WINDSHIELD GLASS 2
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,CHI,EUR,GCC,GEN Production:2021-08 – 2024-01
55783-33130 PAD, COWL TOP SILENCER 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
56115-30120 STOPPER, WINDSHIELD GLASS 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
56116-22050 STOPPER, WINDSHIELD GLASS, NO.2 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
56117-64010 DAM, WINDOW GLASS ADHESIVE 1
Note:AXZA10..ARL;AXZH10,GSZ10..ARL,EUR Production:2021-08 – 2025-12 Spec:L=3003,HEAD-UP DISPLAY-WITH
61163-33040 PILLAR, FRONT BODY, LOWER INNER RH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
61164-33040 PILLAR, FRONT BODY, LOWER INNER LH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
75533-33120 MOULDING, WINDSHIELD, OUTSIDE 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
56153-33020 MOULDING, FRONT WINDOW, INNER CENTER 1
Note:GSZ10..GCC;AXZA10,AXZH10,MXZA10..LHD..(EUR,GCC) Production:2021-08 – 2025-12
55783-33120 LOUVER, COWL TOP VENTILATOR, CENTER 2
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
90178-06006 standard —
90467-06155 standard —

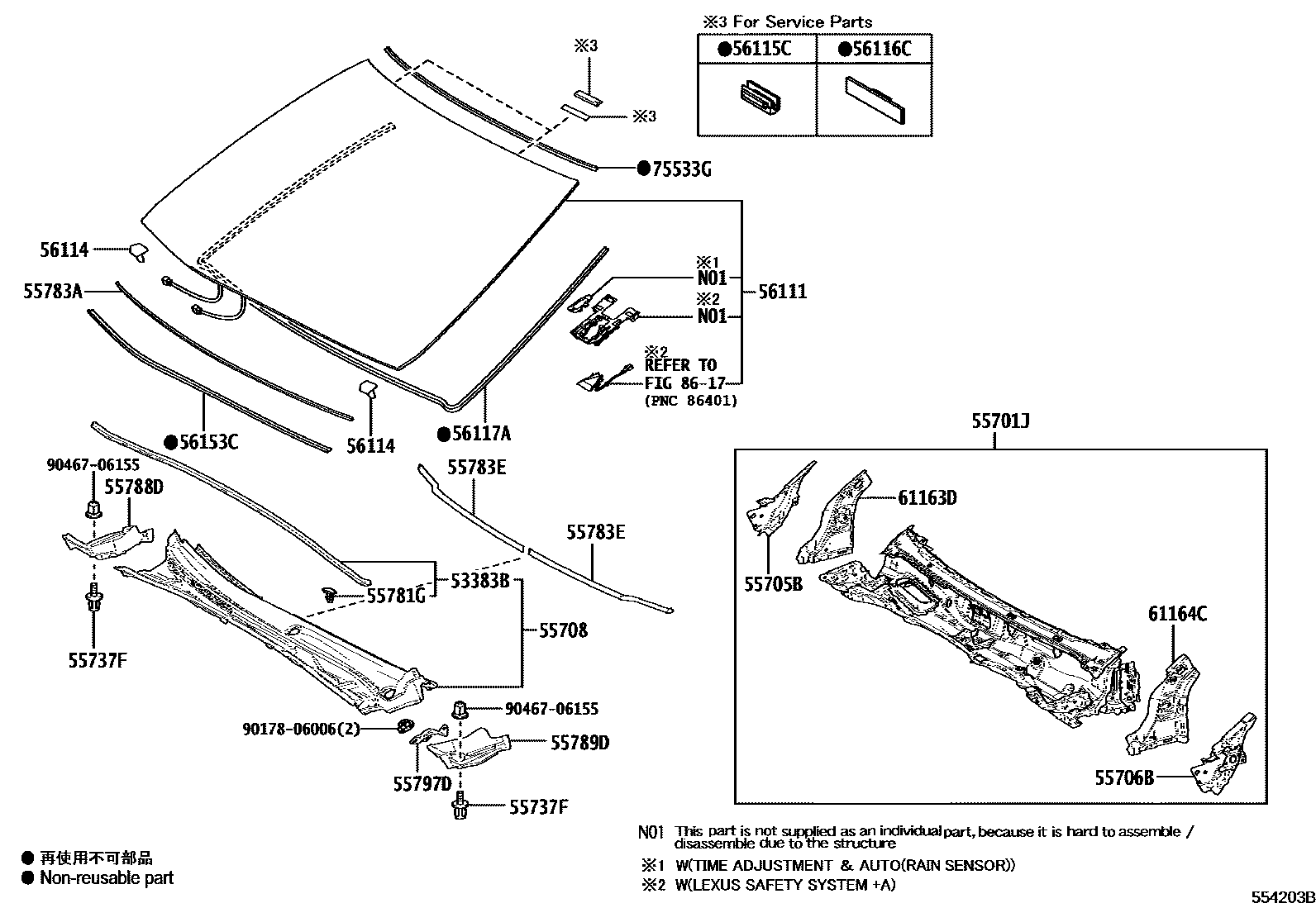

Diagram

23 parts
Lexus ES350-300H-2 2022 — Cowl Panel & Windshield Glass
