Open RegionYearModelModelCode Details
Europe 2022 ES350 300H 2 AXZH10L-AEXGBW
Catalog: LEXUS202608 Engine: 2500CC 16-VALVE DOHC Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Body Description: SEDAN Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: EUROPE Doors Description: 4-DOOR Color Code: 1L1 Trim Code: LC01 Production: 201807-202108 Model Short: AXZH10L-AEXGBW Region: EU Native Region: EU

Lexus ES350-300H-2 2022 — Front Spring & Shock Absorber

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
48559-33020 COVER, FRONT SHOCK ABSORBER DUST, RH NO.1 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
48559-33020 COVER, FRONT SHOCK ABSORBER DUST, LH NO.1 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
48157-33090 INSULATOR, FRONT COIL SPRING, UPPER RH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
48157-33090 INSULATOR, FRONT COIL SPRING, UPPER LH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
48619-33010 BEARING, STRUT MOUNTING, RH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
48619-33010 BEARING, STRUT MOUNTING, LH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
48131-33D60 SPRING, FRONT COIL, RH 1
Note:AXZA10,AXZH10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
48131-33D60 SPRING, FRONT COIL, LH 1
Note:AXZA10,AXZH10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
48158-33110 INSULATOR, FRONT COIL SPRING, LOWER RH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
48158-33110 INSULATOR, FRONT COIL SPRING, LOWER LH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
48331-33101 BUMPER, FRONT SPRING, RH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2022-07 – 2025-12
48331-33101 BUMPER, FRONT SPRING, LH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2022-07 – 2025-12
48510-80A48 ABSORBER ASSY, SHOCK, FRONT RH 1
Note:AXZH10..EUR Production:2021-08 – 2023-01 Spec:MARK 48510-33870
48520-80606 ABSORBER ASSY, SHOCK, FRONT LH 1
Note:AXZH10..EUR Production:2021-08 – 2023-01 Spec:MARK 48520-33830
48609-33290 SUPPORT SUB-ASSY, FRONT SUSPENSION, RH 1
Note:AXZH10,GSZ10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
90178-10029 NUT(FOR FRONT SUSPENSION SUPPORT) 6
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
90177-14007 NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
48609-33290 SUPPORT SUB-ASSY, FRONT SUSPENSION, LH 1
Note:AXZH10,GSZ10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
48684-33030 COVER, FRONT SUSPENSION SUPPORT DUST, RH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
48684-33030 COVER, FRONT SUSPENSION SUPPORT DUST, LH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
90177-14007 NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
48820-33090 LINK ASSY, FRONT STABILIZER, LH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
48811-33210 BAR, STABILIZER, FRONT 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
48815-33190 BUSH, FRONT STABILIZER BAR, NO.1 2
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
94151-21241 NUT(FOR FRONT STABILIZER LINK) 4
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
48553-52030 CAP 2
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
48820-33090 LINK ASSY, FRONT STABILIZER, RH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
48824-33070 BRACKET, FRONT STABILIZER, NO.1 RH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
48824-33070 BRACKET, FRONT STABILIZER, NO.1 LH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
90119-10994 standard —

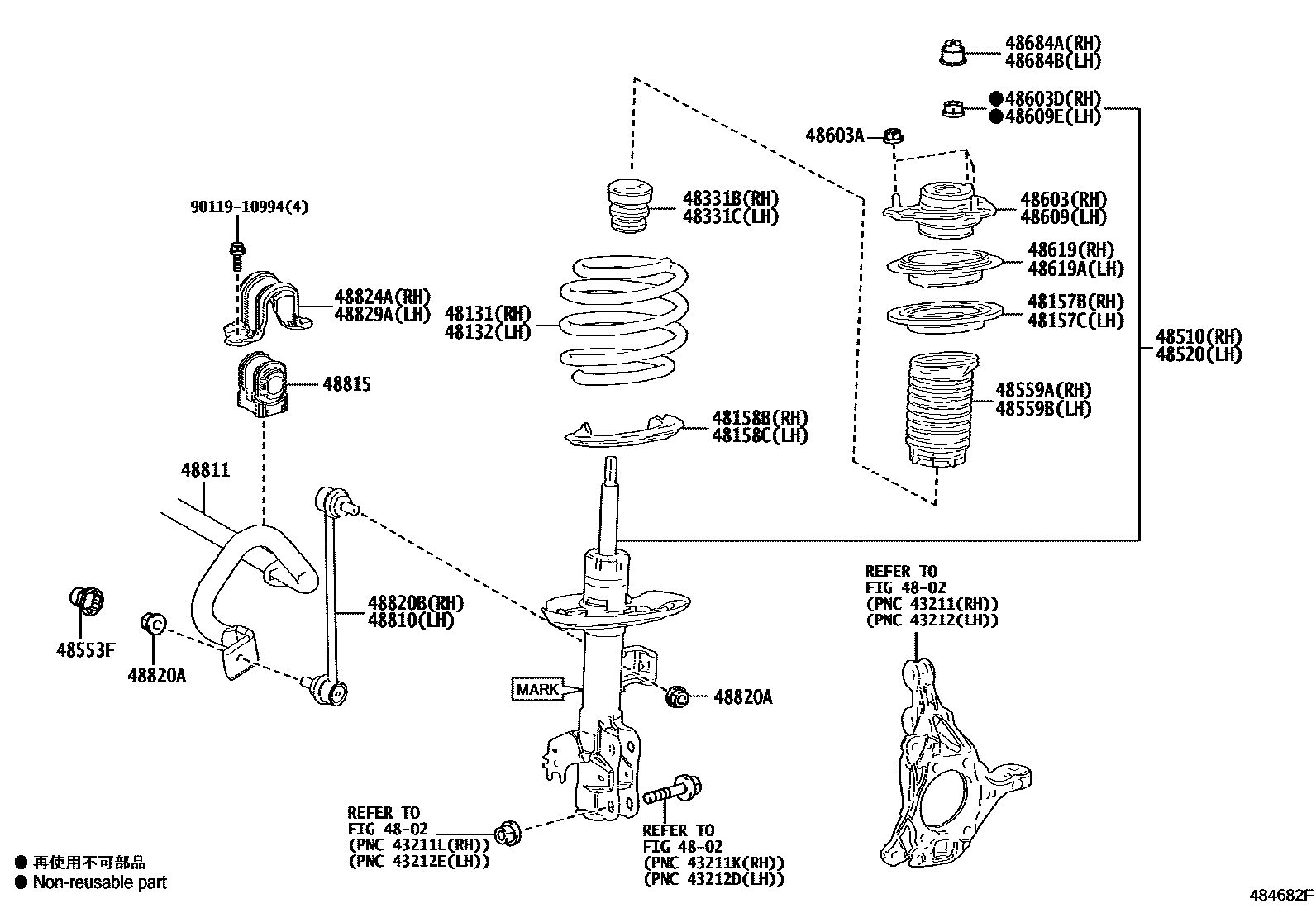

Diagram

30 parts
Lexus ES350-300H-2 2022 — Front Spring & Shock Absorber
