Open RegionYearModelModelCode Details
Europe 2022 ES350 300H 2 AXZH10L-AEXGBW
Catalog: LEXUS202608 Engine: 2500CC 16-VALVE DOHC Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Body Description: SEDAN Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: EUROPE Doors Description: 4-DOOR Color Code: 1L1 Trim Code: LC01 Production: 201807-202108 Model Short: AXZH10L-AEXGBW Region: EU Native Region: EU

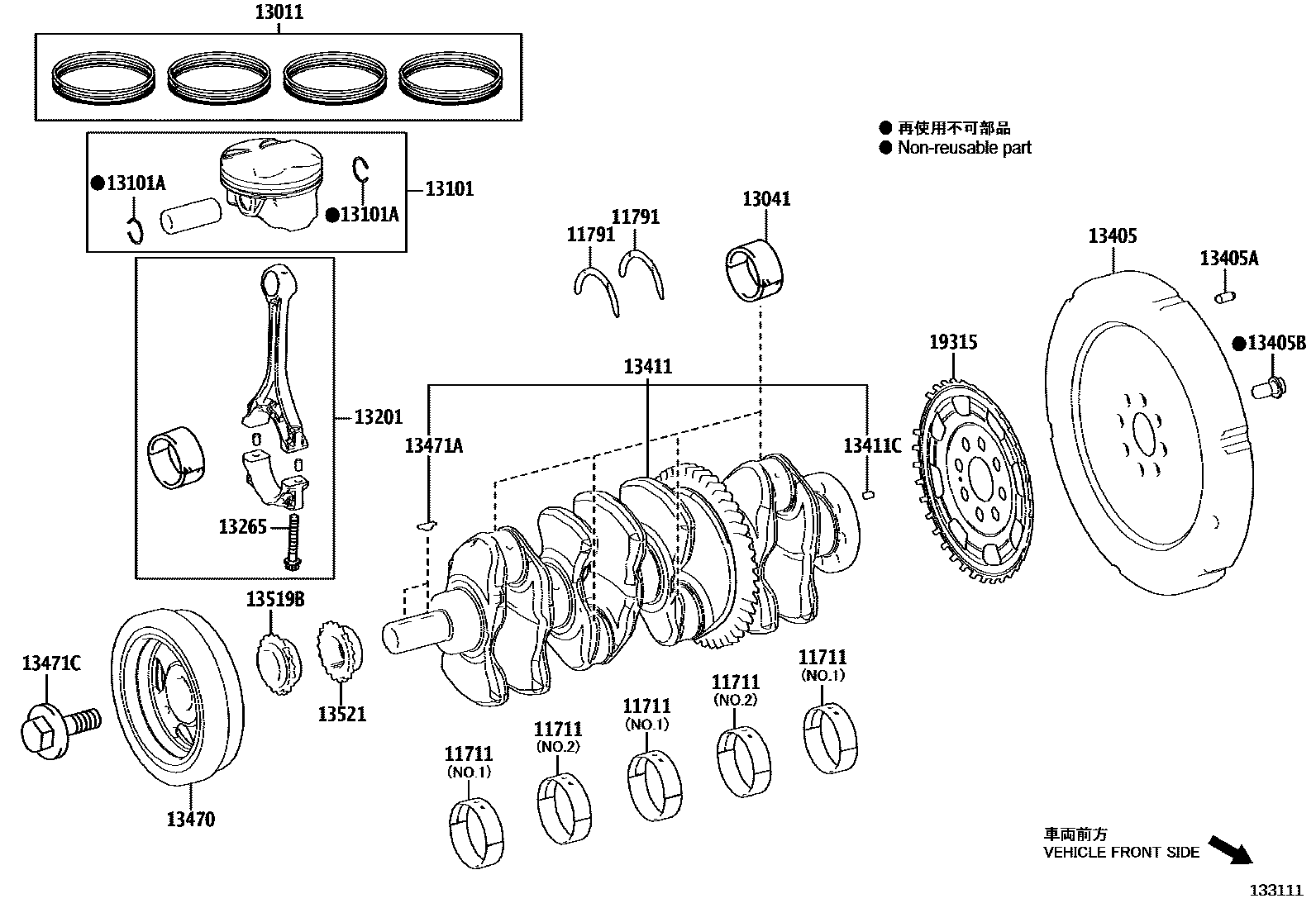

Lexus ES350-300H-2 2022 — Crankshaft & Piston

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
13011-25080 RING SET, PISTON 1
Note:A25AFKS,A25AFXS..AXZA10,AXZH10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 Spec:STD
90520-21024 RING, HOLE SNAP(FOR PISTON PIN) 8
Note:A25AFKS,A25AFXS..AXZA10,AXZH10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
13265-25020 BOLT, CONNECTING ROD 8
Note:A25AFKS,A25AFXS..AXZA10,AXZH10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
13451-25030 FLYWHEEL SUB-ASSY 1
Note:A25AFXS..AXZH10 Production:2021-08 – 2025-12
90250-08120 PIN, STRAIGHT(FOR FLYWHEEL) 3
Note:A25AFXS..AXZH10 Production:2021-08 – 2025-12 Spec:L=18,OD=8
90105-12404 BOLT, FLYWHEEL SETTING 8
Note:A25AFXS..AXZH10 Production:2021-08 – 2025-12
13470-25020 PULLEY ASSY, CRANKSHAFT 1
Note:A25AFXS..AXZH10 Production:2021-08 – 2025-12
90119-16020 BOLT(FOR CRANKSHAFT PULLEY SET) 1
Note:A25AFKS,A25AFXS..AXZA10,AXZH10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
13519-25010 SPROCKET, OIL PUMP DRIVE 1
Note:A25AFKS,A25AFXS..AXZA10,AXZH10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
13521-25010 GEAR OR SPROCKET, CRANKSHAFT TIMING 1
Note:A25AFKS,A25AFXS..AXZA10,AXZH10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
19315-25011 PLATE, CRANK ANGLE SENSOR, NO.1 1
Note:A25AFKS,A25AFXS..AXZA10,AXZH10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
13101-25040 PISTON SUB-ASSY, W/PIN 4
Note:A25AFXS..AXZH10 Production:2021-08 – 2025-12 Spec:STD
13201-29815-A0 ROD SUB-ASSY, CONNECTING 4
Note:A25AFKS,A25AFXS..AXZA10,AXZH10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 Spec:MARK A,REFER REPAIR MANUAL
13201-29815-B0 ROD SUB-ASSY, CONNECTING 4
Note:A25AFKS,A25AFXS..AXZA10,AXZH10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 Spec:MARK B,REFER REPAIR MANUAL
13201-29815-C0 ROD SUB-ASSY, CONNECTING 4
Note:A25AFKS,A25AFXS..AXZA10,AXZH10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 Spec:MARK C,REFER REPAIR MANUAL
11701-25010-01 BEARING, CRANKSHAFT 5
Note:A25AFKS,A25AFXS..AXZA10,AXZH10..ARL,EUR,GCC,GEN Production:2021-11 – 2025-12 Spec:MARK 1,NO.1 & NO.2,REF. R/M
11701-25010-02 BEARING, CRANKSHAFT 5
Note:A25AFKS,A25AFXS..AXZA10,AXZH10..ARL,EUR,GCC,GEN Production:2021-11 – 2025-12 Spec:MARK 2,NO.1 & NO.2,REF. R/M
11701-25010-03 BEARING, CRANKSHAFT 5
Note:A25AFKS,A25AFXS..AXZA10,AXZH10..ARL,EUR,GCC,GEN Production:2021-11 – 2025-12 Spec:MARK 3,NO.1 & NO.2,REF. R/M
11701-25010-04 BEARING, CRANKSHAFT 5
Note:A25AFKS,A25AFXS..AXZA10,AXZH10..ARL,EUR,GCC,GEN Production:2021-11 – 2025-12 Spec:MARK 4,NO.1 & NO.2,REF. R/M
11701-25010-05 BEARING, CRANKSHAFT 5
Note:A25AFKS,A25AFXS..AXZA10,AXZH10..ARL,EUR,GCC,GEN Production:2021-11 – 2025-12 Spec:MARK 5,NO.1 & NO.2,REF. R/M
11791-25040 WASHER, CRANKSHAFT THRUST, UPPER 2
Note:A25AFKS,A25AFXS..AXZA10,AXZH10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 Spec:STD
13401-25010 CRANKSHAFT 1
Note:A25AFKS,A25AFXS..AXZA10,AXZH10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
90250-06035 PIN, STRAIGHT(FOR CRANKSHAFT) 1
Note:A25AFKS,A25AFXS..AXZA10,AXZH10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
90280-04001 KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) 2
Note:A25AFKS,A25AFXS..AXZA10,AXZH10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
13041-25020-01 BEARING, CONNECTING ROD 4
Note:A25AFKS,A25AFXS..AXZA10,AXZH10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 Spec:MARK 1,REFER REPAIR MANUAL
13041-25020-02 BEARING, CONNECTING ROD 4
Note:A25AFKS,A25AFXS..AXZA10,AXZH10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 Spec:MARK 2,REFER REPAIR MANUAL
13041-25020-03 BEARING, CONNECTING ROD 4
Note:A25AFKS,A25AFXS..AXZA10,AXZH10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 Spec:MARK 3,REFER REPAIR MANUAL

Diagram

27 parts
