Lexus ES350-300H-2 2022 — Manifold
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 12613-25020 | COVER, ENGINE, NO.1 | 1 | |
Note:A25AFXS..AXZH10 Production:2021-08 – 2025-12 | |||
| 17120-25020 | MANIFOLD, INTAKE | 1 | |
Note:A25AFXS..AXZH10 Production:2021-08 – 2025-12 | |||
| 17171-25010 | GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | 1 | |
Note:A25AFKS,A25AFXS..AXZA10,AXZH10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 17118-25030 | STAY, MANIFOLD | 1 | |
Note:A25AFKS,A25AFXS..AXZA10,AXZH10..ARL,EUR,GCC,GEN Production:2022-08 – 2025-12 | |||
| 90126-08052 | BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | 7 | |
Note:A25AFKS,A25AFXS..AXZA10,AXZH10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 17167-25030 | INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | 1 | |
Note:A25AFXS..AXZH10..EUR Production:2021-08 – 2025-12 | |||
| 17168-25040 | INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | 1 | |
Note:A25AFKS,A25AFXS..AXZA10,AXZH10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 17173-25020 | GASKET, EXHAUST MANIFOLD TO HEAD | 1 | |
Note:A25AFKS,A25AFXS..AXZA10,AXZH10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 17141-25580 | MANIFOLD, EXHAUST | 1 | |
Note:A25AFXS..AXZH10..EUR Production:2022-08 – 2025-12 Spec:*114=TOYOTA/25580/Y Spec Note:*114(CATALYST MAKE/CATALYSTID/ONBOARD DIAGNOSIS:YES OR NO(THIS INDICATION COMPLIES WITH EC DIRECTIVE.))=TOYOTA/25580/Y Rev.ref.no From:0073 Serial Ranges:Other: From 0003016 · AXZH10 · · 00730030 Serial Ranges:Other: From 2182467 · AXZH10 · · 00730040 Serial Ranges:Other: From 2604417 · AXZH10 · · 00730050 | |||
| 90467-08155 | standard | — | |
| 91671-80835 | standard | — | |
| 90177-08003 | standard | — | |
| 91551-80614 | standard | — | |
| 91673-81025 | standard | — | |
| 90178-10029 | standard | — | |
| 90126-10033 | standard | — | |

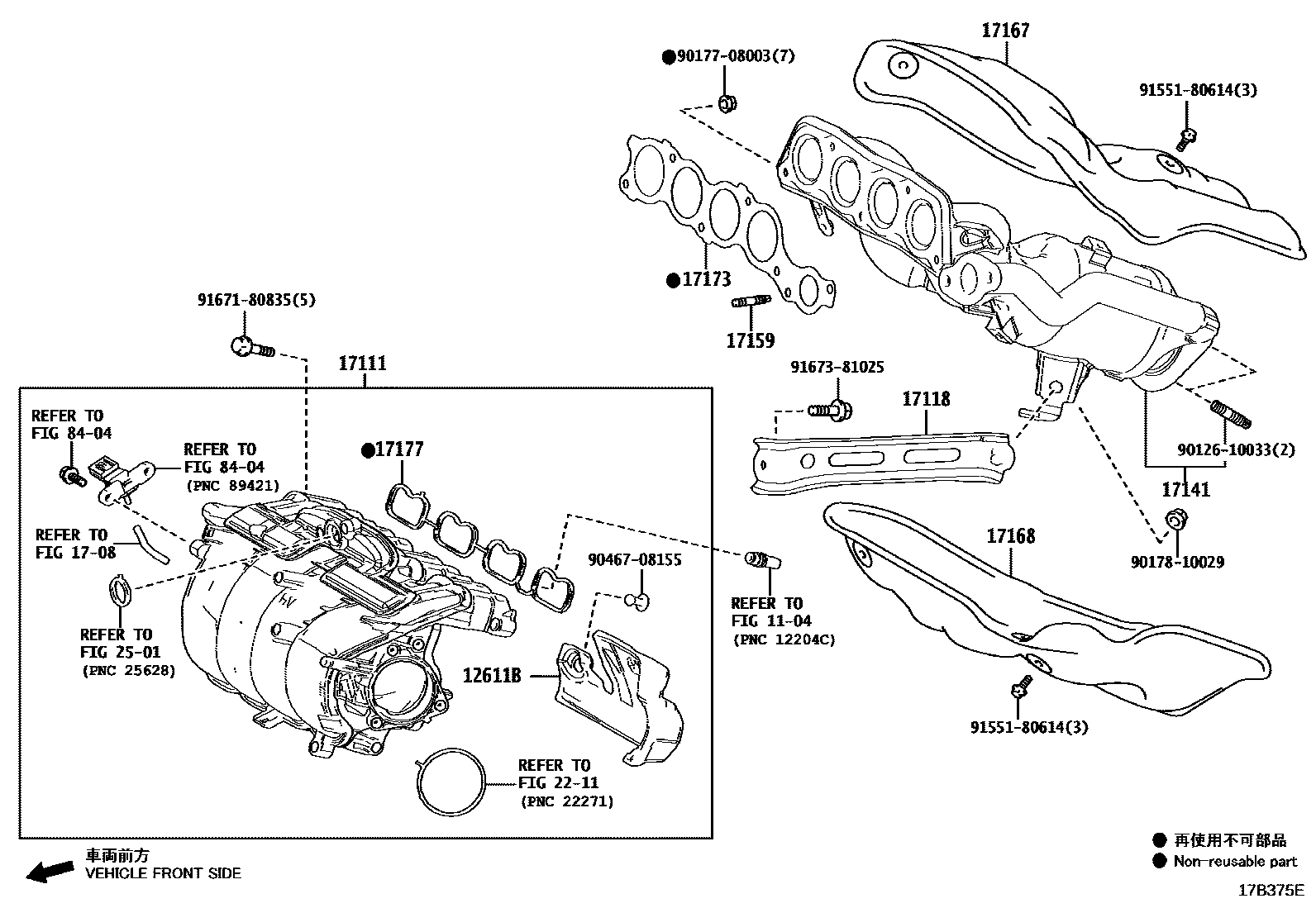

Diagram
16 parts
