Lexus ES350-300H-2 2022 — Mounting
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 12318-25020 | STAY, ENGINE MOUNTING, LH | 1 | |
Note:A25AFXS..AXZH10 Production:2021-08 – 2025-12 | |||
| 12303-25041 | BRACKET SUB-ASSY, ENGINE MOUNTING, REAR | 1 | |
Note:A25AFXS..AXZH10 Production:2021-08 – 2025-12 | |||
| 12305-25020 | INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | 1 | |
Note:A25AFXS..AXZH10 Production:2021-08 – 2025-12 | |||
| 12311-25080 | BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | 1 | |
Note:A25AFXS..AXZH10 Production:2021-08 – 2025-12 | |||
| 12341-25010 | SPACER, ENGINE MOUNTING | 1 | |
Note:A25AFKS,A25AFXS..AXZA10,AXZH10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 12361-25050 | INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | 1 | |
Note:A25AFXS..AXZH10 Production:2021-08 – 2025-12 | |||
| 12371-25020 | INSULATOR, ENGINE MOUNTING, REAR | 1 | |
Note:A25AFXS..AXZH10 Production:2021-08 – 2025-12 | |||
| 12315-25031 | BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | 1 | |
Note:A25AFKS,A25AFXS..AXZA10,AXZH10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 12306-25010 | INSULATOR SUB-ASSY, ENGINE MOUNTING, LH | 1 | |
Note:A25AFXS..AXZH10 Production:2021-08 – 2025-12 | |||
| 12281-25030 | HANGER, ENGINE, NO.1 | 1 | |
Note:A25AFKS,A25AFXS..AXZA10,AXZH10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 23825-25030 | GUARD, FUEL DELIVERY | 1 | |
Note:A25AFKS,A25AFXS..AXZA10,AXZH10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 90119-06A16 | standard | — | |
| 90119-10999 | standard | — | |
| 91672-N1035 | standard | — | |
| 90178-12027 | standard | — | |
| 91677-N1235 | standard | — | |
| 91672-N1255 | standard | — | |
| 90178-10039 | standard | — | |
| 91552-F1090 | standard | — | |
| 91552-F1040 | standard | — | |
| 91553-G1040 | standard | — | |
| 90109-06385 | standard | — | |

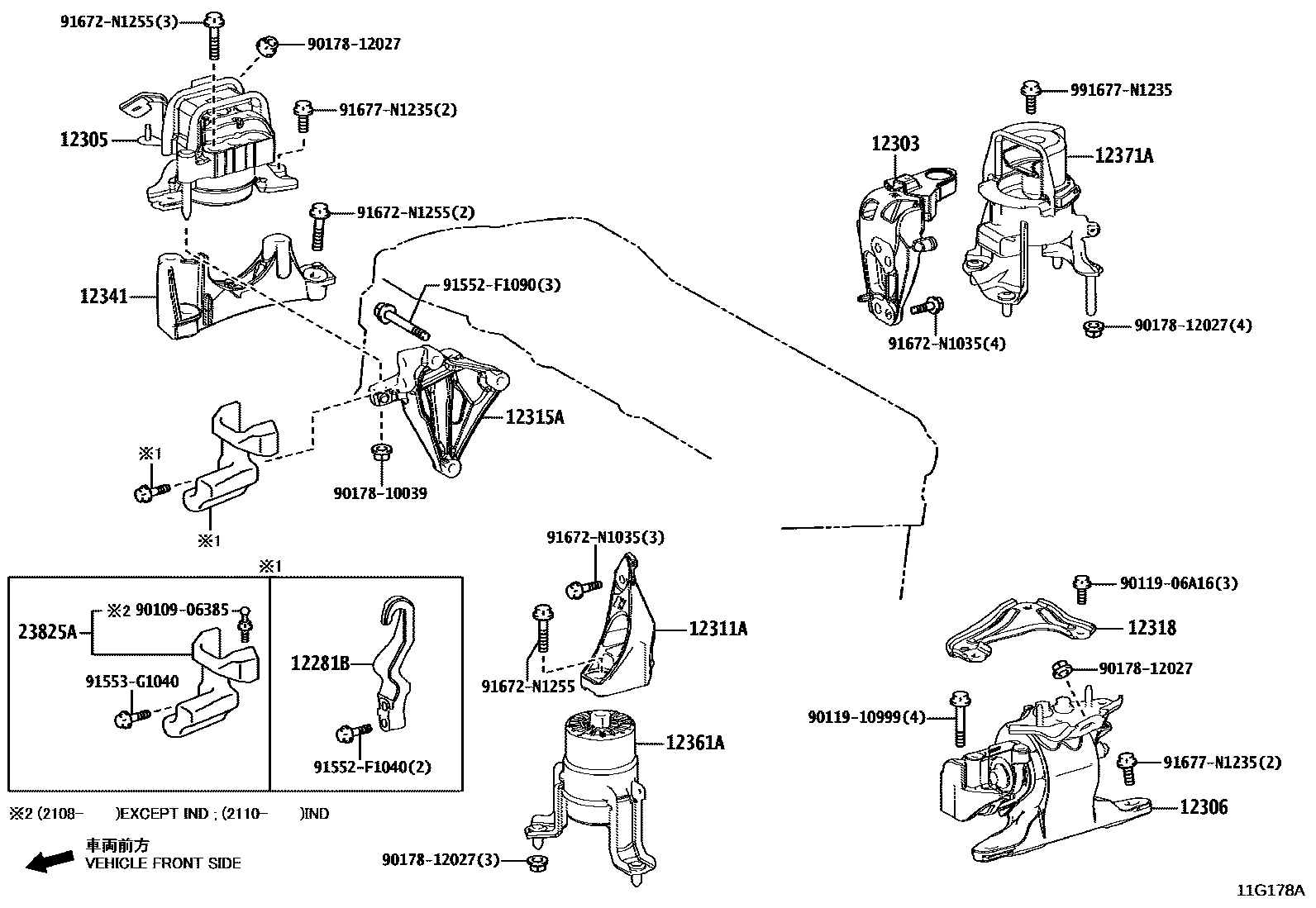

Diagram
22 parts
