Open RegionYearModelModelCode Details
General 2022 ES350 300H 2 AXZH10L-AEXGBW
Catalog: LEXUS202608 Engine: 2500CC 16-VALVE DOHC Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Body Description: SEDAN Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: EUROPE Doors Description: 4-DOOR Color Code: 1L1 Trim Code: LC01 Production: 201807-202108 Model Short: AXZH10L-AEXGBW Region: OTHER Native Region: GR

Lexus ES350-300H-2 2022 — Rear Combination Lamp

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
81498-33030 COVER, REAR COMBINATION LAMP, LH 1
Note:AXZA10,GSZ10;AXZH10,MXZA10..ARL,EUR,GCC,GEN,IND Production:2021-08 – …
81497-33030 COVER, REAR COMBINATION LAMP, RH 1
Note:AXZA10,GSZ10;AXZH10,MXZA10..ARL,EUR,GCC,GEN,IND Production:2021-08 – …
81496-52020 GUIDE, REAR COMBINATION LAMP 2
Note:AXZA10,GSZ10;AXZH10,MXZA10..ARL,EUR,GCC,GEN,IND Production:2021-08 – …
81496-60010 GUIDE, REAR COMBINATION LAMP, NO.2 2
Note:AXZA10,GSZ10;AXZH10,MXZA10..ARL,EUR,GCC,GEN,IND Production:2021-08 – …
76817-26040 CLIP, REAR LAMP 2
Note:AXZA10,GSZ10;AXZH10,MXZA10..ARL,EUR,GCC,GEN,IND Production:2021-08 – …
52563-33050 RETAINER, REAR BUMPER, UPPER LH 1
Note:AXZA10,GSZ10;AXZH10,MXZA10..ARL,EUR,GCC,GEN,IND Production:2021-08 – …
52562-33070 RETAINER, REAR BUMPER, UPPER RH 1
Note:AXZA10,GSZ10;AXZH10,MXZA10..ARL,EUR,GCC,GEN,IND Production:2021-08 – …
81560-33592 LAMP ASSY, REAR COMBINATION, LH 1
Note:AXZH10..ARL,EUR,GCC,GEN,IND;AXZA10,GSZ10..ARL,CHI,GCC,GEN Production:2021-08 – …
81550-33592 LAMP ASSY, REAR COMBINATION, RH 1
Note:AXZH10..ARL,EUR,GCC,GEN,IND;AXZA10,GSZ10..ARL,CHI,GCC,GEN Production:2021-08 – …
81558-24040 PROTECTOR, REAR COMBINATION LAMP, LH 1
Note:AXZA10,GSZ10;AXZH10,MXZA10..ARL,EUR,GCC,GEN,IND Production:2021-08 – …
81558-24040 PROTECTOR, REAR COMBINATION LAMP, RH 1
Note:AXZA10,GSZ10;AXZH10,MXZA10..ARL,EUR,GCC,GEN,IND Production:2021-08 – …
81590-33472 LAMP ASSY, REAR, LH 1
Note:AXZA10,GSZ10..CHI,EUR,GCC,GEN;AXZH10,MXZA10..EUR,GCC,GEN,IND Production:2021-08 – …
81580-33472 LAMP ASSY, REAR, RH 1
Note:AXZA10,GSZ10..CHI,EUR,GCC,GEN;AXZH10,MXZA10..EUR,GCC,GEN,IND Production:2021-08 – …
81594-33470 GASKET, REAR LAMP LH 1
Note:AXZA10,GSZ10;AXZH10,MXZA10..ARL,EUR,GCC,GEN,IND Production:2021-08 – …
81584-33470 GASKET, REAR LAMP RH 1
Note:AXZA10,GSZ10;AXZH10,MXZA10..ARL,EUR,GCC,GEN,IND Production:2021-08 – …
90179-05102 standard —
90176-05023 standard —
90159-60621 standard —
90189-06242 standard —

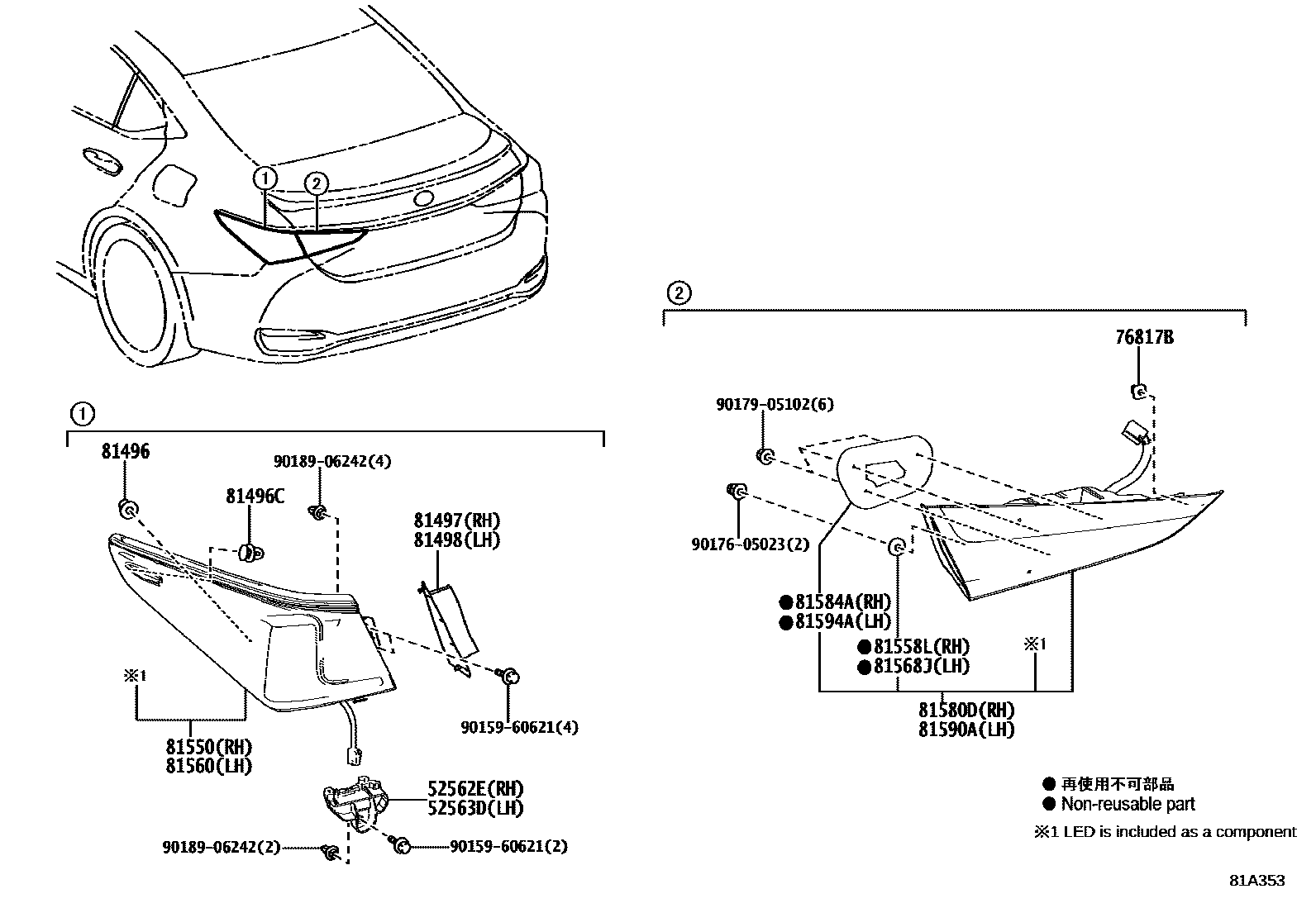

Diagram

19 parts
Lexus ES350-300H-2 2022 — Rear Combination Lamp
