Open RegionYearModelModelCode Details
General 2022 ES350 300H 2 AXZH10L-AEXGBW
Catalog: LEXUS202608 Engine: 2500CC 16-VALVE DOHC Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Body Description: SEDAN Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: EUROPE Doors Description: 4-DOOR Color Code: 1L1 Trim Code: LC01 Production: 201807-202108 Model Short: AXZH10L-AEXGBW Region: OTHER Native Region: GR

Lexus ES350-300H-2 2022 — Manifold

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
12613-25020 COVER, ENGINE, NO.1 1
Note:A25AFXS,A25BFXS..AXZH10 Production:2021-08 – …
17120-25020 MANIFOLD, INTAKE 1
Note:A25AFXS,A25BFXS..AXZH10 Production:2021-08 – …
17171-25010 GASKET, INTAKE MANIFOLD TO HEAD, NO.1 1
Note:A25#..AXZA10,AXZH10 Production:2021-08 – …
17118-25030 STAY, MANIFOLD 1
Note:A25#..AXZA10,AXZH10 Production:2022-08 – …
90126-08052 BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) 7
Note:A25#..AXZA10,AXZH10 Production:2021-08 – …
17167-25030 INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 1
Note:A25AFXS..AXZH10..EUR Production:2021-08 – …
17168-25040 INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 1
Note:A25#..AXZA10,AXZH10 Production:2021-08 – …
17173-25020 GASKET, EXHAUST MANIFOLD TO HEAD 1
Note:A25#..AXZA10,AXZH10 Production:2021-08 – …
17141-25580 MANIFOLD, EXHAUST 1
Note:A25AFXS..AXZH10..EUR Production:2022-08 – … Spec:*114=TOYOTA/25580/Y Spec Note:*114(CATALYST MAKE/CATALYSTID/ONBOARD DIAGNOSIS:YES OR NO(THIS INDICATION COMPLIES WITH EC DIRECTIVE.))=TOYOTA/25580/Y Rev.ref.no From:0073 Serial Ranges:Other: From 2182467 · AXZH10 · · 00730030 Serial Ranges:Other: From 2604417 · AXZH10 · · 00730040
90467-08155 standard —
91671-80835 standard —
90177-08003 standard —
91551-80614 standard —
91673-81025 standard —
90178-10029 standard —
90126-10033 standard —

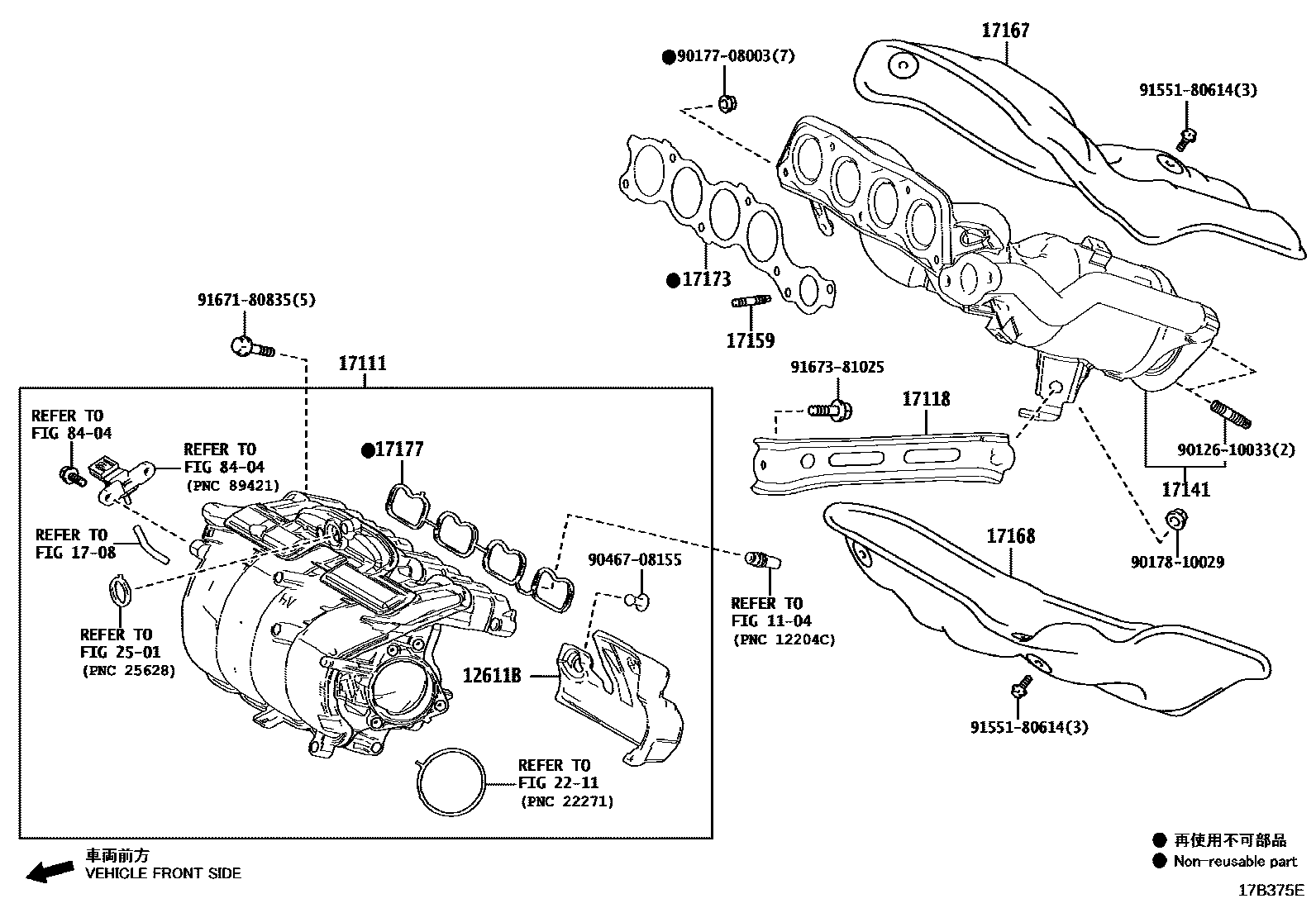

Diagram

16 parts
Lexus ES350-300H-2 2022 — Manifold
