Lexus IS250-300 2010 — Rear Combination Lamp
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 81496-53010 | GUIDE, REAR COMBINATION LAMP | 2 | |
Note:GSE2# Production:2010-08 – … Spec:NO.2 | |||
| 81496-60010 | GUIDE, REAR COMBINATION LAMP | 2 | |
Note:GSE2# Production:2010-08 – … Spec:NO.1 | |||
| 81585-53090 | SOCKET & WIRE, REAR LAMP | 2 | |
Note:GSE2# Production:2010-08 – … | |||
| 90981-11059 | BULB, BACK UP LAMP | 2 | |
Note:GSE2# Production:2010-08 – 2013-04 | |||
| — | Part does not apply to this vehicle configuration. | 81550Q | — |
| 81584-53080 | PACKING, REAR LAMP RH | 1 | |
Note:GSE2# Production:2010-08 – … | |||
| 81594-53080 | GASKET, REAR LAMP LH | 1 | |
Note:GSE2# Production:2010-08 – … | |||
| 81584-22040 | GASKET, REAR LAMP | 6 | |
Note:GSE2# Production:2010-08 – … | |||
| 81581-53130 | LENS AND BODY, REAR LAMP, RH | 1 | |
Note:GSE2# Production:2010-08 – … | |||
| 81591-53130 | LENS, REAR LAMP, LH | 1 | |
Note:GSE2# Production:2010-08 – … | |||
| 81555-53250 | SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | 1 | |
Note:GSE2# Production:2010-08 – … | |||
| 90981-15011 | BULB, REAR TURN SIGNAL LAMP | 2 | |
Note:GSE2# Production:2010-08 – 2013-04 | |||
| 81551-53250 | LENS & BODY, REAR COMBINATION LAMP, RH | 1 | |
Note:GSE2# Production:2010-08 – … | |||
| 81561-53250 | LENS & BODY, REAR COMBINATION LAMP, LH | 1 | |
Note:GSE2# Production:2010-08 – … | |||
| 81554-53210 | GASKET, REAR COMBINATION LAMP BODY, RH | 1 | |
Note:GSE2# Production:2010-08 – … | |||
| 81564-53210 | GASKET, REAR COMBINATION LAMP BODY, LH | 1 | |
Note:GSE2# Production:2010-08 – … | |||
| 81555-53250 | SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | 1 | |
Note:GSE2# Production:2010-08 – … | |||
| 90179-05030 | standard | — | |
| 90179-05011 | standard | — | |
| 90176-05018 | standard | — | |

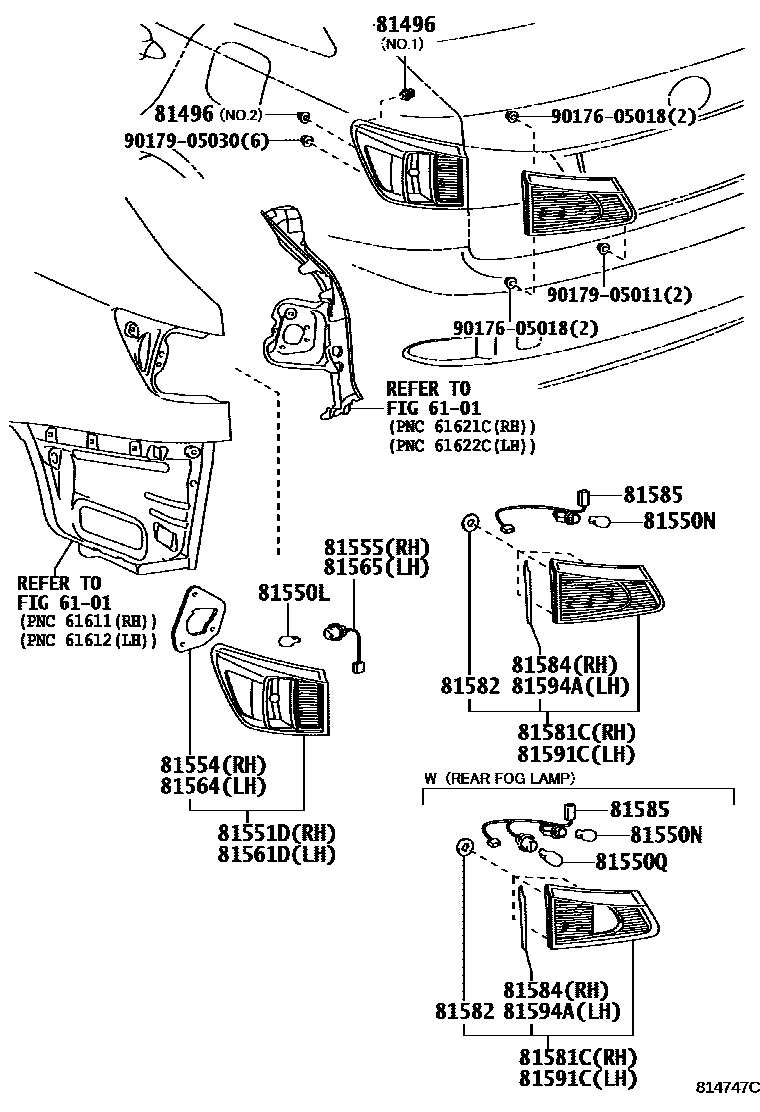

Diagram
19 parts
