Open RegionYearModelModelCode Details
General 2010 IS250 300 GSE22L-AETLKV
Catalog: LEXUS202608 Engine: 3000CC 24-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION Body Description: SEDAN Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GULF CORPORATION COUNCIL Color Code: 212 Trim Code: LA00 Production: 200607-200808 Model Short: GSE22L-AETLKV Region: OTHER Native Region: GR

Lexus IS250-300 2010 — Crankshaft & Piston

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
13101-31080-A0 PISTON SUB-ASSY, W/PIN 3
Note:3GRFE..GSE22 Production:2010-08 – 2013-04 Spec:STD,MARK A,REFER REPAIR MANUAL
13101-31080-B0 PISTON SUB-ASSY, W/PIN 3
Note:3GRFE..GSE22 Production:2010-08 – 2013-04 Spec:STD,MARK B,REFER REPAIR MANUAL
13101-31080-C0 PISTON SUB-ASSY, W/PIN 3
Note:3GRFE..GSE22 Production:2010-08 – 2013-04 Spec:STD,MARK C,REFER REPAIR MANUAL
13301-31050-A0 PISTON SUB-ASSY, W/PIN, LH 3
Note:3GRFE..GSE22 Production:2010-08 – 2013-04 Spec:STD,MARK A,REFER REPAIR MANUAL
13301-31050-B0 PISTON SUB-ASSY, W/PIN, LH 3
Note:3GRFE..GSE22 Production:2010-08 – 2013-04 Spec:STD,MARK B,REFER REPAIR MANUAL
13301-31050-C0 PISTON SUB-ASSY, W/PIN, LH 3
Note:3GRFE..GSE22 Production:2010-08 – 2013-04 Spec:STD,MARK C,REFER REPAIR MANUAL
13470-31021 PULLEY, CRANKSHAFT 1
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … Replacements:13470-31022 (fitment: unknown)
90119-16004 BOLT(FOR CRANKSHAFT PULLEY SET) 1
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – …
13521-31041 GEAR OR SPROCKET, CRANKSHAFT TIMING 1
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – …
13401-31020 CRANKSHAFT 1
Note:3GRFE..GSE22 Production:2010-08 – … Replacements:13401-31021 (fitment: unknown)
13011-31180 RING SET, PISTON 1
Note:3GRFE..GSE22 Production:2010-08 – 2013-04 Replacements:13011-31181 (fitment: unknown) Spec:STD
11011-31060 WASHER SET, CRANKSHAFT THRUST 1
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … Replacements:11011-31080 (fitment: unknown) Spec:STD
13041-31051-01 BEARING, CONNECTING ROD 6
Note:3GRFE..GSE22 Production:2010-08 – … Replacements:13041-31100-01 (fitment: unknown) Spec:MARK1
13041-31051-02 BEARING, CONNECTING ROD 6
Note:3GRFE..GSE22 Production:2010-08 – … Replacements:13041-31100-02 (fitment: unknown) Spec:MARK2
13041-31051-03 BEARING, CONNECTING ROD 6
Note:3GRFE..GSE22 Production:2010-08 – … Replacements:13041-31100-03 (fitment: unknown) Spec:MARK3
13041-31051-04 BEARING, CONNECTING ROD 6
Note:3GRFE..GSE22 Production:2010-08 – … Replacements:13041-31100-04 (fitment: unknown) Spec:MARK4
11071-31031-01 BEARING, CRANKSHAFT 2
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … Replacements:11071-31060-01 (fitment: unknown) Spec:MARK1,NO.2,REFER R/M
11071-31031-02 BEARING, CRANKSHAFT 2
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … Replacements:11071-31060-02 (fitment: unknown) Spec:MARK2,NO.2,REFER R/M
11071-31031-03 BEARING, CRANKSHAFT 2
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … Replacements:11071-31060-03 (fitment: unknown) Spec:MARK3,NO.2,REFER R/M
11071-31031-04 BEARING, CRANKSHAFT 2
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … Replacements:11071-31060-04 (fitment: unknown) Spec:MARK4,NO.2,REFER R/M
11071-31031-05 BEARING, CRANKSHAFT 2
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … Replacements:11071-31060-05 (fitment: unknown) Spec:MARK5,NO.2,REFER R/M
11701-31061-01 BEARING, CRANKSHAFT 2
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … Replacements:11701-31100-01 (fitment: unknown) Spec:MARK1,NO.1,REFER R/M
11701-31061-02 BEARING, CRANKSHAFT 2
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … Replacements:11701-31100-02 (fitment: unknown) Spec:MARK2,NO.1,REFER R/M
11701-31061-03 BEARING, CRANKSHAFT 2
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … Replacements:11701-31100-03 (fitment: unknown) Spec:MARK3,NO.1,REFER R/M
11701-31061-04 BEARING, CRANKSHAFT 2
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … Replacements:11701-31100-04 (fitment: unknown) Spec:MARK4,NO.1,REFER R/M
11701-31061-05 BEARING, CRANKSHAFT 2
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … Replacements:11701-31100-05 (fitment: unknown) Spec:MARK5,NO.1,REFER R/M
13581-31030 SHAFT, IDLE GEAR, NO.1 1
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – …
13582-31031 SHAFT, IDLE GEAR, NO.2 1
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – …
13201-39066-A0 ROD SUB-ASSY, CONNECTING 6
Note:3GRFE..GSE22 Production:2010-08 – 2013-04 Replacements:13201-39137-A0 (fitment: unknown) Spec:MARK A,REFER REPAIR MANUAL
13201-39066-B0 ROD SUB-ASSY, CONNECTING 6
Note:3GRFE..GSE22 Production:2010-08 – 2013-04 Replacements:13201-39137-B0 (fitment: unknown) Spec:MARK B,REFER REPAIR MANUAL
13201-39066-C0 ROD SUB-ASSY, CONNECTING 6
Note:3GRFE..GSE22 Production:2010-08 – 2013-04 Replacements:13201-39137-C0 (fitment: unknown) Spec:MARK C,REFER REPAIR MANUAL
90520-22025 RING, HOLE SNAP(FOR PISTON PIN) 12
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – 2013-04
95161-30516 KEY(FOR CRANKSHAFT TIMING GEAR) 2
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – …
13265-28010 BOLT, CONNECTING ROD 12
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … Replacements:13265-28020 (fitment: unknown)
90999-73144 BUSH(FOR CONNECTING ROD SMALL END) 6
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – …

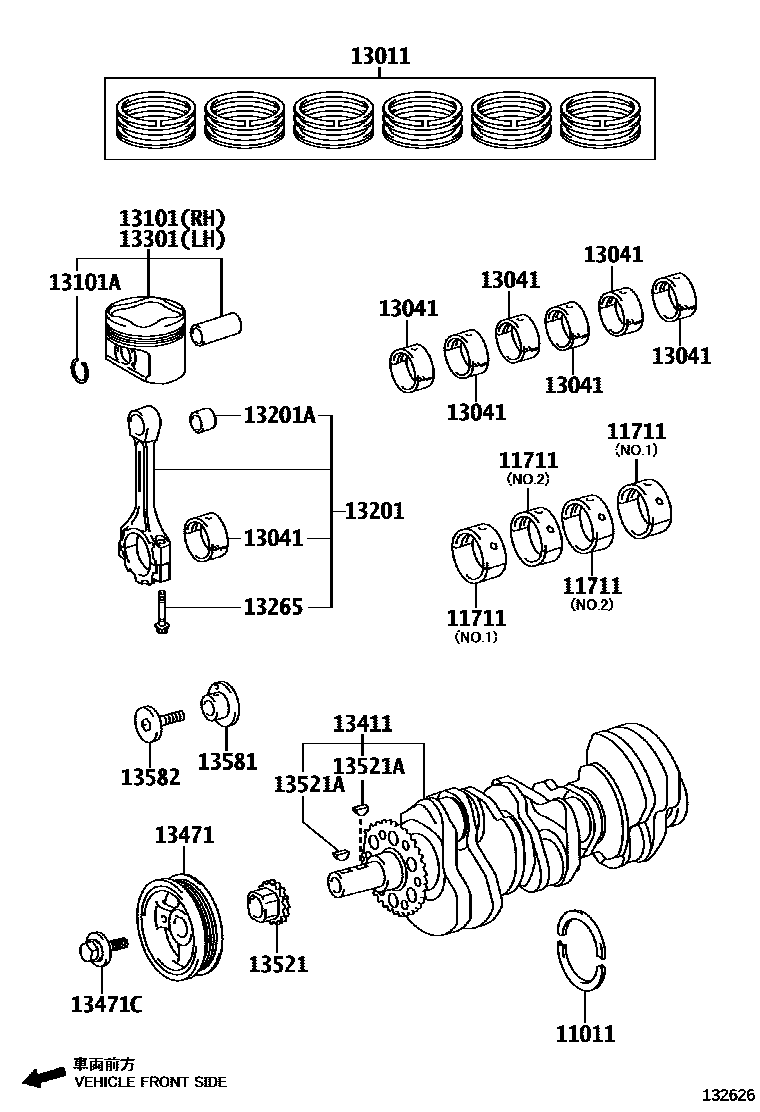

Diagram

35 parts
Lexus IS250-300 2010 — Crankshaft & Piston
