USA / Canada 2013 ES350 300H GSV60L-BETGKA
Catalog: LEXUS202608 Engine: 3500CC 24-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION Body Description: SEDAN Steering Description: LEFT-HAND DRIVE VEHICLES Doors Description: 4-DOOR Color Code: 4V3 Trim Code: LB01 Production: 201206-201507 Model Short: GSV60L-BETGKA Region: NA Native Region: US

Lexus ES350-300H 2013 — Front Fender Apron & Dash Panel

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
51465-33060 BRACE, RADIATOR SUPPORT, UPPER RH 1
Note:AVV60,GSV60 Production:2012-06 – 2015-07
51466-33070 BRACE, RADIATOR SUPPORT, UPPER LH 1
Note:AVV60,GSV60 Production:2012-06 – 2015-07
52141-33120 ARM, FRONT BUMPER, UPPER RH 1
Note:AVV60,GSV60 Production:2012-06 – 2015-07
52142-33100 ARM, FRONT BUMPER, UPPER LH 1
Note:AVV60,GSV60 Production:2012-06 – 2015-07
53174-33010 BRACKET, RADIATOR SUPPORT SIDE 1
Note:AVV60,GSV60 Production:2012-06 – 2015-07
53201-33191 SUPPORT SUB-ASSY, RADIATOR 1
Note:AVV60,GSV60 Production:2013-04 – 2015-07
53203-33160 SUPPORT SUB-ASSY, RADIATOR, LH 1
Note:AVV60,GSV60 Production:2012-06 – 2015-07
53202-33101 SUPPORT SUB-ASSY, RADIATOR, RH 1
Note:AVV60,GSV60 Production:2013-04 – 2015-07
53208-33060 SUPPORT SUB-ASSY, HOOD LOCK 1
Note:AVV60,GSV60 Production:2012-06 – 2015-07
53211-33081 SUPPORT, RADIATOR, RH 1
Note:AVV60,GSV60 Production:2012-06 – 2015-07
53212-33081 SUPPORT, RADIATOR, LH 1
Note:AVV60,GSV60 Production:2012-06 – 2015-07
53213-33061 SUPPORT, RADIATOR, UPPER RH 1
Note:AVV60,GSV60 Production:2013-04 – 2015-07
53214-33060 SUPPORT, RADIATOR, UPPER LH 1
Note:AVV60,GSV60 Production:2012-06 – 2015-07
53216-33150 SUPPORT, RADIATOR, UPPER 1
Note:AVV60,GSV60 Production:2012-06 – 2015-07
90467-07217 CLIP, RADIATOR SUPPORT TO FRAME SEAL 9
Note:AVV60,GSV60 Production:2012-09 – 2015-07
53293-33110 DEFLECTOR, RADIATOR SIDE, RH 1
Note:GSV60 Production:2012-06 – 2015-07
53294-33110 DEFLECTOR, RADIATOR SIDE, LH 1
Note:GSV60 Production:2012-06 – 2015-07
53295-33090 SEAL, COOL AIR INTAKE DUCT 1
Note:AVV60,GSV60 Production:2012-06 – 2015-07 Spec:HEAD LAMP-DISCHARGE & *DRL
90541-15033 CUSHION, HOOD BUMPER 2
Note:AVV60,GSV60 Production:2012-06 – 2015-07
53701-33180 APRON SUB-ASSY, FRONT FENDER, RH 1
Note:AVV60,GSV60 Production:2012-06 – 2015-07
53702-33140 APRON SUB-ASSY, FRONT FENDER, LH 1
Note:AVV60,GSV60 Production:2012-06 – 2015-07
53707-33010 EXTENSION SUB-ASSY, FRONT FENDER APRON, FRONT RH 1
Note:AVV60,GSV60 Production:2012-06 – 2015-07
53711-33080 APRON, FRONT FENDER, FRONT RH 1
Note:AVV60,GSV60 Production:2012-06 – 2015-07
53481-33050 BRACKET, HOOD SUPPORT, RH 1
Note:AVV60,GSV60 Production:2012-06 – 2015-07
53712-33050 APRON, FRONT FENDER, FRONT LH 1
Note:AVV60,GSV60 Production:2012-06 – 2015-07
53714-33030 EXTENSION, FRONT FENDER APRON, FRONT LH 1
Note:AVV60,GSV60 Production:2012-06 – 2015-01 Replacements:53714-33031 (fitment: unknown)
53725-33020 REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH 1
Note:AVV60,GSV60 Production:2012-06 – 2015-07
53726-33020 REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH 1
Note:AVV60,GSV60 Production:2012-06 – 2015-07
53482-33040 BRACKET, HOOD SUPPORT LH 1
Note:AVV60,GSV60 Production:2012-06 – 2015-07
53731-33090 MEMBER, FRONT APRON TO COWL SIDE, UPPER RH 1
Note:AVV60,GSV60 Production:2012-06 – 2015-07
53732-33080 MEMBER, FRONT APRON TO COWL SIDE, UPPER LH 1
Note:AVV60,GSV60 Production:2012-06 – 2015-07
53733-33050 MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH 1
Note:AVV60,GSV60 Production:2012-06 – 2015-07
53734-33050 MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH 1
Note:AVV60,GSV60 Production:2012-06 – 2015-07
53736-33040 SEAL, FRONT FENDER APRON, RH 1
Note:AVV60,GSV60 Production:2012-06 – 2015-07
90467-08180 CLIP(FOR FRONT FENDER APRON SEAL) 2
Note:AVV60,GSV60 Production:2012-06 – 2015-07
53737-33020 SEAL, FRONT FENDER APRON, LH 1
Note:AVV60,GSV60 Production:2012-06 – 2015-07
53821-33060 BRACKET, FRONT FENDER, REAR RH 1
Note:AVV60,GSV60 Production:2012-06 – 2015-07
53822-33050 BRACKET, FRONT FENDER, REAR LH 1
Note:AVV60,GSV60 Production:2012-06 – 2015-07
53823-33040 GUSSET, FRONT FENDER, RH 1
Note:AVV60,GSV60 Production:2012-06 – 2015-07
53824-33040 GUSSET, FRONT FENDER, LH 1
Note:AVV60,GSV60 Production:2012-06 – 2015-07
— Part does not apply to this vehicle configuration. 55101 —
55210-33250 INSULATOR ASSY, DASH PANEL 1
Note:GSV60 Production:2012-06 – 2015-07
90467-11127 CLIP 2
Note:AVV60,GSV60 Production:2012-06 – 2015-07
90467-13079 CLIP 2
Note:AVV60,GSV60 Production:2012-06 – 2015-07
55223-33190 INSULATOR, DASH PANEL, OUTER 1
Note:GSV60 Production:2012-06 – 2015-07 Replacements:55223-33191 (fitment: unknown)
55239-33020 PLATE, DASH PANEL INSULATOR, NO.3 2
Note:AVV60,GSV60 Production:2012-06 – 2015-07
57104-33061 MEMBER SUB-ASSY, FRONT CROSS 1
Note:AVV60,GSV60 Production:2012-06 – 2015-07 Replacements:57104-33062 (fitment: unknown)
57163-33040 REINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH 1
Note:AVV60,GSV60 Production:2012-06 – 2015-07
57164-33040 REINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH 1
Note:AVV60,GSV60 Production:2012-06 – 2015-07
57165-33021 REINFORCEMENT, FRONT CROSSMEMBER, NO.2 RH 1
Note:AVV60,GSV60 Production:2012-06 – 2015-07
57166-33031 REINFORCEMENT, FRONT CROSSMEMBER, NO.2 LH 1
Note:AVV60,GSV60 Production:2012-06 – 2015-07
90105-06137 standard —
90109-06328 standard —
90119-06680 standard —
90467-06197 standard —

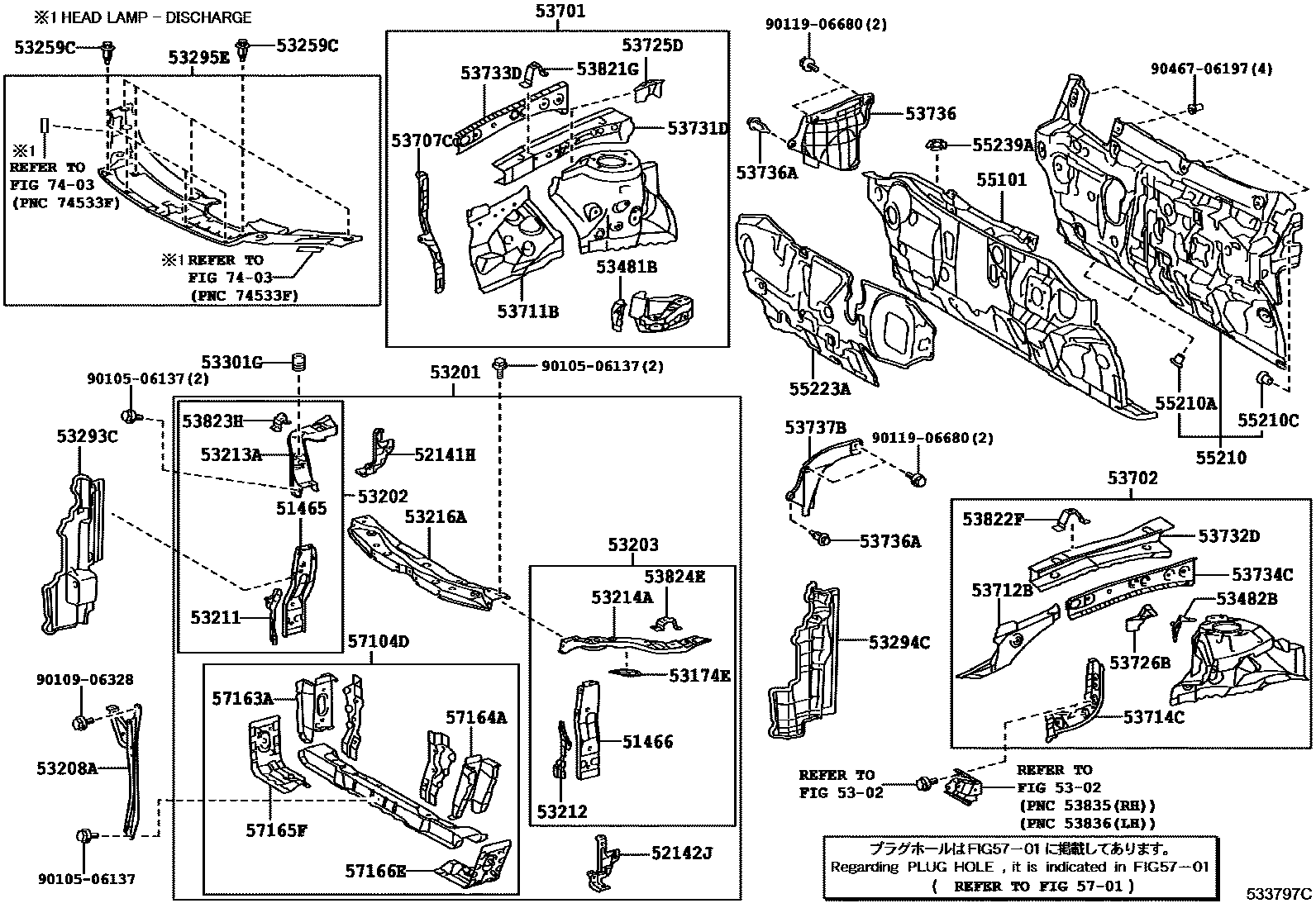

Diagram

54 parts
Lexus ES350-300H 2013 — Front Fender Apron & Dash Panel
