Lexus CT200H 2014 — Windshield Wiper
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 85212-76010 | BLADE, FR WIPER, RH | 1 | |
Note:ZWA10..ARL Production:2013-12 – 2021-08 | |||
| 85214-68020 | RUBBER, WIPER, RH | 1 | |
Note:ZWA10..ARL Production:2013-12 – 2021-08 Replacements:85214-52110 (fitment: unknown) | |||
| 85214-30400 | RUBBER, WIPER, LH | 1 | |
Note:ZWA10..ARL Production:2013-12 – 2021-08 Replacements:85214-33180 (fitment: unknown) | |||
| 85222-30590 | BLADE, FR WIPER, LH | 1 | |
Note:ZWA10..ARL Production:2013-12 – 2021-08 | |||
| 85012-58030 | CRANK SUB-ASSY, FRONT WIPER | 1 | |
Note:ZWA10..ARL Production:2013-12 – 2021-08 | |||
| 85150-76010 | LINK ASSY, WINDSHIELD WIPER | 1 | |
Note:ZWA10..ARL Production:2013-12 – 2021-08 Spec:NEW ZEALAND SPEC | |||
| 90182-10006 | NUT (FOR FRONT WIPER ARM SETTING) | 2 | |
Note:ZWA10..E;ZWA10..ARL,GCC Production:2013-12 – 2021-08 | |||
| 85211-76010 | ARM, FRONT WIPER, RH | 1 | |
Note:ZWA10..ARL Production:2013-12 – 2021-08 | |||
| 85221-76010 | ARM, FRONT WIPER, LH | 1 | |
Note:ZWA10..ARL Production:2013-12 – 2021-08 | |||
| 85292-13010 | CAP, FRONT WIPER ARM HEAD | 2 | |
Note:ZWA10..E;ZWA10..ARL,GCC Production:2013-12 – 2021-08 | |||
| 89943-76010 | COVER, RAIN SENSOR | 1 | |
Note:ZWA10..ARL Production:2013-12 – 2021-08 Spec:AUDIO-AM/FM & CD & *DA & 10SPEAKER | |||
| 89941-42010 | SENSOR, RAIN | 1 | |
Note:ZWA10..ARL Production:2013-12 – 2021-08 Spec:AUDIO-AM/FM & CD & *DA & 10SPEAKER | |||
| 89944-42010 | TAPE, RAIN SENSOR | 1 | |
Note:ZWA10..ARL Production:2013-12 – 2021-08 Spec:AUDIO-AM/FM & CD & *DA & 10SPEAKER | |||
| 85110-76010 | MOTOR ASSY, WINDSHIELD WIPER | 1 | |
Note:ZWA10..ARL Production:2013-12 – 2015-04 Replacements:85110-48230 (fitment: unknown) Spec:NEW ZEALAND SPEC | |||
| 90119-06864 | standard | — | |
| 93385-16014 | standard | — | |

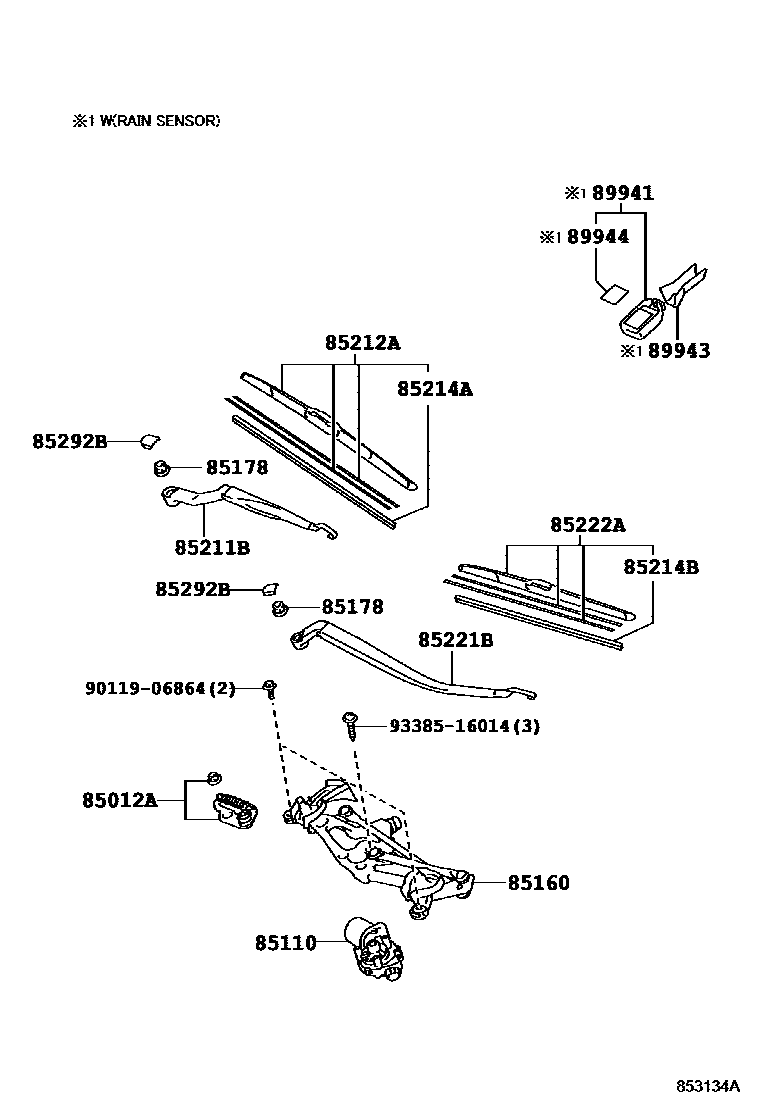

Diagram
16 parts
