Europe 2017 RX SERIES AGL25L-AWTGZW
Catalog: LEXUS202608 Engine: 2000CC 16-VALVE DOHC EFI TURBO Transmission Description: AUTOMATIC TRANSMISSION Body Description: WAGON Vehicle Grade: STANDARD TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: EUROPE Color Code: 1J7 Trim Code: LB04 Production: 201509-201908 Model Short: AGL25L-AWTGZW Region: EU Native Region: EU

Lexus RX-SERIES 2017 — Front Fender Apron & Dash Panel

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
51569-48010 GUARD, PROPELLER SHAFT 1
Note:AGL25,GGL25 Production:2015-09 – 2019-08
53021-48010 SUPPORT SUB-ASSY, HOOD LOCK 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
53035-48010 BRACKET SUB-ASSY, HEADLAMP MOUNTING, RH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
53036-48010 BRACKET SUB-ASSY, HEADLAMP MOUNTING, LH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
53153-48030 GUIDE, RADIATOR GRILLE SIDE AIR, RH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
53154-48030 GUIDE, RADIATOR GRILLE SIDE AIR, LH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
53201-48160 SUPPORT SUB-ASSY, RADIATOR 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
53202-48100 SUPPORT SUB-ASSY, RADIATOR, RH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
53203-48140 SUPPORT SUB-ASSY, RADIATOR, LH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
53205-48070 SUPPORT SUB-ASSY, RADIATOR, UPPER 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
53212-48050 SUPPORT, RADIATOR, LH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
53213-48090 SUPPORT, RADIATOR, UPPER RH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
53214-48100 SUPPORT, RADIATOR, UPPER LH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
53215-48050 EXTENSION, RADIATOR SUPPORT, UPPER 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
53221-48030 BRACE, RADIATOR SUPPORT APRON, RH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
53222-48030 BRACE, RADIATOR SUPPORT APRON, LH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
53258-48070 BRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
90467-07220 CLIP, RADIATOR SUPPORT TO FRAME 2
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
53291-48020 SEAL, RADIATOR SUPPORT TO FRAME, RH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
53292-48010 SEAL, RADIATOR SUPPORT TO FRAME, LH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
53293-48130 DEFLECTOR, RADIATOR SIDE, RH 1
Note:AGL2# Production:2015-09 – 2019-08
53294-48130 DEFLECTOR, RADIATOR SIDE, LH 1
Note:AGL2#,GGL25 Production:2015-09 – 2019-08
53295-48060 SEAL, COOL AIR INTAKE DUCT 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
90467-07217 CLIP, COOL AIR INTAKE DUCT SEAL 9
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
90541-15004 CUSHION, HOOD BUMPER 2
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
53701-48100 APRON SUB-ASSY, FRONT FENDER, RH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
53702-48070 APRON SUB-ASSY, FRONT FENDER, LH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
53707-48020 GUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
53708-48010 GUSSET SUB-ASSY, FRONT FENDER APRON, LOWER LH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
53711-48050 APRON, FRONT FENDER, FRONT RH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
53712-48040 APRON, FRONT FENDER, FRONT LH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
53717-48070 PLATE, FENDER APRON, RH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
53718-48070 PLATE, FENDER APRON, LH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
53723-48010 REINFORCEMENT, FRONT SPRING SUPPORT, RH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
53724-48010 REINFORCEMENT, FRONT SPRING SUPPORT, LH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
53731-48050 MEMBER, FRONT APRON TO COWL SIDE, UPPER RH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
53732-48040 MEMBER, FRONT APRON TO COWL SIDE, UPPER LH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
53733-48040 MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
53734-48050 MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
53736-48030 SEAL, FRONT FENDER APRON, RH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
53837-48040 BRACKET, FRONT SIDE PANEL, NO.2 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
53747-48020 PLATE, AIR SEALED, RH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
53748-48020 PLATE, AIR SEALED, LH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
53783-48020 INSULATOR, APRON FRONT FENDER, RH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
53784-48020 INSULATOR, APRON FRONT FENDER, LH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
53835-48060 BRACE, FRONT FENDER TO APRON, RH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
53836-48050 BRACE, FRONT FENDER TO APRON, LH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
53737-33020 SEAL, FRONT FENDER APRON, LH 1
Note:AGL2#,GGL25 Production:2015-09 – 2019-08
53838-48040 BRACKET, FRONT SIDE PANEL, NO.2 LH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
55101-48180 PANEL SUB-ASSY, DASH 1
Note:AGL2#,GGL25..LHD Production:2015-09 – 2017-03 Replacements:55101-48181 (fitment: unknown)
55210-48191 INSULATOR ASSY, DASH PANEL 1
Note:AGL2#,GGL25,GYL25..LHD Production:2016-01 – 2019-07
90467-06197 CLIP 4
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
55219-48030 PACKING, DASH PANEL HOLE COVER 1
Note:AGL2#,GGL25,GYL25..LHD Production:2015-09 – 2019-08
55223-48201 INSULATOR, DASH PANEL, OUTER 1
Note:AGL2#,GGL25,GYL25..LHD Production:2016-01 – 2019-08
55224-48011 INSULATOR, DASH PANEL, OUTER LH 1
Note:AGL2#,GGL25,GYL25..LHD Production:2016-01 – 2017-09 Replacements:55224-48012 (fitment: unknown)
55229-48020 PLATE, DASH PANEL INSULATOR, NO.4 2
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
55239-48020 PLATE, DASH PANEL INSULATOR, NO.3 2
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
55721-48030 BRACE, COWL TOP TO COWL, INNER NO.1 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
55722-48050 BRACE, COWL TOP TO COWL, INNER NO.2 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
57104-48060 MEMBER SUB-ASSY, FRONT CROSS 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
58191-48140 FOOTREST, FRONT FLOOR 1
Note:AGL2#,GGL25,GYL25..LHD Production:2015-09 – 2019-08
58198-48040 CLIP, DASH PANEL INSULATOR PAD 1
Note:AGL2#,GGL25,GYL25..LHD Production:2015-09 – 2019-08
53211-48030 SUPPORT, RADIATOR, RH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
53257-48070 BRACKET, RADIATOR SUPPORT TO FRONT FENDER 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
90105-06137 standard —
90109-06328 standard —
90119-06678 standard —
Replacements:90119-06779 (fitment: unknown)
90179-06274 standard —
90467-08180 standard —
90467-10216 standard —
91635-G0616 standard —

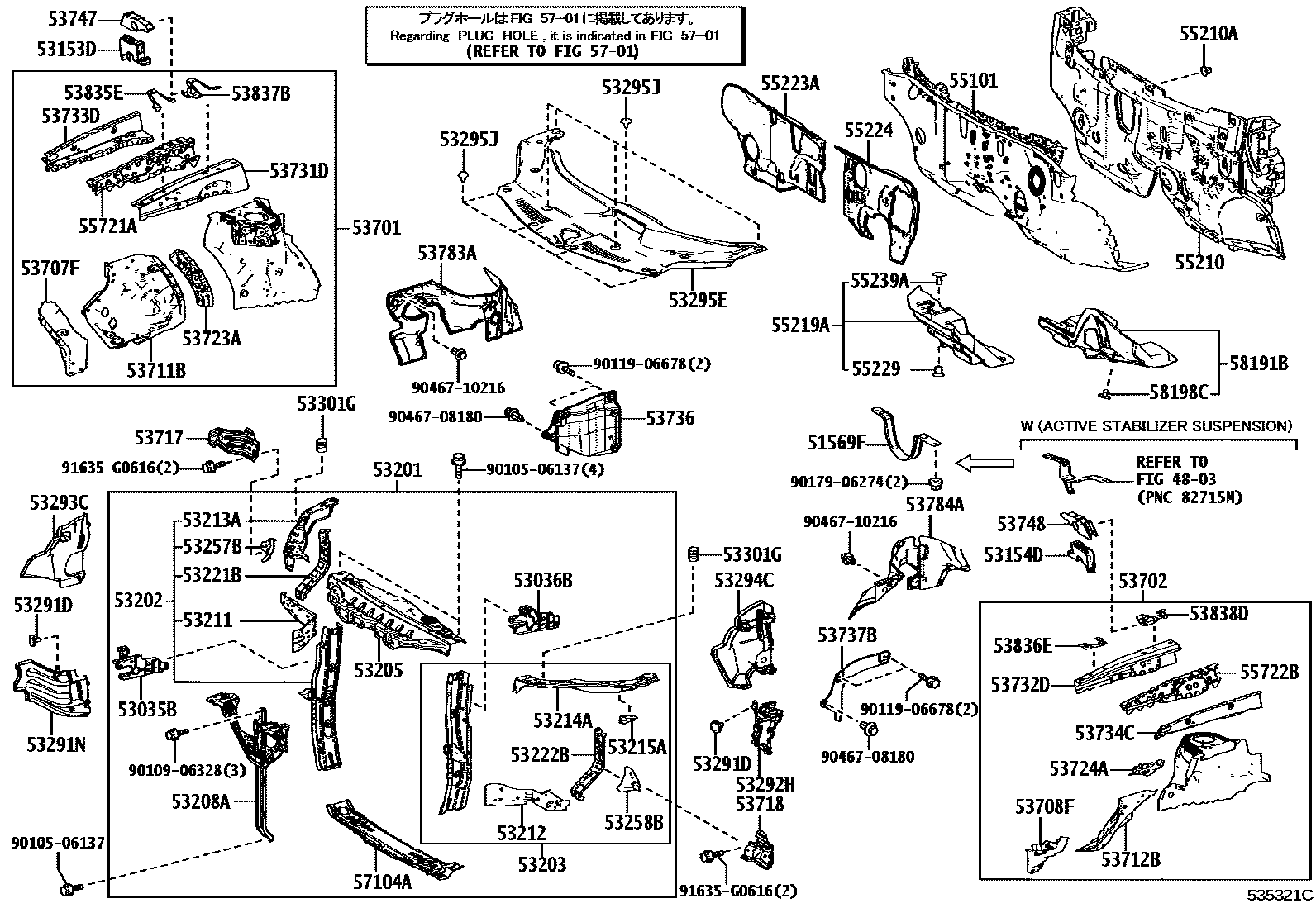

Diagram

71 parts
Lexus RX-SERIES 2017 — Front Fender Apron & Dash Panel
