Open RegionYearModelModelCode Details
General 2013 MAZDA3 BPG6
Catalog: MAZDA202405 Edition: MEB Dataset: B1 Catalog Code: AEBA14 Model Year: 2013 Engine: GASOLINE Displacement: 2000 Transmission: AUTOMATIC TRANSMISSION Body: HATCHBACK Doors: 5-DOOR Air Conditioner: Equipped Exterior Color: 41V Interior Color: BV0 Seat Type: STH Door Trim: TDA Model Specification: BPG6EAL Production Date: 20130926 Destination: PL Detailed Specification: TYPE OF BEFORE MINOR CHANGE Detailed Specification: W/O SUNROOF Detailed Specification: HATCHBACK Detailed Specification: 5-DOOR Detailed Specification: W/I-STOP Detailed Specification: W/O I-ELOOP Detailed Specification: LO-POWER Detailed Specification: GASOLINE Detailed Specification: 2000 Detailed Specification: AUTOMATIC TRANSMISSION Detailed Specification: 6-SPEED Detailed Specification: W/O EPB Detailed Specification: 2WD Detailed Specification: ECE Region: OTHER Native Region: L

Mazda MAZDA3 2013 — Engine Electrical System (Gasoline) (1500)(2000)

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
RF2B12717 BOLT,TENSIONER 2
Note:15002000 Edition:MEB Part Number:RF2B12717 Application:15002000 Application Note Preview:15002000 Application Note Key:000904 Fitment:Matches · configuration
PE2018100 COIL,IGNITION 4
Note:AN (PE20-18-100A) 15002000 - 140601BM5*** -161292 Edition:MEB Part Number:PE2018100 Application:AN (PE20-18-100A) 15002000 - 140601BM5*** -161292 Application Note Preview:AN (PE20-18-100A) 15002000 - 140601 Application Note Key:002724 Fitment:Matches · configuration
PE5R18110 PLUG,SPARK 4
Note:NGK ILKAR7L1115002000SUPPLIER IN SELECTION Edition:MEB Part Number:PE5R18110 Application:NGK ILKAR7L1115002000SUPPLIER IN SELECTION Application Note Preview:NGK ILKAR7L1115002000SUPPLIER IN SELECTION Application Note Key:000938 Fitment:Matches · configuration
PE5S18110 PLUG,SPARK 4
Note:DENSO ZC20HPR1115002000SUPPLIER IN SELECTION Edition:MEB Part Number:PE5S18110 Application:DENSO ZC20HPR1115002000SUPPLIER IN SELECTION Application Note Preview:DENSO ZC20HPR1115002000SUPPLIER IN SELECTION Application Note Key:000937 Fitment:Matches · configuration
9YA02A006 BOLT 90780 —
Edition:MEB Part Number:9YA02A006 Fitment:Matches · configuration
909010811 NUT,FLANGE 90906 —
Replacements:999400801 (fitment: unknown) Edition:MEB Part Number:999400801 Original Part Number:909010811 Fitment:Matches · configuration
994501070 BOLT 99601 —
Edition:MEB Part Number:994501070 Fitment:Matches · configuration
9XF002157L BOLT 99601 —
Replacements:9XF002157LAA (fitment: unknown) Edition:MEB Part Number:9XF002157LAA Original Part Number:9XF002157L Fitment:Matches · configuration

Diagram

8 parts

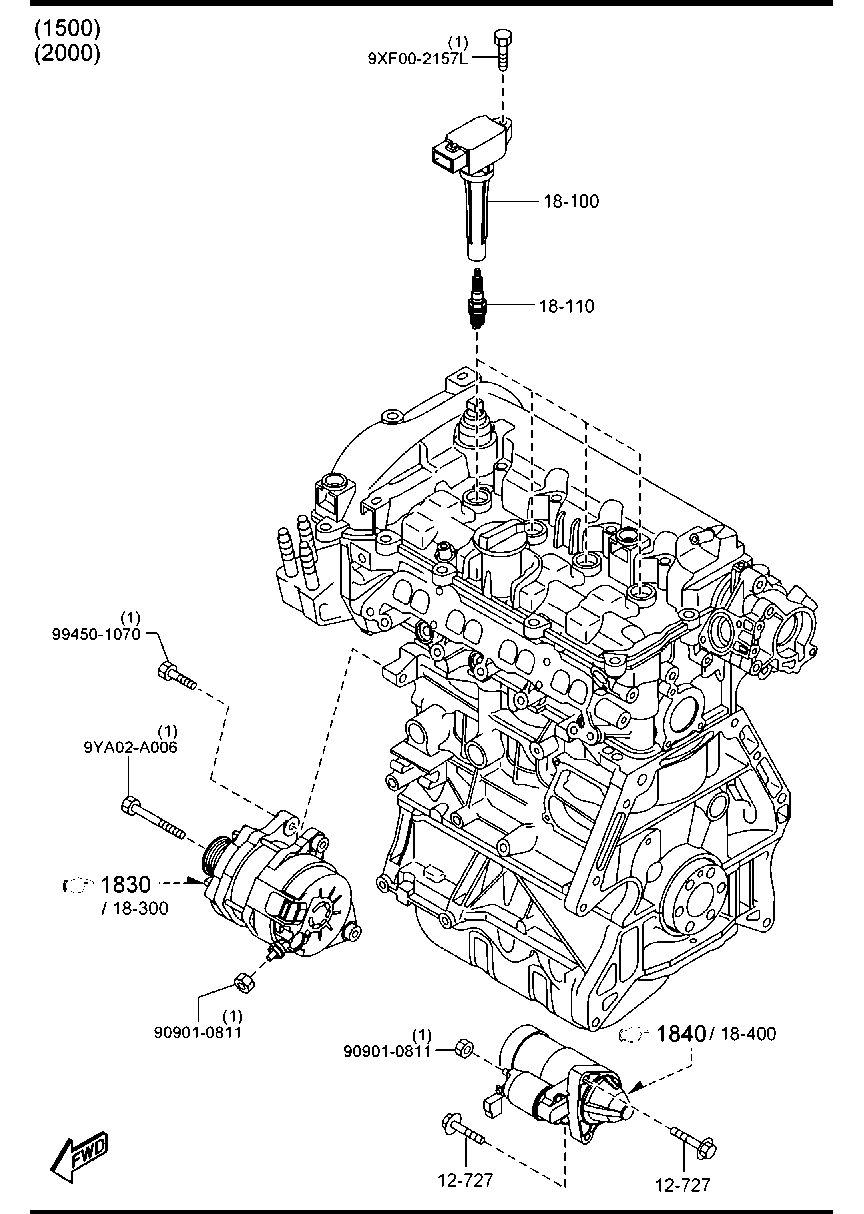

Mazda MAZDA3 2013 — Engine Electrical System (Gasoline) (1500)(2000)
