Open RegionYearModelModelCode Details
General 2011 NATIVA PAJ SPORT G EXP MMTH KH4W
Catalog: MMC202408 Color Code: C06A Frame Mask: KG,KH# Model Short: KH4W Modification: 2500DIESEL/4WD(WAGON) - M-LINE(5SEATER/EURO2,3),5FM/T LHD Options: J94: RR DISC BRAKE; FUEL TANK CHANGE; RV METER; ANTENNA + 6 SPEAKER; 3RD SEAT; WOOD PRINT PANEL; RADIATOR GRILLE CHANGE; SPECIAL ORNAMENT (C); LICENSE PLATE GARNISH (COLOR KEY); RR PANEL GARNISH; SIDE PROTECT MOULDING; FOG LAMP; RR COOLER (STAND TYPE); AIR FILTER; NORDIC SPEC HARNESS (M80H04); IMMOBILIZER + OTHER OPTION; PXX + VXX; P/W + R/CONT MIR + WOOD PRINT PANEL; CTR DISPLAY + OTHER OPTION; HXX + JXX; IMMOBILIZER + KEYLESS ENTRY; IMMOBILIZER; KEY LESS ENTRY (2SET); TOOL SET; ROOF CARRIER ATTACHMENT; OWNER'S GUIDE FOR SPANISH Production: 200903-201509 Production Date: 201112 Trim Code: 11F Year: 2011 Region: OTHER Native Region: M80

Mitsubishi NATIVA-PAJ-SPORT-G-EXP-MMTH 2011 — Balancer / All

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
1125A027 SPACER,BALANCER BELT TRAIN 1
Note:ALL Production:2009-03 – 2013-04 Spec:26 Size:26
1125A061 WASHER,BALANCER BELT TRAIN 1
Note:ALL Production:2009-03 – 2013-04 Spec:PLAIN,8.5 Size:8.5 Shape:PLAIN
MD050129 BOLT,BALANCER BELT TRAIN 1
Note:ALL Production:2009-03 – 2013-04 Spec:FLANGE,8X41 Size:8X41 Shape:FLANGE
MD014241 PLUG,BALANCER,LH 1
Note:ALL Production:2009-03 – 2013-04 Spec:TAPER,1/16 Size:1/16 Shape:TAPER
MD312079 SHAFT,BALANCER,LH 1
Note:ALL Production:2009-03 – 2013-04
MD312081 SHAFT,BALANCER,RH 1
Note:ALL Production:2009-03 – 2013-04
MD040758 BOLT,BALANCER BELT TRAIN 1
Note:ALL Production:2009-03 – 2013-04 Spec:FLANGE,8X16 Size:8X16 Shape:FLANGE
MD164835 SPROCKET,CRANKSHAFT BALANCER SHAFT DRIVE 1
Note:ALL Production:2009-03 – 2013-04
1125A026 BOLT,BALANCER BELT TRAIN 1
Note:ALL Production:2009-03 – 2013-04 Spec:8X57 Size:8X57
MD050126 SPRING,BALANCER TIMING BELT TENSIONER 1
Note:ALL Production:2009-03 – 2013-04
MD310484 BELT,BALANCER TIMING 1
Note:ALL Production:2009-03 – 2013-04 Replacements:1145A081 (fitment: unknown)
MD050125 TENSIONER,BALANCER TIMING BELT 1
Note:ALL Production:2009-03 – 2013-04
MF434104 NUT,BALANCER BELT TRAIN 1
Note:ALL Production:2009-03 – 2015-09 Spec:FLANGE,8 Size:8 Shape:FLANGE
MD001521 WASHER,BALANCER BELT TRAIN 2
Note:ALL Production:2009-03 – 2013-04 Spec:PLAIN,8.5 Size:8.5 Shape:PLAIN
MD199039 SPROCKET,BALANCER SHAFT 2
Note:ALL Production:2009-03 – 2013-04
MD040758 BOLT,BALANCER 1
Note:ALL Production:2009-03 – 2015-09 Spec:FLANGE,8X16 Size:8X16 Shape:FLANGE
MD199040 GEAR,BALANCER SHAFT DRIVE 1
Note:ALL Production:2009-03 – 2013-04
MD149743 SLEEVE,BALANCER SHAFT DRIVE GEAR 1
Note:ALL Production:2009-03 – 2013-04
MD050561 GEAR,BALANCER SHAFT DRIVEN 1
Note:ALL Production:2009-03 – 2013-04
MD377544 SPACER,BALANCER BELT TRAIN 1
Note:ALL Production:2009-03 – 2013-04 Spec:28.4 Size:28.4
12 110 standard — —

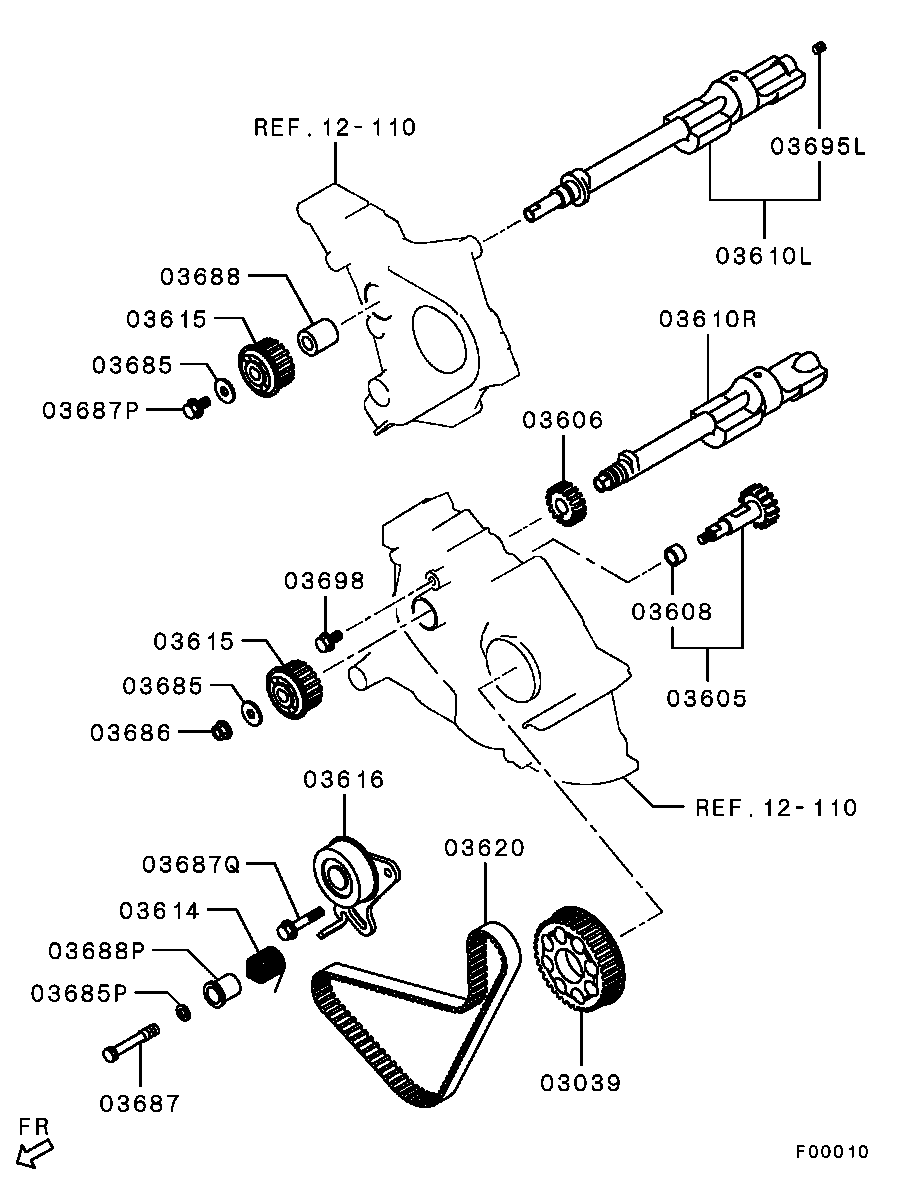

Diagram

21 parts
