Open RegionYearModelModelCode Details
General 2014 COROLLA ZRE172L-DEFDK
Catalog: TOYOTA202608 Engine: 1800CC 16-VALVE DOHC EFI Transmission Description: MANUAL TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Body Description: SEDAN Vehicle Grade: STANDARD TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GENERAL COUNTRIES Doors Description: 4-DOOR Color Code: 1F9 Trim Code: FA11 Production: 201404-201608 Model Short: ZRE172L-DEFDK Region: OTHER Native Region: GR

Toyota Corolla 2014 — Headlamp

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
81195-02080 RETAINER, HEADLAMP PROTECTOR, LOWER RH 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
81196-02080 RETAINER, HEADLAMP PROTECTOR, LOWER LH 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
81110-02E60 HEADLAMP ASSY, RH 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
81150-02E60 HEADLAMP ASSY, LH 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
99132-12050 BULB, FRONT SIDE MAKER LAMP 2
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
90075-60077 SOCKET & WIRE, FRONT SIDE MARKER LAMP 2
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
90981-13046 BULB(FOR HEADLAMP, NO.1) 2
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08 Spec:12V65W(SAE),60W(ECE)
90075-65006 SOCKET,HEADLAMP, NO.1 2
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
90981-15024 BULB, FRONT TURN SIGNAL & PARKING LAMP 2
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08 Spec:12V 28/8W
81128-06470 SOCKET, FRONT TURN SIGNAL LAMP 2
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
81197-02080 BRACKET, HEADLAMP, LOWER RH 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
81198-02080 BRACKET, HEADLAMP, LWR LH 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
81193-02080 RETAINER, HEADLAMP PROTECTOR, UPPER RH 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
81194-02080 RETAINER, HEADLAMP PROTECTOR, UPPER LH 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
85967-02020 COMPUTER, LIGHT CONTROL 2
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
90159-A0060 standard —
90109-A0043 standard —
90189-05142 standard —
90080-17066 standard —
Replacements:90179-06127 (fitment: unknown)
90075-15505 standard —

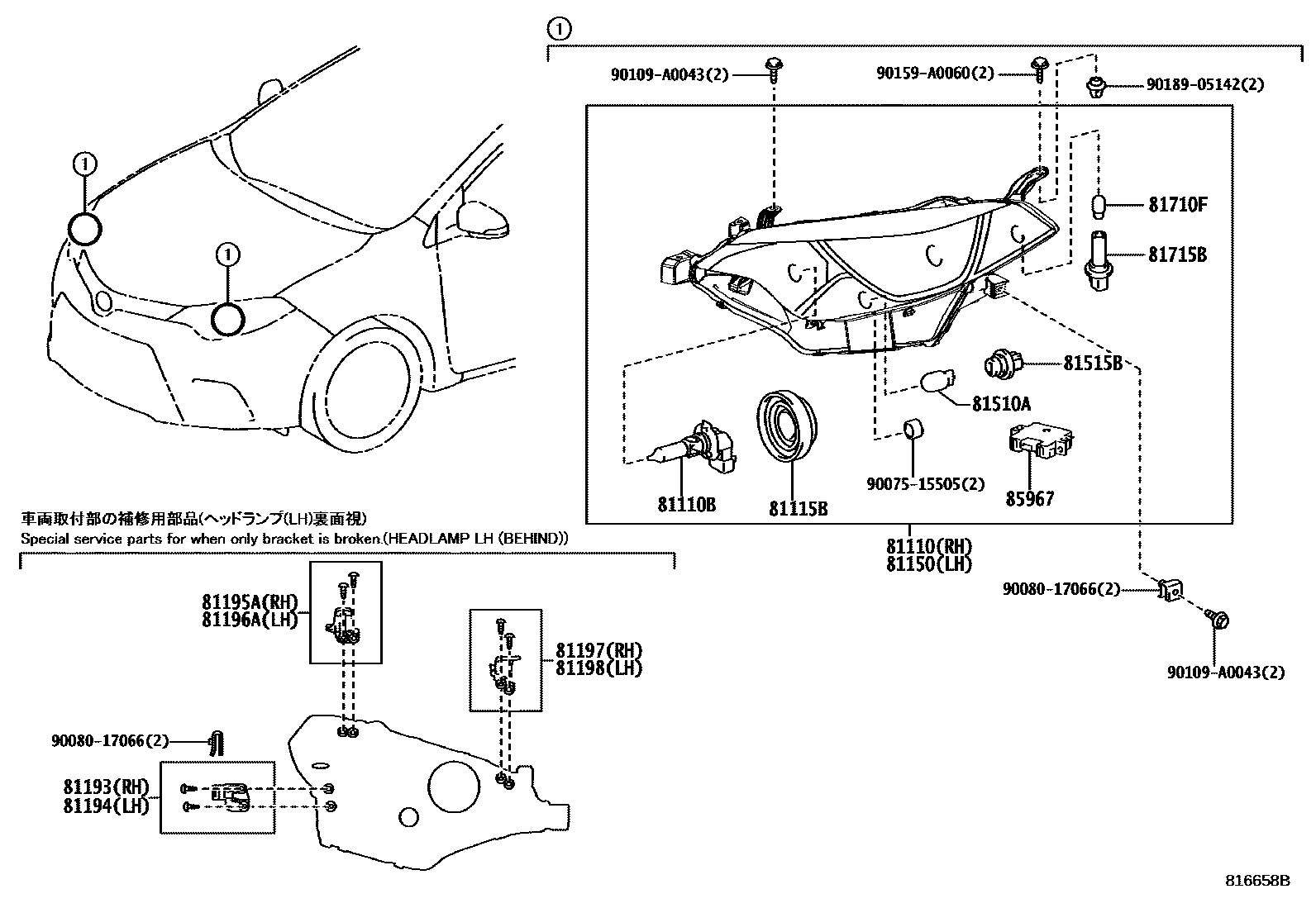

Diagram

20 parts
Toyota Corolla 2014 — Headlamp
