General 2014 COROLLA ZRE172L-DEFDK
Catalog: TOYOTA202608 Engine: 1800CC 16-VALVE DOHC EFI Transmission Description: MANUAL TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Body Description: SEDAN Vehicle Grade: STANDARD TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GENERAL COUNTRIES Doors Description: 4-DOOR Color Code: 1F9 Trim Code: FA11 Production: 201404-201608 Model Short: ZRE172L-DEFDK Region: OTHER Native Region: GR

Toyota Corolla 2014 — Crankshaft & Piston

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
90280-04003 KEY(FOR CRANKSHAFT TIMING GEAR) 2
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-08 – 2016-08
11791-0T030 WASHER, CRANKSHAFT THRUST, UPPER 2
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-08 – 2016-08 Replacements:11791-22020 (fitment: unknown) Spec:STD,(L) Spec Note:STD,(Local made)
11791-22020 WASHER, CRANKSHAFT THRUST, UPPER 2
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-08 – 2016-08 Spec:STD,(J) Spec Note:STD,(Japan made)
13521-0T030 GEAR OR SPROCKET, CRANKSHAFT TIMING 1
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-08 – 2016-08 Replacements:13521-37011 (fitment: unknown)
19315-37020 PLATE, CRANK ANGLE SENSOR, NO.1 1
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-08 – 2015-08
13519-37010 GEAR, OIL PUMP DRIVE 1
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-08 – 2016-08
13470-37041 PULLEY, CRANKSHAFT 1
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-10 – 2016-08 Replacements:13470-37042 (fitment: unknown)
13401-0T031 CRANKSHAFT 1
Note:2ZRFE..ZRE172..CVT,MTM Production:2014-01 – 2016-08 Replacements:13401-37021 (fitment: unknown)
90119-14106 BOLT(FOR CRANKSHAFT PULLEY SET) 1
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-08 – 2015-04
13101-0T200 PISTON SUB-ASSY, W/PIN 4
Note:2ZRFE..ZRE172..GEN Production:2014-04 – 2016-08 Replacements:13101-37380 (fitment: unknown) Spec:STD,REFER REPAIR MANUAL
90520-20064 RING, HOLE SNAP(FOR PISTON PIN) 8
Note:2ZRFE..ZRE172 Production:2013-08 – 2015-08
13201-09A10 ROD SUB-ASSY, CONNECTING 4
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-08 – 2016-08 Replacements:13201-39185 (fitment: unknown) Spec:(L) Spec Note:(Local made)
13201-39185 ROD SUB-ASSY, CONNECTING 4
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-08 – 2016-08 Spec:(J) Spec Note:(Japan made)
13011-0T070 RING SET, PISTON 1
Note:2ZRFE..ZRE172..GEN Production:2014-04 – 2016-08 Spec:STD,(L) Spec Note:STD,(Local made)
13041-0T010-01 BEARING, CONNECTING ROD 4
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-08 – 2016-08 Replacements:13041-37010-01 (fitment: unknown) Spec:MARK1,(L):REFER R/M Spec Note:MARK1,(Local made):REFER R/M
13041-0T010-02 BEARING, CONNECTING ROD 4
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-08 – 2016-08 Replacements:13041-37010-02 (fitment: unknown) Spec:MARK2,(L):REFER R/M Spec Note:MARK2,(Local made):REFER R/M
13041-0T010-03 BEARING, CONNECTING ROD 4
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-08 – 2016-08 Replacements:13041-37010-03 (fitment: unknown) Spec:MARK3,(L):REFER R/M Spec Note:MARK3,(Local made):REFER R/M
13041-37010-01 BEARING, CONNECTING ROD 4
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-08 – 2016-08 Spec:MARK1,(J):REFER R/M Spec Note:MARK1,(Japan made):REFER R/M
13041-37010-02 BEARING, CONNECTING ROD 4
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-08 – 2016-08 Spec:MARK2,(J):REFER R/M Spec Note:MARK2,(Japan made):REFER R/M
13041-37010-03 BEARING, CONNECTING ROD 4
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-08 – 2016-08 Spec:MARK3,(J):REFER R/M Spec Note:MARK3,(Japan made):REFER R/M
11701-0T011-01 BEARING, CRANKSHAFT 5
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-11 – 2016-08 Replacements:11701-37021-01 (fitment: unknown) Spec:MARK1,(L):REFER R/M Spec Note:MARK1,(Local made):REFER R/M
11701-0T011-02 BEARING, CRANKSHAFT 5
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-11 – 2016-08 Replacements:11701-37021-02 (fitment: unknown) Spec:MARK2,(L):REFER R/M Spec Note:MARK2,(Local made):REFER R/M
11701-0T011-03 BEARING, CRANKSHAFT 5
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-11 – 2016-08 Replacements:11701-37021-03 (fitment: unknown) Spec:MARK3,(L):REFER R/M Spec Note:MARK3,(Local made):REFER R/M
11701-0T011-04 BEARING, CRANKSHAFT 5
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-11 – 2016-08 Replacements:11701-37021-04 (fitment: unknown) Spec:MARK4,(L):REFER R/M Spec Note:MARK4,(Local made):REFER R/M
11701-37021-01 BEARING, CRANKSHAFT 5
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-11 – 2016-08 Spec:MARK1,(J):REFER R/M Spec Note:MARK1,(Japan made):REFER R/M
11701-37021-02 BEARING, CRANKSHAFT 5
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-11 – 2016-08 Spec:MARK2,(J):REFER R/M Spec Note:MARK2,(Japan made):REFER R/M
11701-37021-03 BEARING, CRANKSHAFT 5
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-11 – 2016-08 Spec:MARK3,(J):REFER R/M Spec Note:MARK3,(Japan made):REFER R/M
11701-37021-04 BEARING, CRANKSHAFT 5
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-11 – 2016-08 Spec:MARK4,(J):REFER R/M Spec Note:MARK4,(Japan made):REFER R/M
13265-22020 BOLT, CONNECTING ROD 8
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-08 – 2015-08 Replacements:13265-22040 (fitment: unknown)
90913-01027 BOLT, FLYWHEEL SETTING 8
Note:2ZRFE..ZRE172..6F Production:2013-08 – 2016-08 Spec:(J) Spec Note:(Japan made)
90913-A1002 BOLT, FLYWHEEL SETTING 8
Note:2ZRFE..ZRE172..6F Production:2013-08 – 2016-08 Replacements:90913-01027 (fitment: unknown) Spec:(L) Spec Note:(Local made)
90250-08120 PIN, STRAIGHT(FOR FLYWHEEL) 3
Note:2ZRFE..ZRE172..6F Production:2013-08 – 2016-08 Spec:L=18,OD=8
13405-37051 FLYWHEEL SUB-ASSY 1
Note:2ZRFE..ZRE172..6F Production:2014-03 – 2016-08
13453-0T010 GEAR, FLYWHEEL RING 1
Note:2ZRFE..ZRE172..6F Production:2013-08 – 2016-08 Replacements:13453-10010 (fitment: unknown) Spec:(L) Spec Note:(Local made)
13453-10010 GEAR, FLYWHEEL RING 1
Note:2ZRFE..ZRE172..6F Production:2013-08 – 2016-08 Spec:(J) Spec Note:(Japan made)
90999-73151 BUSH(FOR CONNECTING ROD SMALL END) 4
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-08 – 2016-08

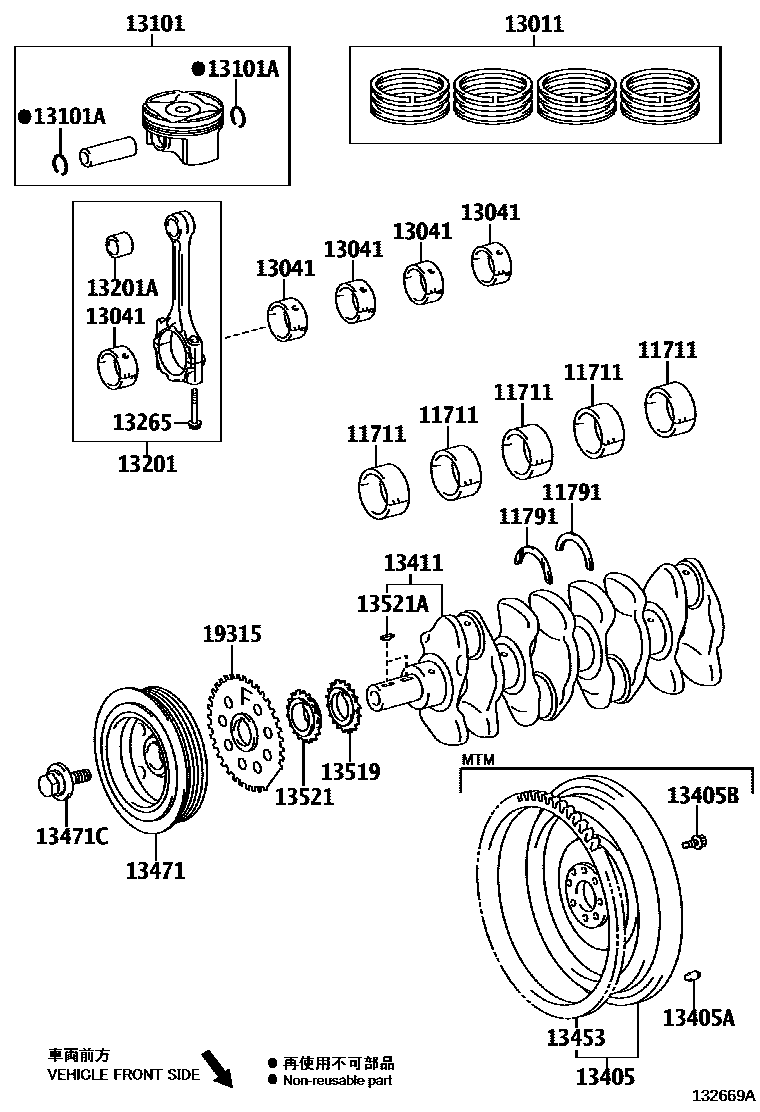

Diagram
