General 2014 COROLLA ZRE172L-DEFDK
Catalog: TOYOTA202608 Engine: 1800CC 16-VALVE DOHC EFI Transmission Description: MANUAL TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Body Description: SEDAN Vehicle Grade: STANDARD TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GENERAL COUNTRIES Doors Description: 4-DOOR Color Code: 1F9 Trim Code: FA11 Production: 201404-201608 Model Short: ZRE172L-DEFDK Region: OTHER Native Region: GR

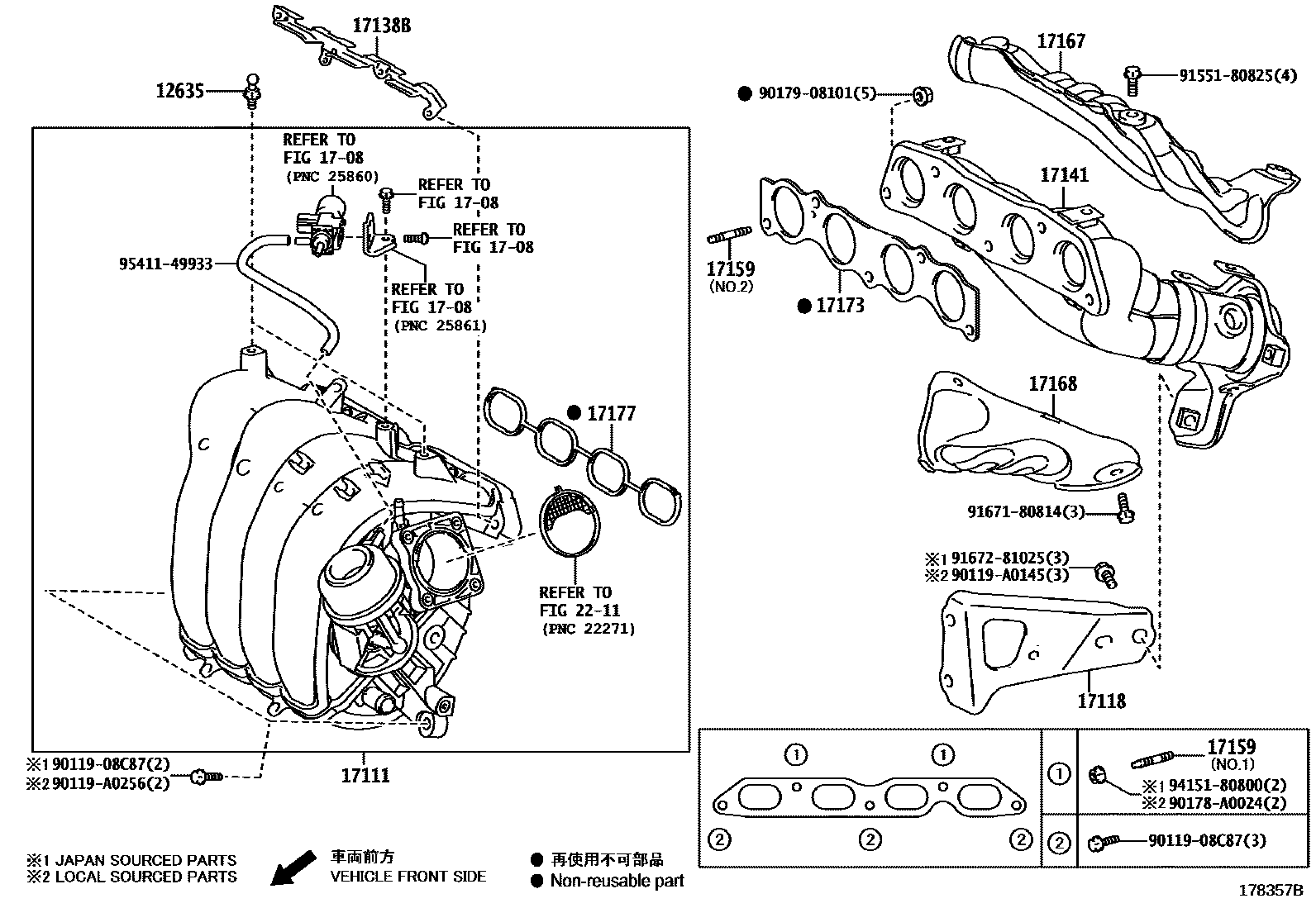

Toyota Corolla 2014 — Manifold

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
90126-08026 BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) 2
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-08 – 2016-08 Spec:(J),NO.1 Spec Note:(Japan made),NO.1
90126-08052 BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) 5
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-08 – 2016-08 Spec:(J),NO.2 Spec Note:(Japan made),NO.2
90126-A0006 BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) 2
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-08 – 2016-08 Replacements:90126-08026 (fitment: unknown) Spec:(L),NO.1 Spec Note:(Local made),NO.1
90126-A0019 BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) 5
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-08 – 2016-08 Replacements:90126-08052 (fitment: unknown) Spec:(L),NO.2 Spec Note:(Local made),NO.2
17141-0T080 MANIFOLD, EXHAUST 1
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-08 – 2016-08 Replacements:17141-0T200 (fitment: unknown) Spec:(L) Spec Note:(Local made)
17141-37130 MANIFOLD, EXHAUST 1
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-08 – 2016-08 Spec:(J) Spec Note:(Japan made)
17167-0T060 INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 1
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-08 – 2016-08 Spec:(L) Spec Note:(Local made)
17167-37110 INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 1
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-08 – 2016-08 Spec:(J) Spec Note:(Japan made)
17168-0T090 INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 1
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-08 – 2016-08 Spec:(L) Spec Note:(Local made)
17168-37100 INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 1
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-08 – 2016-08 Spec:(J) Spec Note:(Japan made)
17173-0T030 GASKET, EXHAUST MANIFOLD TO HEAD 1
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-08 – 2016-08 Replacements:17173-37010 (fitment: unknown) Spec:(L) Spec Note:(Local made)
17173-37010 GASKET, EXHAUST MANIFOLD TO HEAD 1
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-08 – 2016-08 Spec:(J) Spec Note:(Japan made)
17118-0T060 STAY, MANIFOLD 1
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-08 – 2016-08 Replacements:17118-37010 (fitment: unknown) Spec:(L) Spec Note:(Local made)
17118-37010 STAY, MANIFOLD 1
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-08 – 2016-08 Spec:(J) Spec Note:(Japan made)
90109-06385 JOINT, ENGINE COVER 2
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-08 – 2016-08
17177-37030 GASKET, INTAKE MANIFOLD TO HEAD, NO.1 1
Note:2ZRFE..ZRE172..GEN Production:2014-04 – 2016-08 Spec:(J) Spec Note:(Japan made)
17138-37011 STAY, INTAKE MANIFOLD 1
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-08 – 2016-08 Spec:(J) Spec Note:(Japan made)
17138-0T011 STAY, INTAKE MANIFOLD 1
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-12 – 2016-08 Replacements:17138-37011 (fitment: unknown) Spec:(L) Spec Note:(Local made)
17120-37070 MANIFOLD, INTAKE 1
Note:2ZRFE..ZRE172..GEN Production:2014-04 – 2016-08 Spec:(L) Spec Note:(Local made)
91671-80814 standard —
91551-80825 standard —
91672-81025 standard —
90119-A0145 standard —
Replacements:91672-81025 (fitment: unknown)
94151-80800 standard —
90178-A0024 standard —
90119-08C87 standard —
90179-08101 standard —
95411-49933 standard —
90119-A0256 standard —
Replacements:90119-08C87 (fitment: unknown)

Diagram

29 parts
Toyota Corolla 2014 — Manifold
