Open RegionYearModelModelCode Details
USA / Canada 2023 HILUX DOUBLE CAB GUN125L-DGFLXF
Catalog: TOYOTA202608 Engine: 2400CC DIESEL TURBO Transmission Description: MANUAL TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: LATIN AMERICA(EXCEPT ANCOM) Color Code: 3T6 Trim Code: FC20 Production: 202211-202310 Model Short: GUN125L-DGFLXF Region: NA Native Region: US

Toyota HILUX-DOUBLE-CAB 2023 — Windshield Washer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
85372-0K020 PROTECTOR, WASHER JAR 1
Note:GGN125,GUN125,126,13#,TGN126,136..AGTP Production:2022-08 – 2023-10
82711-0K070 CLAMP 3
Note:GGN125,GUN125,126,13#,TGN126,136..AGTP Production:2022-08 – 2023-10 Replacements:82711-1E340 (fitment: unknown)
90099-32089 BUSH, WINDSHIELD WASHER JAR 1
Note:GGN125,GUN125,126,13#,TGN126,136..AGTP Production:2022-08 – 2023-10
85336-30160 PACKING, WINDSHIELD WASHER INLET HOSE 1
Note:GGN125,GUN125,126,13#,TGN126,136..AGTP Production:2022-08 – 2023-10
85315-0K280 JAR ASSY, WINDSHIELD WASHER 1
Note:GGN125,GUN125,126,13#,TGN126,136..AGTP Production:2022-11 – 2023-10
85330-0K012 MOTOR AND PUMP ASSY, WINDSHIELD WASHER 1
Note:GGN125,GUN125,126,13#,TGN126,136..AGTP Production:2022-08 – 2023-10
85375-06101 JOINT, WINDSHIELD WASHER HOSE, NO.1 1
Note:GGN125,GUN125,126,13#,TGN126,136..AGTP Production:2022-08 – 2023-10 Replacements:85375-10260 (fitment: unknown)
90068-33160 HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 1
Note:GGN125,GUN125,126,13#,TGN126,136..AGTP Production:2022-08 – 2023-10 Spec:L=40
85301-0K140 INLET SUB-ASSY, WASHER 1
Note:GGN125,GUN125,126,13#,TGN126,136..AGTP Production:2022-11 – 2023-10
85386-0K140 CAP, WINDSHIELD WASHER JAR 1
Note:GGN125,GUN125,126,13#,TGN126,136..AGTP Production:2022-11 – 2023-10
85348-14390 VALVE, WINDSHIELD WASHER HOSE 1
Note:GGN125,GUN125,126,13#,TGN126,136..AGTP Production:2022-08 – 2023-10
90068-59152 HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 1
Note:GGN125,GUN125,126,13#,TGN126,136..AGTP Production:2022-08 – 2023-10 Spec:L=1445
90068-33295 HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 1
Note:GGN125,GUN125,126,13#,TGN126,136..AGTP Production:2022-08 – 2023-10 Spec:L=685
90068-33257 HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 1
Note:GGN125,GUN125,126,13#,TGN126,136..AGTP Production:2022-08 – 2023-10 Spec:L=430
85377-0D040 JOINT, WINDSHIELD WASHER ELBOW, NO.1 1
Note:GGN125,GUN125,126,13#,TGN126,136..AGTP Production:2022-08 – 2023-10 Replacements:85355-20200 (fitment: unknown)
85375-06101 JOINT, WINDSHIELD WASHER HOSE, NO.2 1
Note:GGN125,GUN125,126,13#,TGN126,136..AGTP Production:2022-08 – 2023-10 Replacements:85375-10260 (fitment: unknown)
90068-33398 HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6 2
Note:GGN125,GUN125,126,13#,TGN126,136..AGTP Production:2022-08 – 2023-10 Spec:L=175
85389-26080 PROTECTOR, FRONT WASHER 2
Note:GGN125,GUN125,126,13#,TGN126,136..AGTP Production:2022-08 – 2023-10
85321-26020 JOINT, WINDSHIELD WASHER HOSE, NO.4 2
Note:GGN125,GUN125,126,13#,TGN126,136..AGTP Production:2022-08 – 2023-10
90068-33019 HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) 2
Note:GGN125,GUN125,126,13#,TGN126,136..AGTP Production:2022-08 – 2023-10 Spec:L=40
85381-0K070 NOZZLE SUB-ASSY, WASHER 2
Note:GGN125,GUN125,126,13#,TGN126,136..AGTP Production:2022-08 – 2023-10 Replacements:85381-30220 (fitment: unknown) Spec:ANGLE 0
85381-0K080 NOZZLE SUB-ASSY, WASHER 2
Note:GGN125,GUN125,126,13#,TGN126,136..AGTP Production:2022-08 – 2023-10 Replacements:85381-30230 (fitment: unknown) Spec:ANGLE -2
85381-0K090 NOZZLE SUB-ASSY, WASHER 2
Note:GGN125,GUN125,126,13#,TGN126,136..AGTP Production:2022-08 – 2023-10 Replacements:85381-30240 (fitment: unknown) Spec:ANGLE +2
82711-3A640 standard —
90119-T0144 standard —
Replacements:90119-06767 (fitment: unknown)

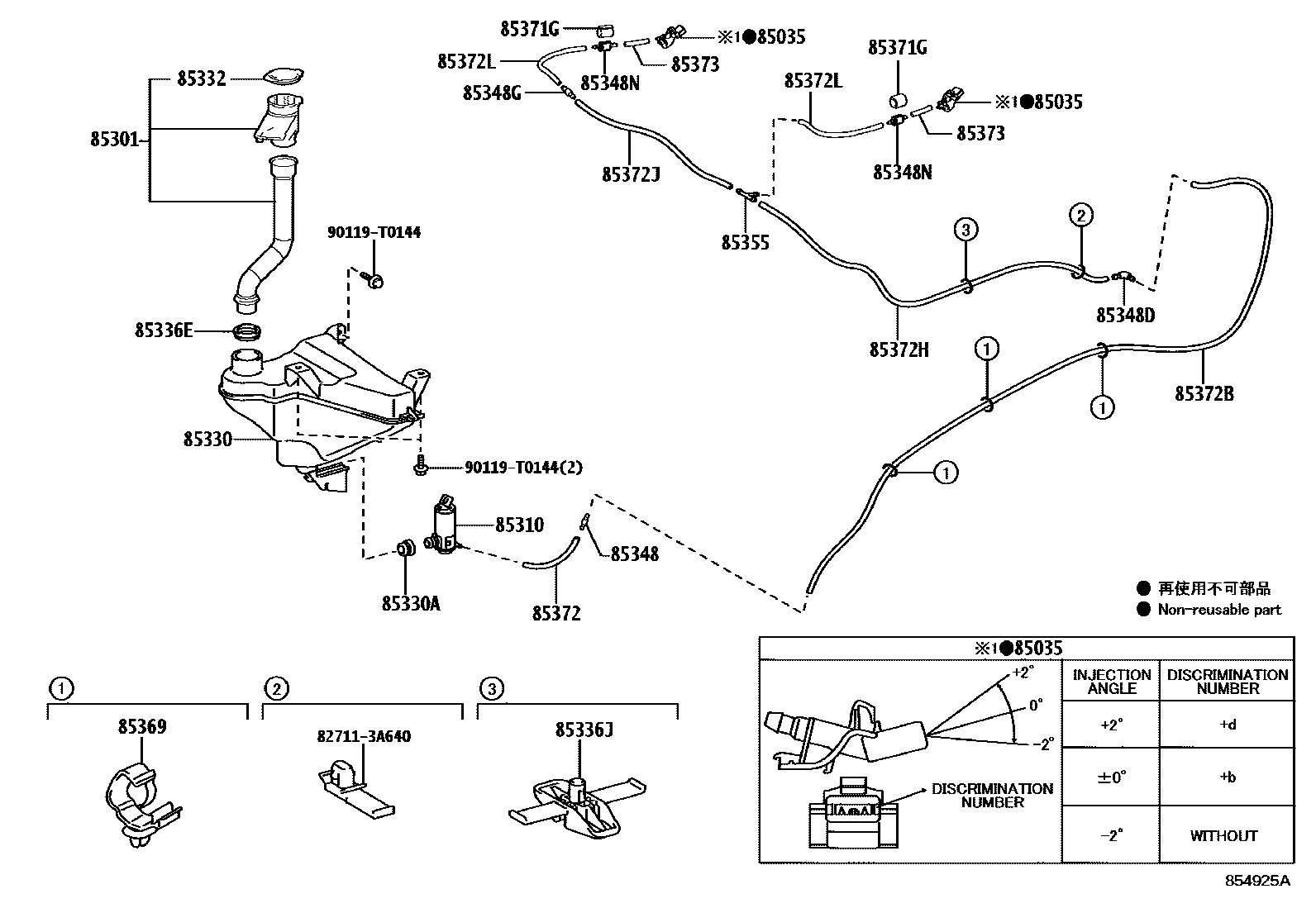

Diagram

25 parts
Toyota HILUX-DOUBLE-CAB 2023 — Windshield Washer
