Open RegionYearModelModelCode Details
General 2014 ETIOS NGK15L-AEMNKH
Catalog: TOYOTA202608 Engine: 1500CC 16-VALVE DOHC EFI Transmission Description: MANUAL TRANSMISSION, MTM, 5-SPEED FLOOR SHIFT Vehicle Grade: XS TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: ARGENTINE Doors Description: 4-DOOR Color Code: 058 Trim Code: FA20 Production: 201309-201604 Model Short: NGK15L-AEMNKH Region: OTHER Native Region: GR

Toyota Etios 2014 — Cylinder Head

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
12611-0Y050 COVER, ENGINE, NO.1 1
Note:1NRFBE,2NR#..NGK1# Production:2012-09 – 2016-04
90109-06080 BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) 16
Note:1NRFBE,2NR#..NGK1# Production:2012-09 – 2016-04
91551-A0840 BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) 3
Note:1NRFBE,2NR#..NGK1# Production:2013-02 – 2016-04
90253-11021 PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) 2
Note:1NRFBE,2NR#..NGK1# Production:2012-09 – 2016-04 Spec:L=8,OD=11
12281-47031 HANGER, ENGINE, NO.1 2
Note:1NRFBE,2NR#..NGK1# Production:2012-09 – 2016-04
15301-47040 GAGE SUB-ASSY, OIL LEVEL 1
Note:1NRFBE,2NR#..NGK1# Production:2012-09 – 2016-04
11115-47060 GASKET, CYLINDER HEAD 1
Note:1NRFBE,2NR#..NGK1# Production:2012-09 – 2016-04
11201-47090 COVER SUB-ASSY, CYLINDER HEAD 1
Note:1NRFBE,2NR#..NGK1# Production:2012-09 – 2016-04
11213-47030 GASKET, CYLINDER HEAD COVER 1
Note:1NRFBE,2NR#..NGK1# Production:2012-09 – 2016-04
11101-49475 HEAD SUB-ASSY, CYLINDER 1
Note:2NRFE..NGK12,15 Production:2013-09 – 2016-04
12180-38010 CAP SUB-ASSY, OIL FILLER 1
Note:1NRFBE,2NR#..NGK1# Production:2012-09 – 2016-04
90430-35001 GASKET(FOR OIL FILLER CAP) 1
Note:1NRFBE,2NR#..NGK1# Production:2012-09 – 2016-04
11131-47030 SEAT, INTAKE VALVE 8
Note:2NRFE..NGK12,15 Production:2013-09 – 2016-04 Spec:STD
11132-47030 SEAT, INTAKE VALVE 8
Note:2NRFE..NGK12,15 Production:2013-09 – 2016-04 Spec:O/S 0.03
11135-47010 SEAT, EXHAUST VALVE 8
Note:2NRFE..NGK12,15 Production:2013-09 – 2016-04 Spec:STD
11136-47010 SEAT, EXHAUST VALVE 8
Note:2NRFE..NGK12,15 Production:2013-09 – 2016-04 Spec:O/S 0.03
90910-02174 BOLT(FOR CYLINDER HEAD SET) 10
Note:1NRFBE,2NR#..NGK1# Production:2012-09 – 2016-04
90201-10344 WASHER, PLATE(FOR CYLINDER HEAD SET) 10
Note:2NRFBE..NGK12..5F;1NRFBE,2NR#..NGK11,15;2NRFE..NGK12..X,XLS,XS;2NRFE..NGK12..5F..CROSS;2NRFBE..NGK12..(4FC,6F)..(XLS,XS) Production:2012-09 – …
90919-05080 SENSOR, CRANK POSITION, NO.1 1
Note:1NRFBE,2NR#..NGK1# Production:2012-09 – 2016-04
11122-22040 BUSH, INTAKE VALVE GUIDE 8
Note:1NRFBE,2NR#..NGK1# Production:2012-09 – 2016-04 Spec:STD
11123-22040 BUSH, INTAKE VALVE GUIDE 8
Note:1NRFBE,2NR#..NGK1# Production:2012-09 – 2016-04 Spec:O/S 0.05
11122-22040 BUSH, EXHAUST VALVE GUIDE 8
Note:1NRFBE,2NR#..NGK1# Production:2012-09 – 2016-04 Spec:STD
11123-22040 BUSH, EXHAUST VALVE GUIDE 8
Note:1NRFBE,2NR#..NGK1# Production:2012-09 – 2016-04 Spec:O/S 0.05
90109-06384 standard —
91551-80616 standard —
91671-80825 standard —

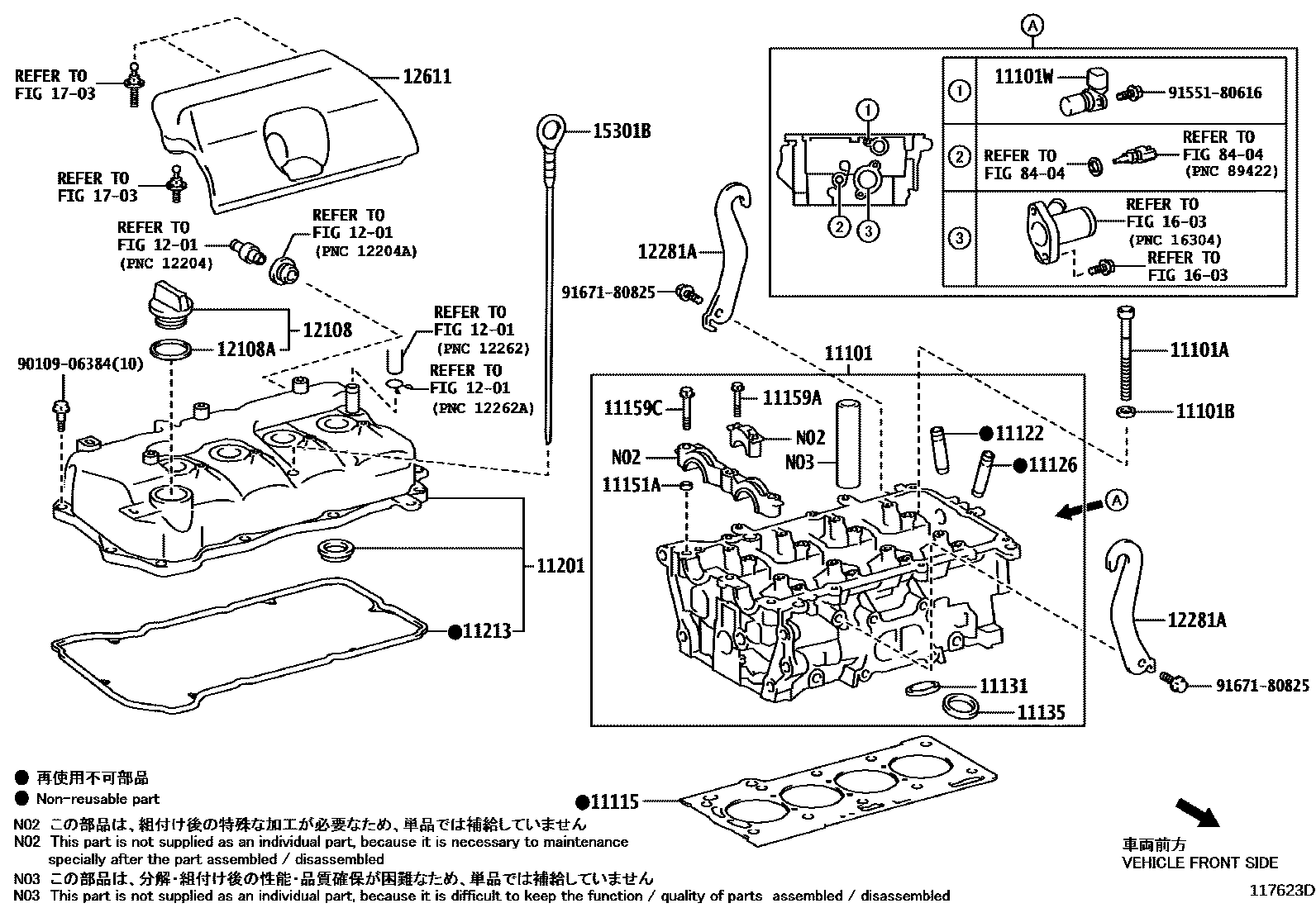

Diagram

26 parts
Toyota Etios 2014 — Cylinder Head
