Toyota Hilux 2013 — Starter
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 28100-0L141 | STARTER ASSY | 1 | |
Note:1KDFTV..KUN26,36..SA;1KDFTV..KUN26..SADCB;1KDFTV..KUN26..(4FC,5FC)..(CO,LA) Production:2012-03 – 2015-12 Replacements:28100-0L032 (fitment: unknown) Spec:12V 2.2KW | |||
| 28160-64041 | ARMATURE ASSY, STARTER | 1 | |
Note:1KDFTV..KUN26..(4FC,5FC)..(CO,LA);1KDFTV,5LE..KUN16,26,36,LAN15,25,35..ARL,GEN,MA,PHL,SA,TH Production:2011-07 – 2016-01 | |||
| 28150-0L141 | SWITCH ASSY, MAGNET STARTER | 1 | |
Note:1KDFTV..KUN26,36..SA;1KDFTV..KUN26..SADCB;1KDFTV..KUN26..(4FC,5FC)..(CO,LA) Production:2012-03 – 2015-12 | |||
| 28120-0L030 | YOKE ASSY, STARTER | 1 | |
Note:1KDFTV..KUN26..(4FC,5FC)..(CO,LA);1KDFTV..KUN16,26,36..ARL,GEN,MA,PHL,SA,TH Production:2011-07 – 2016-01 Replacements:28120-64040 (fitment: unknown) | |||
| 28140-0L141 | HOLDER ASSY, STARTER BRUSH | 1 | |
Note:1KDFTV..KUN26,36..SA;1KDFTV..KUN26..SADCB;1KDFTV..KUN26..(4FC,5FC)..(CO,LA) Production:2012-03 – 2015-12 | |||
| 28011-0L120 | CLUTCH SUB-ASSY, STARTER | 1 | |
Note:1KDFTV..KUN26,36..SA;1KDFTV..KUN26..SADCB;1KDFTV..KUN26..(4FC,5FC)..(CO,LA) Production:2011-08 – 2015-12 | |||
| — | Part does not apply to this vehicle configuration. | 28120A | — |
| — | Part does not apply to this vehicle configuration. | 28011B | — |
| — | Part does not apply to this vehicle configuration. | 28110 | — |
| 90105-T0081 | standard | — | |
Replacements:90105-12053 (fitment: unknown) | |||
| 90178-T0022 | standard | — | |
| 90178-T0019 | standard | — | |
Replacements:94151-80800 (fitment: unknown) | |||
| 90105-T0082 | standard | — | |
| 96711-19006 | standard | — | |

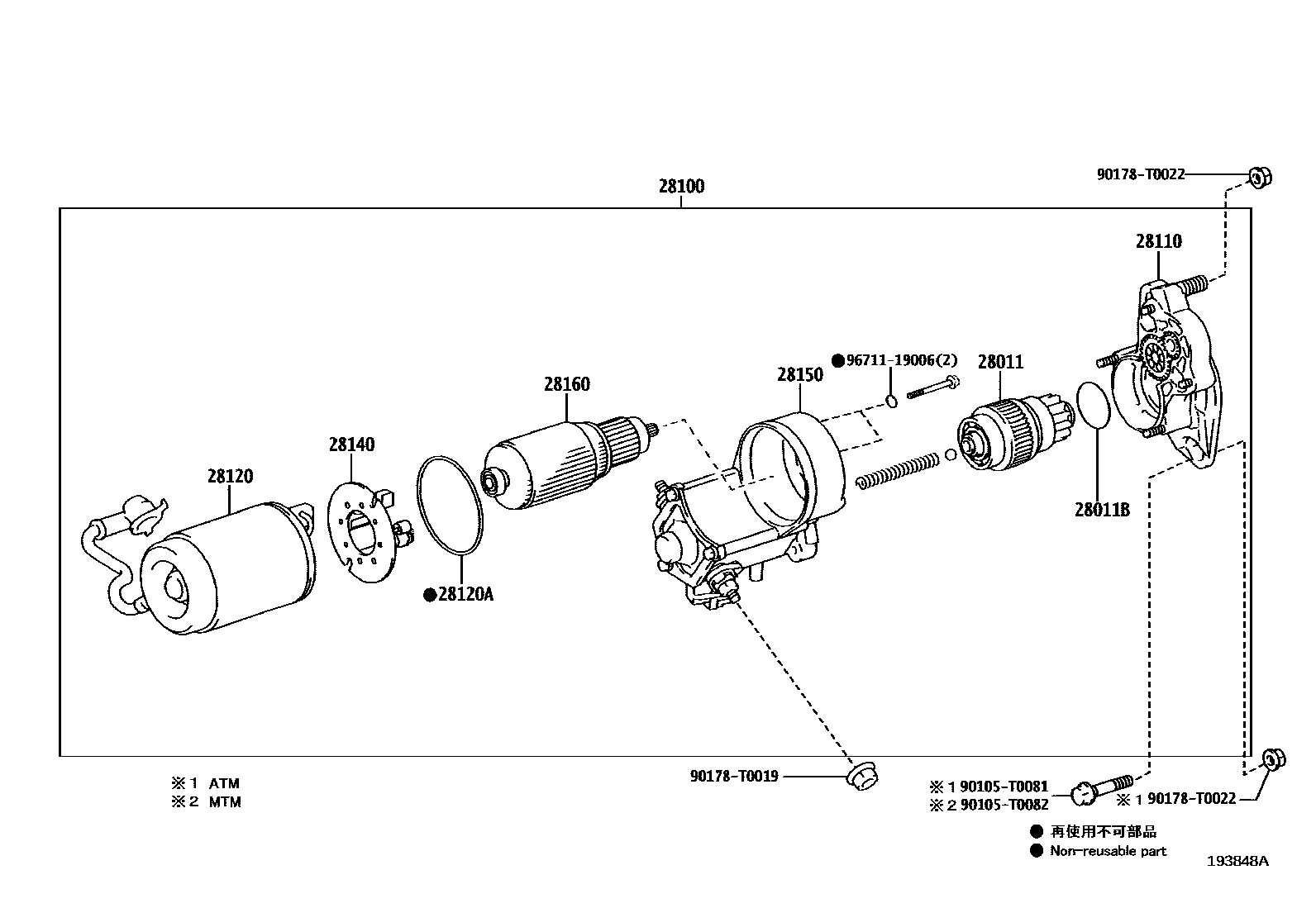

Diagram
11 parts
