General 2007 COROLLA SED WG NZE141R-AEPDK
Catalog: TOYOTA202608 Engine: 1500CC 16-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION Body Description: SEDAN Vehicle Grade: LX TYPE Steering Description: RIGHT-HAND DRIVE VEHICLES Destination Description: GENERAL COUNTRIES Color Code: 1G3 Trim Code: FC16 Production: 200708-201007 Model Short: NZE141R-AEPDK Region: OTHER Native Region: GR

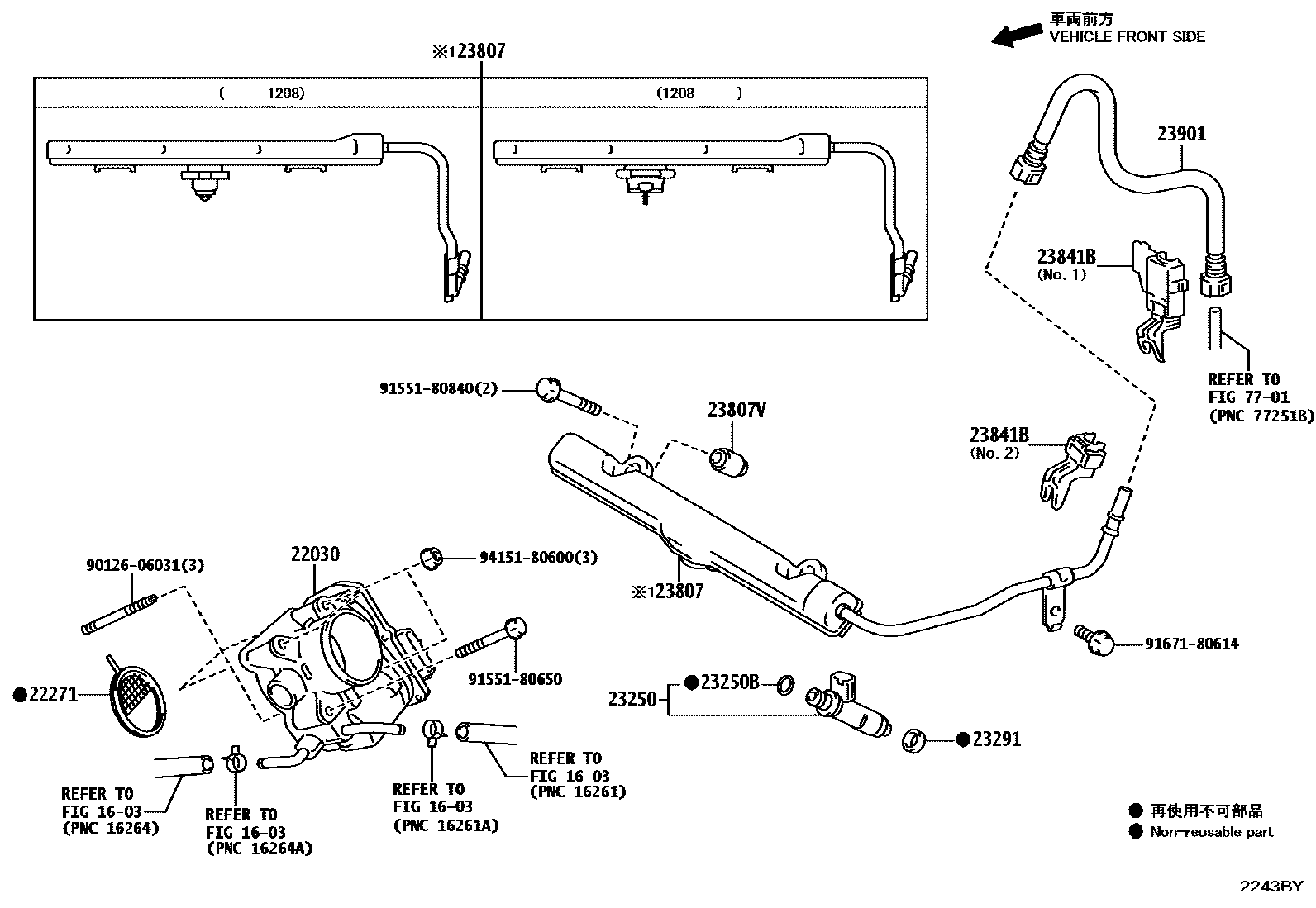

Toyota COROLLA-SED-WG 2007 — Fuel Injection System

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
23841-21040 CLAMP, FUEL PIPE, NO.1(FOR EFI) 1
Note:1NZFE..NZE141..4FC Production:2007-08 – 2010-07 Spec:NO.1 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
23841-21050 CLAMP, FUEL PIPE, NO.1(FOR EFI) 1
Note:1NZFE..NZE141..4FC Production:2007-08 – 2010-07 Spec:NO.2 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
22030-21030 BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR 1
Note:1NZFE..NZE141..4FC Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
22271-21060 GASKET, THROTTLE BODY 1
Note:1NZFE..NZE141..4FC Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
23209-21040 INJECTOR ASSY, FUEL 4
Note:1NZFE..NZE141..4FC Production:2007-08 – 2010-07 Replacements:23209-21120 (fitment: unknown) Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
90301-07037 RING, O(FOR FUEL INJECTOR) 4
Note:1NZFE..NZE141..4FC Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
23291-41010 INSULATOR, INJECTOR VIBRATION 4
Note:1NZFE..NZE141..4FC Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
23891-21010 SPACER, NO.1(FOR DELIVERY PIPE) 2
Note:1NZFE..NZE141..4FC Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
23901-21190 TUBE SUB-ASSY, FUEL 1
Note:1NZFE..NZE141..4FC Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
23807-21051 PIPE SUB-ASSY, FUEL DELIVERY 1
Note:1NZFE..NZE141..4FC Production:2007-08 – 2010-07 Replacements:23807-21090 (fitment: unknown) Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
90126-06031 standard —
91551-80650 standard —
91671-80614 standard —
91551-80840 standard —
94151-80600 standard —

Diagram

15 parts
Toyota COROLLA-SED-WG 2007 — Fuel Injection System
