Open RegionYearModelModelCode Details
General 2016 RAV4 ALA49L-ANTXY
Catalog: TOYOTA202608 Engine: 2200CC DIESEL TURBO Transmission Description: AUTOMATIC TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Vehicle Grade: X TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GENERAL COUNTRIES Color Code: 209 Trim Code: FB20 Production: 201510-201810 Model Short: ALA49L-ANTXY Region: OTHER Native Region: GR

Toyota RAV4 2016 — Battery & Battery Cable

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
90982-05061 TERMINAL, BATTERY POSITIVE 1
Note:2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) Production:2015-10 – 2018-10
90982-06070 TERMINAL, BATTERY NEGATIVE 1
Note:2AD#..ALA49 Production:2015-10 – 2018-10
82821-48020 COVER, CONNECTOR(FOR BATTERY TERMINAL) 1
Note:2AD#..ALA49 Production:2015-10 – 2016-10
28899-26060 INSULATOR, BATTERY 1
Note:2AD#..ALA49 Production:2015-10 – 2018-10
28800-26141 BATTERY 1
Note:2AD#..ALA49 Production:2016-08 – 2018-10 Replacements:28800-26142 (fitment: unknown) Spec:115D31L Rev.ref.no From:0049 Serial Ranges:Other: From D084779 · ALA49 · · 00490010
— Part does not apply to this vehicle configuration. 28897 —
— Part does not apply to this vehicle configuration. 28898 —
94151-80801 standard —

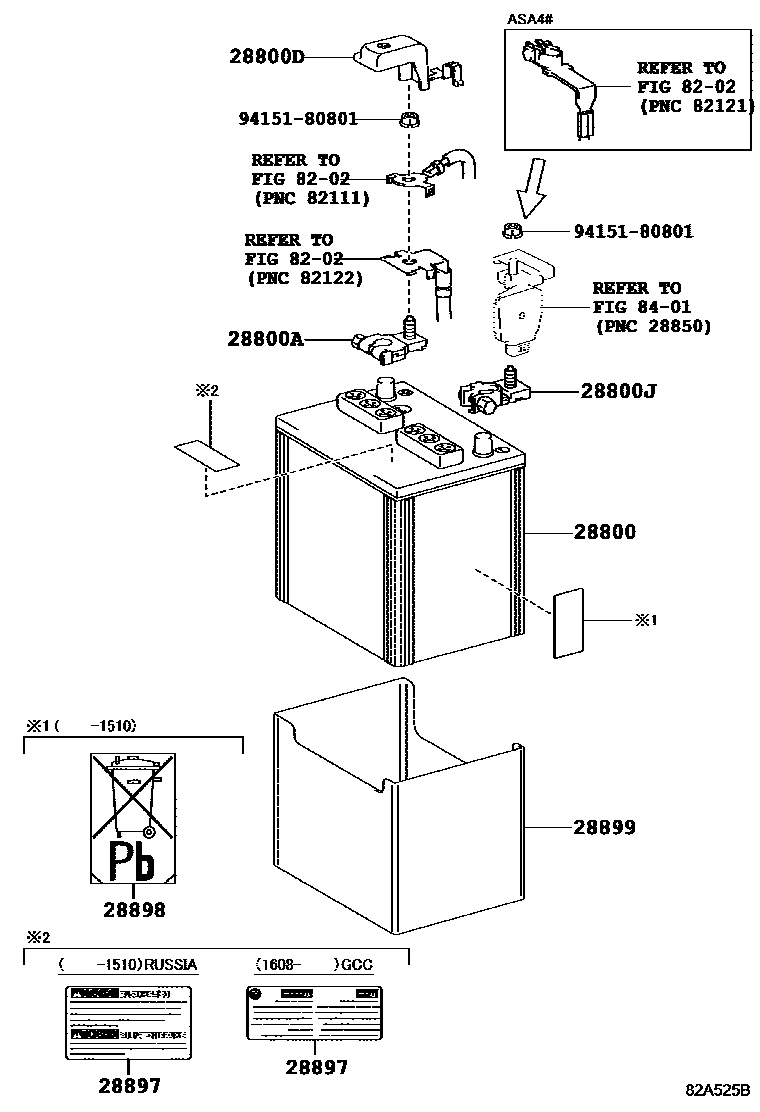

Diagram

6 parts
Toyota RAV4 2016 — Battery & Battery Cable
