General 2016 RAV4 ALA49L-ANTXY
Catalog: TOYOTA202608 Engine: 2200CC DIESEL TURBO Transmission Description: AUTOMATIC TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Vehicle Grade: X TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GENERAL COUNTRIES Color Code: 209 Trim Code: FB20 Production: 201510-201810 Model Short: ALA49L-ANTXY Region: OTHER Native Region: GR

Toyota RAV4 2016 — Rear Wiper

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
85130-42070 MOTOR ASSY, REAR WIPER 1
Note:ALA49..6F..X;ALA49,AVA4#..6FC,A Production:2015-10 – 2018-10
90179-06158 NUT (FOR REAR WIPER ARM SETTING) 1
Note:ALA49..6F..X;ALA49,AVA4#..6FC,A Production:2015-10 – 2018-10
85143-42040 WASHER, REAR WIPER LINK PIVOT, NO.1 1
Note:ALA49..6F..X;ALA49,AVA4#..6FC,A Production:2015-10 – 2018-10
85241-42090 ARM ASSY, REAR WIPER 1
Note:ALA49..6F..X;ALA49,AVA4#..6FC,A Production:2015-10 – 2018-10
85242-42040 BLADE ASSY, REAR WIPER 1
Note:ALA49..6F..X;ALA49,AVA4#..6FC,A Production:2015-10 – 2018-10
85214-42060 RUBBER, REAR WIPER 1
Note:ALA49..6F..X;ALA49,AVA4#..6FC,A Production:2015-10 – 2018-10
85292-42010 COVER, REAR WIPER ARM 1
Note:ALA49..6F..X;ALA49,AVA4#..6FC,A Production:2015-10 – 2018-10

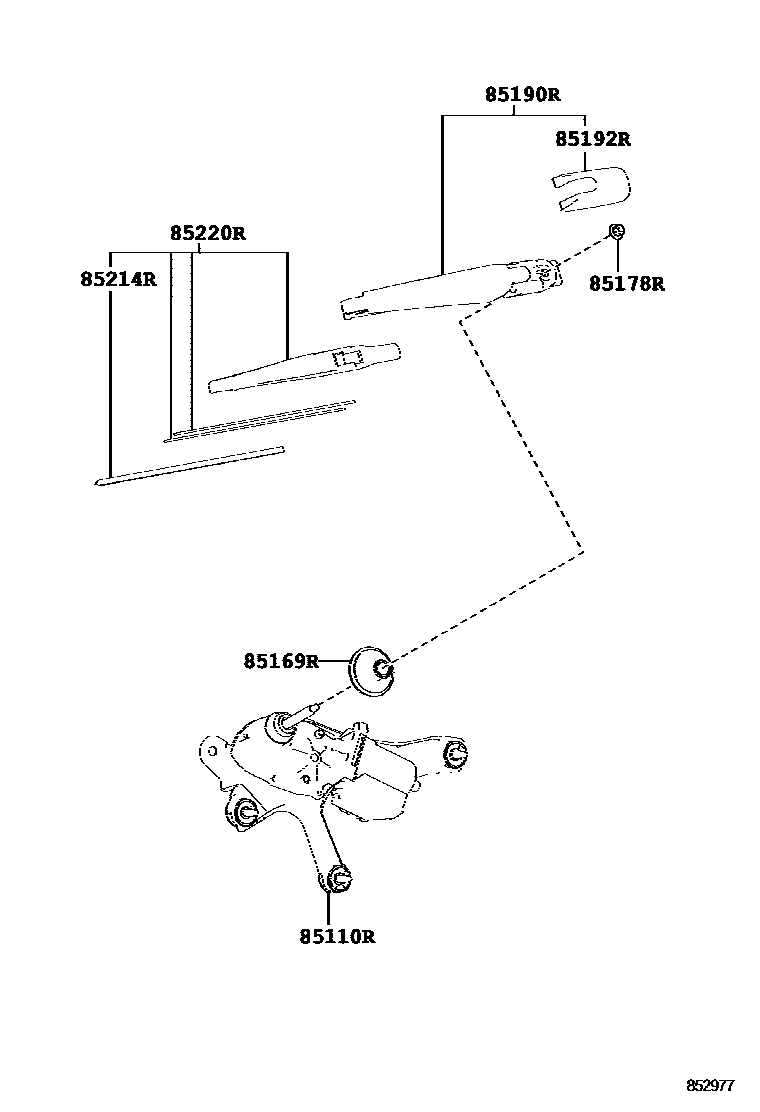

Diagram

7 parts
Toyota RAV4 2016 — Rear Wiper
