General 2016 RAV4 ALA49L-ANTXY
Catalog: TOYOTA202608 Engine: 2200CC DIESEL TURBO Transmission Description: AUTOMATIC TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Vehicle Grade: X TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GENERAL COUNTRIES Color Code: 209 Trim Code: FB20 Production: 201510-201810 Model Short: ALA49L-ANTXY Region: OTHER Native Region: GR

Toyota RAV4 2016 — Engine Oil Cooler

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
15710-0R011 COOLER ASSY, OIL 1
Note:2AD#..ALA49 Production:2015-10 – 2018-10
15781-26031 BRACKET, OIL COOLER, NO.1 1
Note:2AD#..ALA49 Production:2015-10 – 2018-10
90301-24018 RING, O(FOR OIL COOLER) 4
Note:2AD#..ALA49 Production:2015-10 – 2018-10
90301-29013 RING, O, NO.2 2
Note:2AD#..ALA49 Production:2015-10 – 2018-10
90126-06011 standard —
90119-W0010 standard —
Replacements:90119-06938 (fitment: unknown)
90105-W0015 standard —
Replacements:91551-80635 (fitment: unknown)
90178-W0019 standard —
Replacements:94151-80600 (fitment: unknown)
94151-80600 standard —

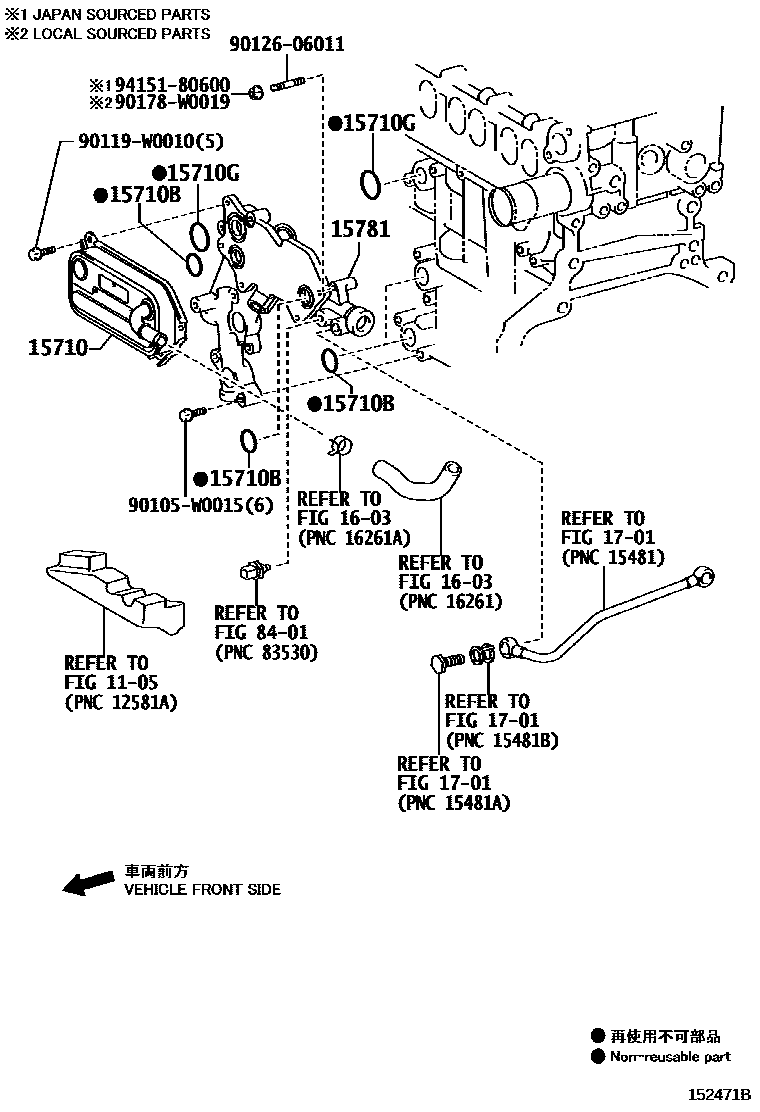

Diagram

9 parts
Toyota RAV4 2016 — Engine Oil Cooler
