Open RegionYearModelModelCode Details
General 2016 RAV4 ALA49L-ANTXY
Catalog: TOYOTA202608 Engine: 2200CC DIESEL TURBO Transmission Description: AUTOMATIC TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Vehicle Grade: X TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GENERAL COUNTRIES Color Code: 209 Trim Code: FB20 Production: 201510-201810 Model Short: ALA49L-ANTXY Region: OTHER Native Region: GR

Toyota RAV4 2016 — Starter

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
28021-26180 CLUTCH SUB-ASSY, STARTER CENTER BEARING 1
Note:2AD#..ALA49 Production:2015-10 – 2018-10
28150-37020 SWITCH ASSY, MAGNET STARTER 1
Note:2AD#..ALA49 Production:2015-10 – 2018-10
28120-26180 YOKE ASSY, STARTER 1
Note:2AD#..ALA49 Production:2015-10 – 2018-10
28160-26180 ARMATURE ASSY, STARTER 1
Note:2AD#..ALA49 Production:2015-10 – 2018-07
28100-26181 STARTER ASSY 1
Note:2AD#..ALA49 Production:2015-10 – 2018-10 Spec:12V 2.0KW
28140-38070 HOLDER ASSY, STARTER BRUSH 1
Note:2AD#..ALA49 Production:2015-10 – 2018-10
90179-08204 standard —
90119-12042 standard —

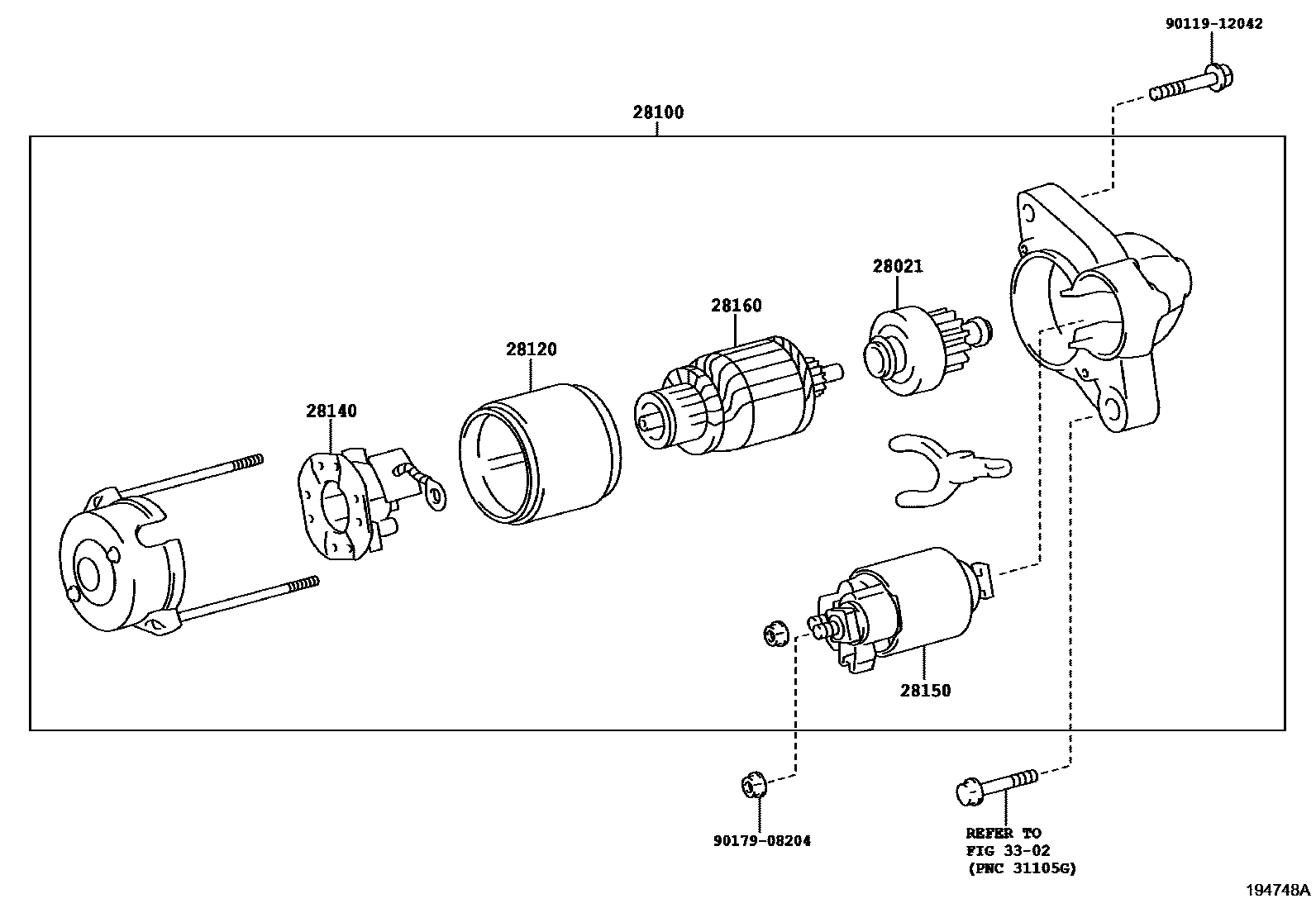

Diagram

8 parts
Toyota RAV4 2016 — Starter
