General 2016 RAV4 ASA42L-ANTGK
Catalog: TOYOTA202608 Engine: 2500CC 16-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Vehicle Grade: G TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GENERAL COUNTRIES Color Code: 209 Trim Code: LA20 Production: 201212-201510 Model Short: ASA42L-ANTGK Region: OTHER Native Region: GR

Toyota RAV4 2016 — Windshield Wiper

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
85110-42181 MOTOR ASSY, WINDSHIELD WIPER 1
Note:ASA4#,ZSA4#..LHD;ALA49..6F..(G,M)..GEN Production:2015-10 – 2018-12
85150-42160 LINK ASSY, WINDSHIELD WIPER 1
Note:ASA4#,ZSA4#..LHD;ALA49..6F..(G,M)..GEN Production:2015-10 – 2018-12
82375-48020 WIRE, WIPER MOTOR 1
Note:ASA4#,ZSA4#;ALA49..6F..(G,M) Production:2015-10 – 2018-12
85211-42140 ARM, FRONT WIPER, RH 1
Note:ASA4#,ZSA4#..LHD;ALA49..6F..(G,M)..GEN Production:2015-10 – 2018-12
85212-42130 BLADE, FR WIPER, RH 1
Note:ASA4#,ZSA4#..LHD;ALA49..6F..(G,M)..GEN Production:2015-10 – 2018-12
85222-42120 BLADE, FR WIPER, LH 1
Note:ASA4#,ZSA4#..LHD;ALA49..6F..(G,M)..GEN Production:2015-10 – 2018-12
— Part does not apply to this vehicle configuration. 89941 —
— Part does not apply to this vehicle configuration. 89944 —
85214-28090 RUBBER, WIPER, RH 1
Note:ASA4#,ZSA4#..LHD;ALA49..6F..(G,M)..GEN Production:2015-10 – 2018-12
85214-52110 RUBBER, WIPER, LH 1
Note:ASA4#,ZSA4#..LHD;ALA49..6F..(G,M)..GEN Production:2015-10 – 2018-12
90182-10006 NUT (FOR FRONT WIPER ARM SETTING) 2
Note:ASA4#,ZSA4#;ALA49..6F..(G,M) Production:2015-10 – 2018-12
85292-13010 COVER, WINDSHIELD WIPER ARM 2
Note:ASA4#,ZSA4#;ALA49..6F..(G,M) Production:2015-10 – 2018-12
— Part does not apply to this vehicle configuration. 89943 —
85221-42140 ARM, FRONT WIPER, LH 1
Note:ASA4#,ZSA4#..LHD;ALA49..6F..(G,M)..GEN Production:2015-10 – 2018-12
90119-06864 standard —

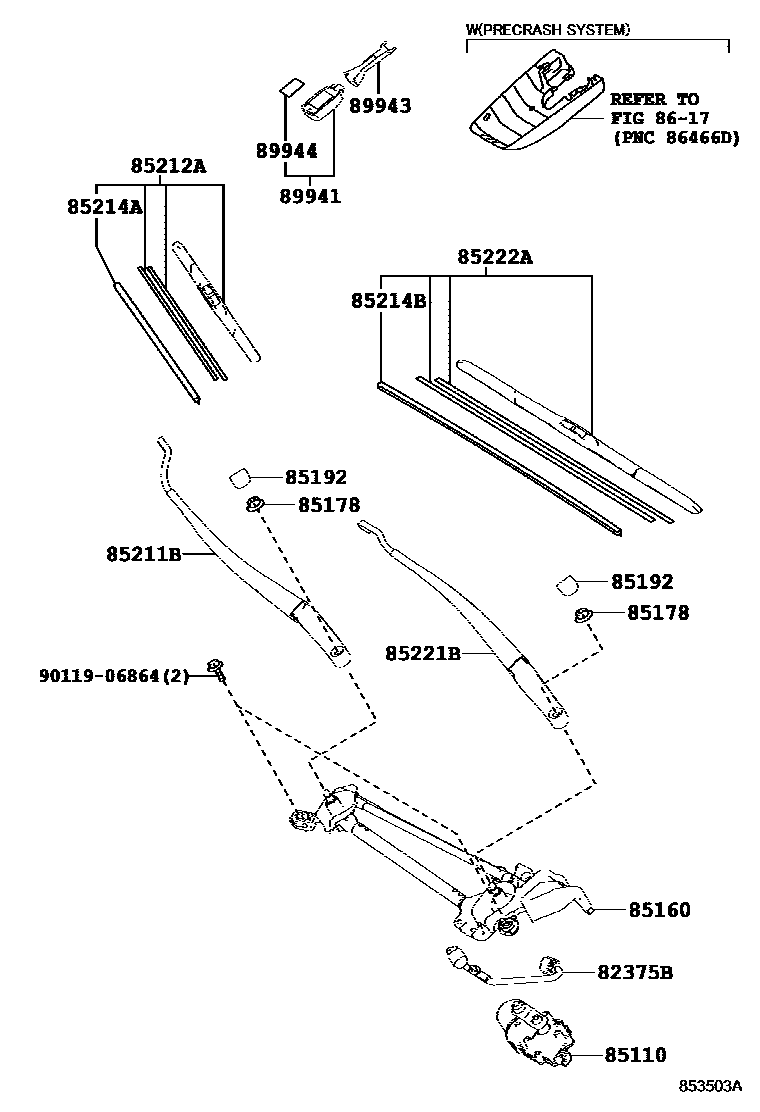

Diagram

12 parts
Toyota RAV4 2016 — Windshield Wiper
