Toyota RAV4 2015 — Console Box & Bracket
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 58804-42050-C0 | PANEL SUB-ASSY, CONSOLE, UPPER | 1 | |
Note:ASA4#..LHD..6FC..X Production:2012-12 – 2015-10 Spec:BLACK,TRIM2#,4# | |||
| 58805-42050-C0 | PANEL SUB-ASSY, CONSOLE, UPPER REAR | 1 | |
Note:ASA4#..X;ZSA42..X..ARL Production:2012-12 – 2015-10 Spec:BLACK,TRIM2#,4# | |||
| 58815-42030 | CARPET, CONSOLE BOX | 1 | |
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10 | |||
| 58901-42090-C0 | BOX SUB-ASSY, CONSOLE, REAR | 1 | |
Note:ASA4#..LHD..X Production:2012-12 – 2015-10 Spec:BLACK,TRIM2#,4# | |||
| 58903-42010-C0 | PANEL SUB-ASSY, CONSOLE REAR END | 1 | |
Note:ASA4#..X;ZSA42..X..ARL Production:2012-12 – 2015-10 Spec:BLACK,TRIM2#,4# | |||
| 58905-42040-C0 | DOOR SUB-ASSY, CONSOLE COMPARTMENT | 1 | |
Note:ASA4#..X;ZSA42..X..ARL Production:2012-12 – 2015-10 Spec:BLACK,TRIM2#,4# | |||
| 58908-12080 | LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | 1 | |
Note:ASA4#,ZSA4#..X;ASA44,ZSA42..6F..G Production:2012-12 – 2015-10 | |||
| 58959-42020 | CUSHION, CONSOLE COMPARTMENT DOOR | 2 | |
Note:ASA4#,ZSA4#..X;ASA44,ZSA42..6F..G Production:2012-12 – 2015-10 | |||
| 58963-47010 | SHAFT, CONSOLE COMPARTMENT DOOR HINGE | 1 | |
Note:ASA4#,ZSA4#..X;ASA44,ZSA42..6F..G Production:2012-12 – 2015-10 | |||
| 58968-42010 | SHIM, CONSOLE COMPARTMENT DOOR STOPPER | 2 | |
Note:ASA4#,ZSA4#..X;ASA44,ZSA42..6F..G Production:2012-12 – 2015-10 | |||
| 58996-42050 | BRACKET, CONSOLE BOX MOUNTING, NO.2 | 1 | |
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10 | |||
| 58809-42011-C1 | COVER SUB-ASSY, PARKING BRAKE HOLE | 1 | |
Note:ASA4#..LHD..X;ZSA4#..A..X..GEN Production:2015-03 – 2015-10 Spec:BLACK,TRIM2#,4# | |||
| — | Part does not apply to this vehicle configuration. | 58808 | — |
| 90467-10203 | standard | — | |
| 90467-12080 | standard | — | |
| 90468-05138 | standard | — | |
| 91673-80614 | standard | — | |
| 91673-80616 | standard | — | |
| 93540-54012 | standard | — | |
| 93560-54012 | standard | — | |
| 93568-55014 | standard | — | |
| 93568-55016 | standard | — | |
| 90468-05135 | standard | — | |

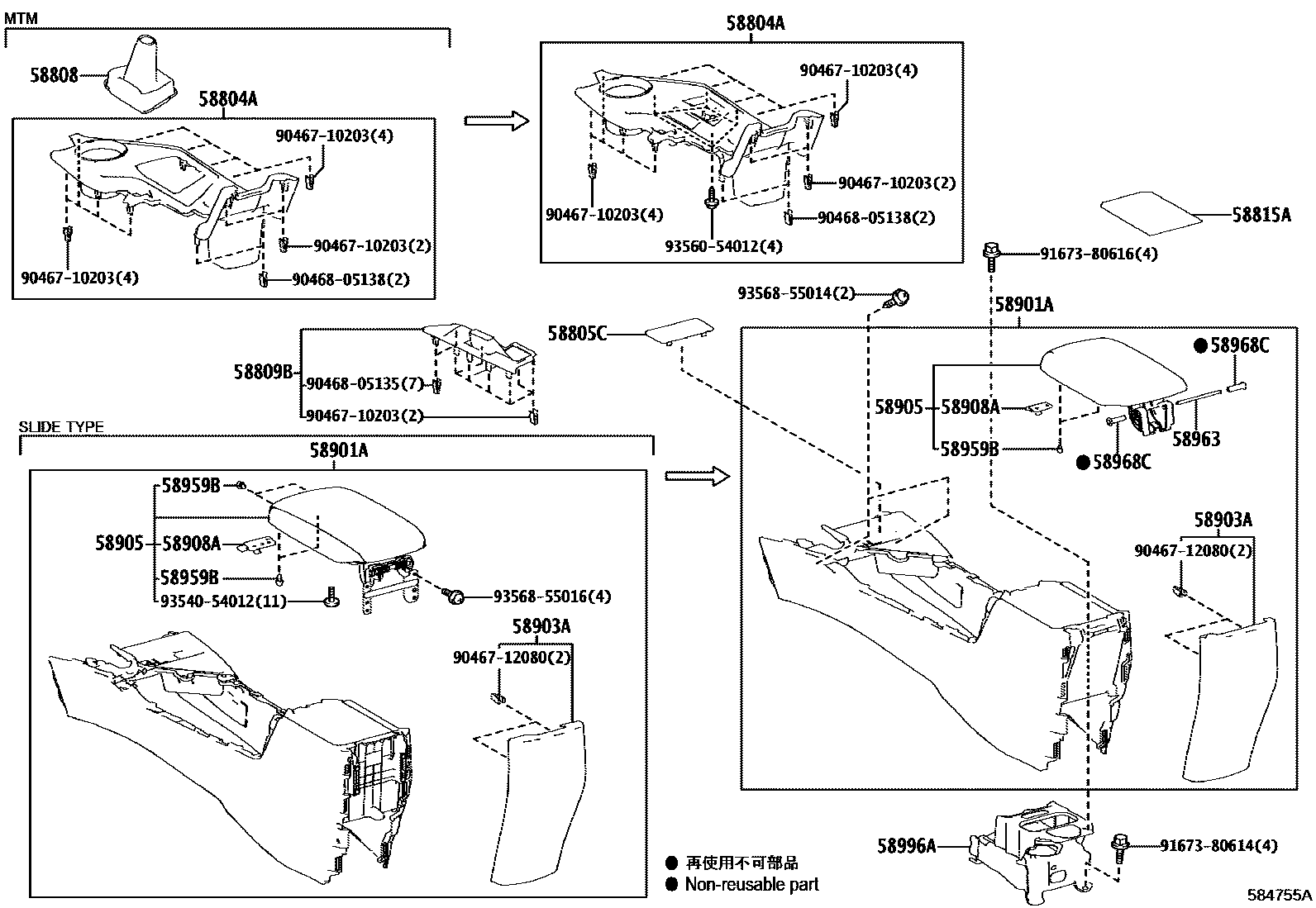

Diagram
22 parts
