General 2021 AVALON CHINA MXXA50L-JEXBBC
Catalog: TOYOTA202608 Engine: 2000CC 16-VALVE DOHC Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Body Description: SEDAN Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: CHINA Doors Description: 4-DOOR Color Code: 209 Trim Code: LC20 Production: 201910-202106 Model Short: MXXA50L-JEXBBC Region: OTHER Native Region: GR

Toyota Avalon-China 2021 — Engine Oil Pump

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
13507-24020 CHAIN SUB-ASSY, OIL PUMP DRIVE 1
Note:M20..MXXA50 Production:2021-06 – 2022-02 Spec:*132 Spec Note:*132(ENGINE NO.=0XXXXXX-9XXXXXX)
13507-F2020 CHAIN SUB-ASSY, OIL PUMP DRIVE 1
Note:M20..MXXA50 Production:2021-06 – 2023-03 Spec:*633 Spec Note:*633(ENGINE NO.=GA*****-GZ***** OR KA*****-KZ*****)
13549-25020 PLATE, CHAIN TENSIONER 1
Note:M20..MXXA50 Production:2021-06 – 2022-02 Spec:*132 Spec Note:*132(ENGINE NO.=0XXXXXX-9XXXXXX)
13549-F2020 PLATE, CHAIN TENSIONER 1
Note:M20..MXXA50 Production:2021-06 – 2023-03 Spec:*633 Spec Note:*633(ENGINE NO.=GA*****-GZ***** OR KA*****-KZ*****)
13565-25010 SPRING, CHAIN DAMPER 1
Note:M20..MXXA50 Production:2021-06 – 2022-02 Spec:*132 Spec Note:*132(ENGINE NO.=0XXXXXX-9XXXXXX)
13565-F2020 SPRING, CHAIN DAMPER 1
Note:M20..MXXA50 Production:2021-06 – 2023-03 Spec:*633 Spec Note:*633(ENGINE NO.=GA*****-GZ***** OR KA*****-KZ*****)
15100-24020 PUMP ASSY, OIL 1
Note:M20..MXXA50 Production:2021-06 – 2022-02 Spec:*132 Spec Note:*132(ENGINE NO.=0XXXXXX-9XXXXXX)
15100-F2030 PUMP ASSY, OIL 1
Note:M20..MXXA50 Production:2021-06 – 2023-03 Spec:*633 Spec Note:*633(ENGINE NO.=GA*****-GZ***** OR KA*****-KZ*****)
15104-24010 STRAINER SUB-ASSY, OIL 1
Note:M20..MXXA50 Production:2021-06 – 2022-02 Spec:*132 Spec Note:*132(ENGINE NO.=0XXXXXX-9XXXXXX)
15104-F2050 STRAINER SUB-ASSY, OIL 1
Note:M20..MXXA50 Production:2021-06 – 2023-03 Spec:*633 Spec Note:*633(ENGINE NO.=GA*****-GZ***** OR KA*****-KZ*****)
15147-25010 GASKET, OIL STRAINER 1
Note:M20..MXXA50 Production:2021-06 – 2022-02 Spec:*132 Spec Note:*132(ENGINE NO.=0XXXXXX-9XXXXXX)
15147-F2010 GASKET, OIL STRAINER 1
Note:M20..MXXA50 Production:2021-06 – 2023-03 Spec:*633 Spec Note:*633(ENGINE NO.=GA*****-GZ***** OR KA*****-KZ*****)
15163-25010 SPROCKET, OIL PUMP DRIVE SHAFT 1
Note:M20..MXXA50 Production:2021-06 – 2022-02 Spec:*132 Spec Note:*132(ENGINE NO.=0XXXXXX-9XXXXXX)
15163-F2020 SPROCKET, OIL PUMP DRIVE SHAFT 1
Note:M20..MXXA50 Production:2021-06 – 2023-03 Spec:*633 Spec Note:*633(ENGINE NO.=GA*****-GZ***** OR KA*****-KZ*****)
90119-06A23 standard —
90119-C0619 standard —
91551-00845 standard —
91552-G1025 standard —
90105-C0340 standard —

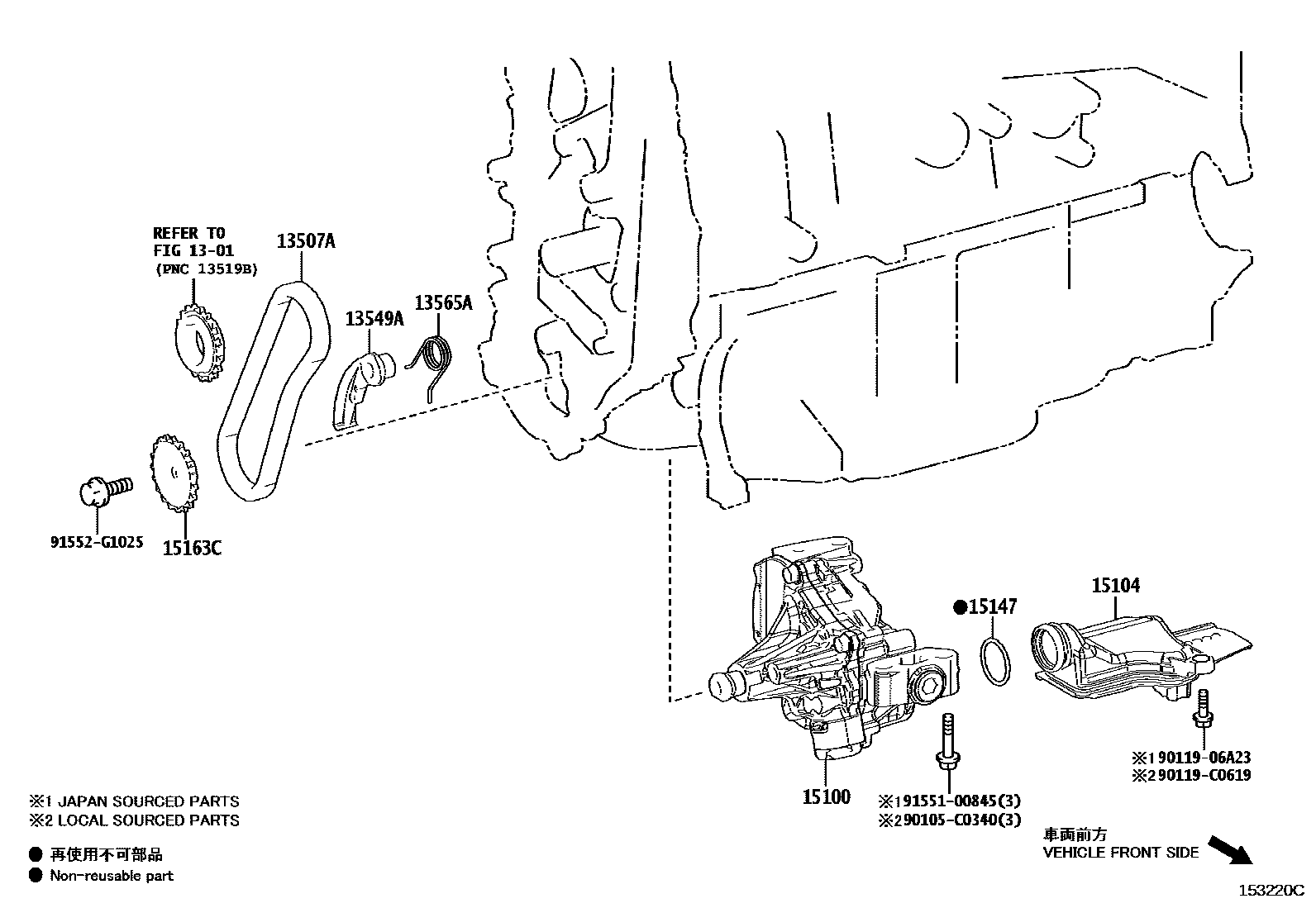

Diagram

19 parts
Toyota Avalon-China 2021 — Engine Oil Pump
