Open RegionYearModelModelCode Details
General 2025 COROLLA NRE210L-GEXNZC
Catalog: TOYOTA202608 Engine: 1200CC 16-VALVE DOHC Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Body Description: SEDAN Vehicle Grade: ENTRY TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: CHINA Doors Description: 4-DOOR Color Code: 040 Trim Code: FD20 Production: 201908-999999 Model Short: NRE210L-GEXNZC Region: OTHER Native Region: GR

Toyota Corolla 2025 — PRE-COLLISION System

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
86464-0E020 LATCH, FORWARD RECOGNITION 1
Note:NRE210..ENTRY,MID Production:2021-01 – …
8646C-02030 CAMERA, FORWARD RECOGNITION 1
Note:NRE210..ENTRY Production:2020-07 – …
86401-02010 HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER 1
Note:NRE210..ENTRY,MID Production:2020-09 – …
86466-02010 COVER, FORWARD RECOGNITION, NO.1 1
Note:NRE210..ENTRY,MID Production:2020-08 – …
86466-02020 COVER, FORWARD RECOGNITION, NO.2 1
Note:NRE210..ENTRY,MID Production:2020-08 – …
90467-05171 standard —

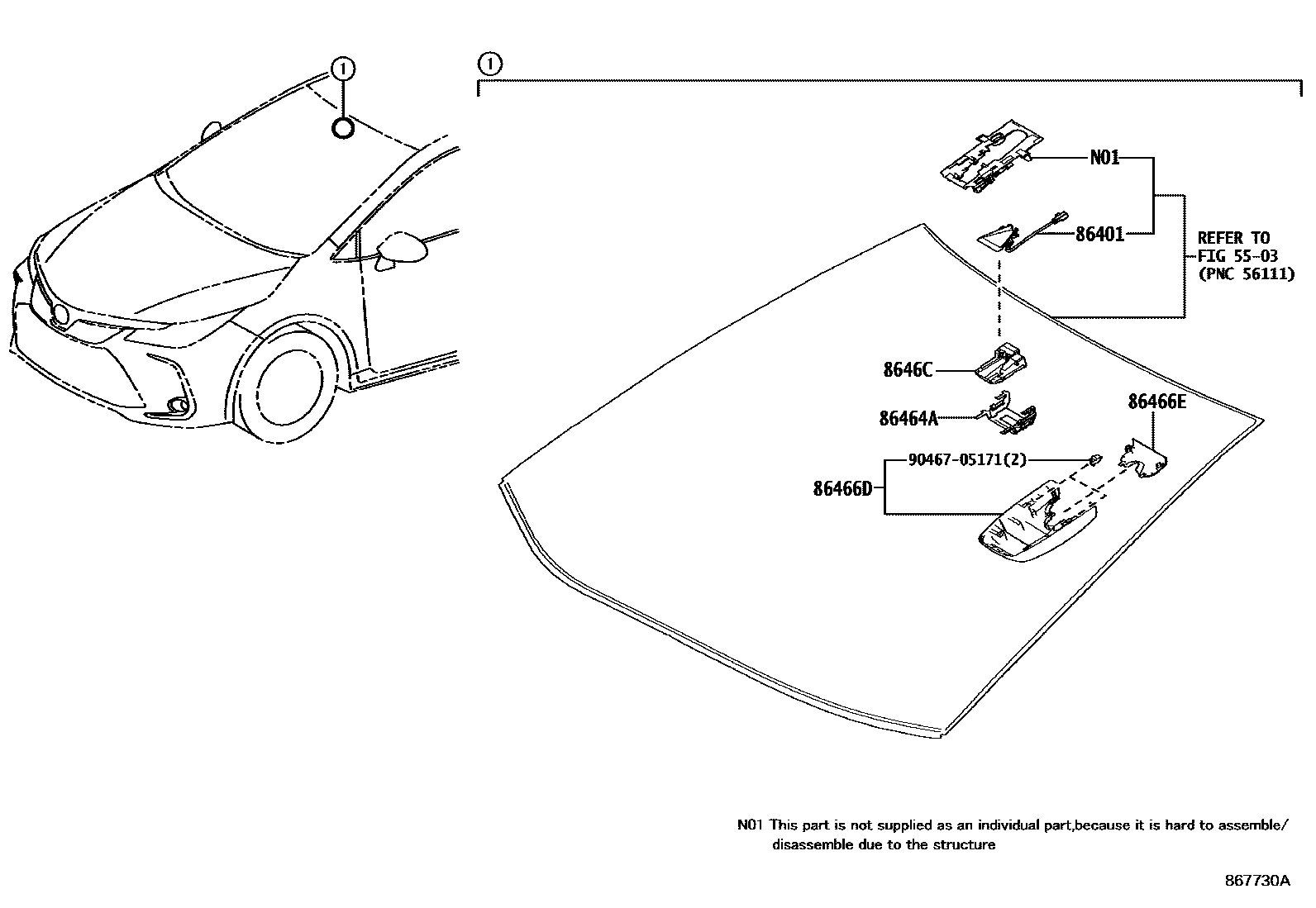

Diagram

6 parts
Toyota Corolla 2025 — PRE-COLLISION System
