Toyota RAV4-SFTM 2022 — Console Box & Bracket
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 58803-0R050-C1 | BOX SUB-ASSY, CONSOLE CUP HOLDER | 1 | |
Note:AXAH5#,MXAA5#..M Production:2020-05 – 2023-03 Spec:BLACK,TRIM10,20,40 | |||
| 58804-0R210 | PANEL SUB-ASSY, CONSOLE, UPPER | 1 | |
Note:AXAH5#,MXAA5# Production:2019-11 – 2023-03 | |||
| 58808-0R040-C0 | COVER SUB-ASSY, SHIFTING HOLE | 1 | |
Note:AXAH5#,MXAA5#..G,M Production:2019-11 – 2023-03 Spec:BLACK,TRIM1#,2#,4# | |||
| 58810-0R040-C0 | BOX ASSY, CONSOLE | 1 | |
Note:AXAH52,MXAA5#..M Production:2019-11 – 2023-03 Spec:BLACK,TRIM1#,2#,4# | |||
| 58815-0R080 | CARPET, CONSOLE BOX | 1 | |
Note:AXAH5#,MXAA5# Production:2019-11 – 2023-03 | |||
| 58816-0R060-C0 | INSERT, CONSOLE BOX, FRONT NO.1 | 1 | |
Note:AXAH5#,MXAA5#..G,M Production:2019-11 – 2023-03 Spec:BLACK,TRIM1#,2#,4# | |||
| 58817-0R061-C0 | INSERT, CONSOLE BOX, FRONT NO.2 | 1 | |
Note:AXAH5#,MXAA5#..G,M Production:2021-12 – 2023-03 Spec:BLACK,TRIM1#,2#,4# | |||
| — | Part does not apply to this vehicle configuration. | 58825A | — |
| 58848-0R020 | COVER, SHIFT LEVER HOLE | 1 | |
Note:AXAH5#,MXAA5# Production:2019-11 – 2023-03 | |||
| 58860-0R020-C0 | REGISTER ASSY, CONSOLE BOX | 1 | |
Note:AXAH5#,MXAA5#..G,M Production:2019-11 – 2023-03 Spec:BLACK,TRIM1#,2#,4# | |||
| 58875-0R020 | SPACER, CONSOLE BOX | 1 | |
Note:AXAH5#,MXAA5# Production:2019-11 – 2023-03 | |||
| 58903-0R110-C0 | PANEL SUB-ASSY, CONSOLE REAR END | 1 | |
Note:AXAH5#,MXAA5#..G,M Production:2019-11 – 2023-03 Spec:BLACK,TRIM1#,2#,4# | |||
| 58911-0R070-C0 | PANEL, BOX, NO.1 | 1 | |
Note:AXAH5#,MXAA5#..G,M Production:2019-11 – 2023-03 Spec:BLACK,TRIM1#,2#,4# | |||
| 58912-0R060-C0 | PANEL, BOX SIDE, NO.2 | 1 | |
Note:AXAH5#,MXAA5#..G,M Production:2019-11 – 2023-03 Spec:BLACK,TRIM1#,2#,4# | |||
| 58913-0R020 | PANEL, BOX, NO.3 | 1 | |
Note:AXAH5#,MXAA5# Production:2019-11 – 2023-03 | |||
| 58949-0R030 | SPRING, CONSOLE BOX MOUNTING BRACKET | 1 | |
Note:AXAH52,MXAA5#..M,X Production:2019-11 – 2023-03 | |||
| 58966-0R030 | PIN, CONSOLE COMPARTMENT DOOR STOPPER | 1 | |
Note:AXAH5#,MXAA5# Production:2019-11 – 2023-03 | |||
| — | Part does not apply to this vehicle configuration. | 58974 | — |
| 58985-0R090 | RETAINER, CONSOLE BOX | 1 | |
Note:AXAH5#,MXAA5# Production:2019-11 – 2023-03 | |||
| 58996-0R080 | BRACKET, CONSOLE BOX MOUNTING, NO.2 | 1 | |
Note:AXAH5#,MXAA5# Production:2019-11 – 2023-03 | |||
| 58813-0R080-C1 | BOX, CONSOLE, UPPER | 1 | |
Note:AXAH5#,MXAA5#..M Production:2019-11 – 2023-03 Spec:BLACK,TRIM1#,2#,4# | |||
| 58805-0R090 | PANEL SUB-ASSY, CONSOLE, UPPER REAR | 1 | |
Note:AXAH5#,MXAA5# Production:2019-11 – 2023-03 | |||
| 58920-0R030-C0 | ARMREST ASSY, REAR CONSOLE | 1 | |
Note:AXAH52,MXAA5#..M Production:2019-11 – 2023-03 Spec:BLACK,TRIM1#,2#,4# | |||
| — | Part does not apply to this vehicle configuration. | 55524A | — |
| 90119-C0107 | standard | — | |
Replacements:91673-80616 (fitment: unknown) | |||
| 90119-C0547 | standard | — | |
| 90467-05171 | standard | — | |
| 90467-05172 | standard | — | |
| 90467-C0088 | standard | — | |
| 90467-07215 | standard | — | |
| 96160-00600 | standard | — | |
| 90467-C0087 | standard | — | |
| 90119-08D23 | standard | — | |

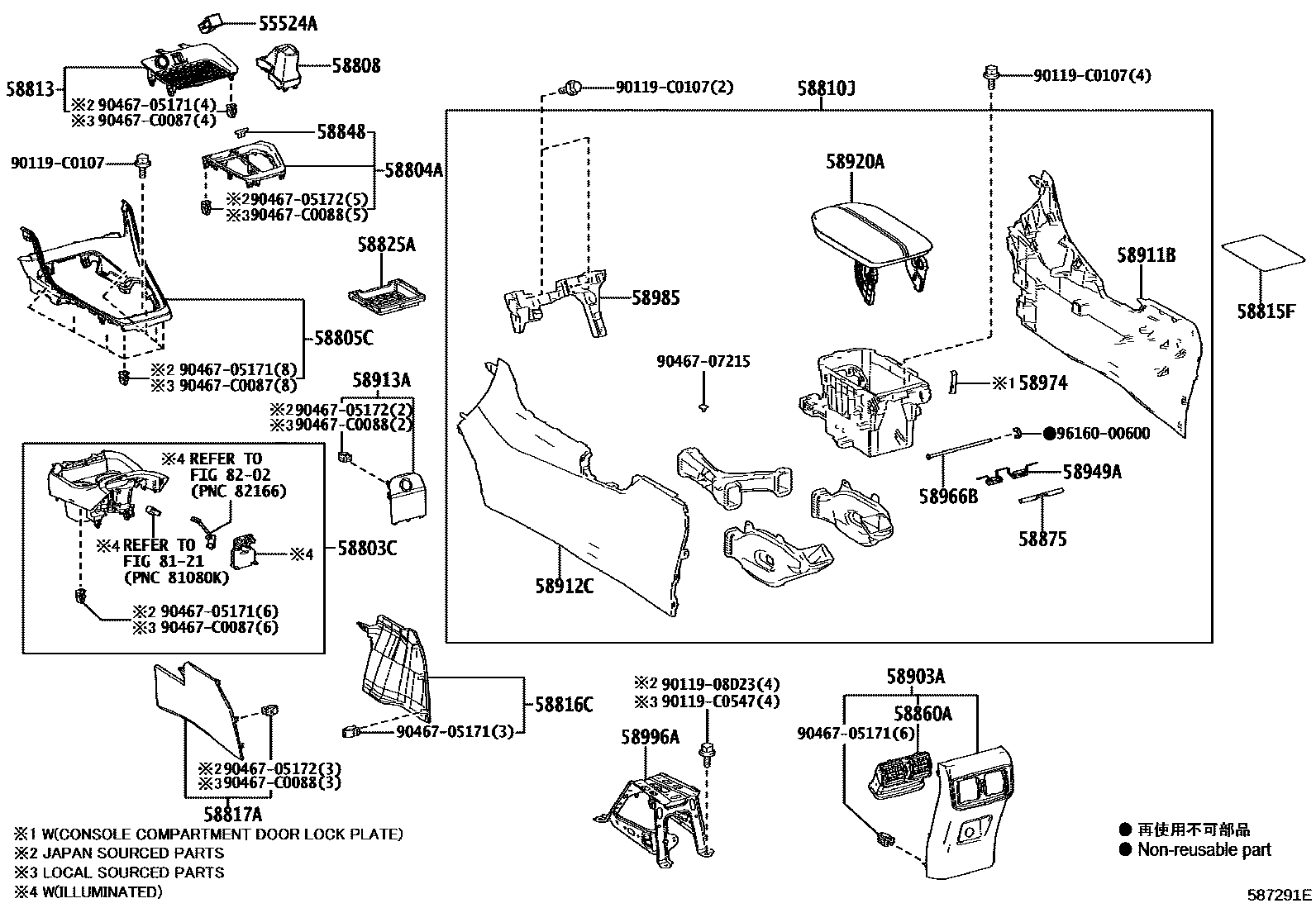

Diagram
30 parts
