Toyota Levin-Hybrid 2023 — Windshield Washer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 85330-02110 | MOTOR AND PUMP ASSY, WINDSHIELD WASHER | 1 | |
Note:MZEA17,ZWE219 Production:2023-04 – … | |||
| 90069-52046 | BUSH, WINDSHIELD WASHER JAR | 1 | |
Note:MZEA17,ZWE219 Production:2023-04 – … | |||
| 85380-02810 | NOZZLE & HOSE ASSY, FR WASHER | 2 | |
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:ANGLE 0 | |||
| 85380-02820 | NOZZLE & HOSE ASSY, FR WASHER | 2 | |
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:ANGLE +2 | |||
| 85380-02830 | NOZZLE & HOSE ASSY, FR WASHER | 2 | |
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:ANGLE -2 | |||
| 85370-02760 | HOSE ASSY, WINDSHIELD WASHER | 1 | |
Note:MZEA17,ZWE219 Production:2023-04 – … | |||
| 85370-02770 | HOSE ASSY, WINDSHIELD WASHER, NO.2 | 1 | |
Note:MZEA17,ZWE219 Production:2023-04 – … | |||
| 85381-0E090 | NOZZLE SUB-ASSY, WASHER | 2 | |
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:ANGLE 0 | |||
| 85381-0E100 | NOZZLE SUB-ASSY, WASHER | 2 | |
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:ANGLE +2 | |||
| 85381-0E110 | NOZZLE SUB-ASSY, WASHER | 2 | |
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:ANGLE -2 | |||
| 90069-46162 | HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | 2 | |
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:L=248,ANGLE 0 | |||
| 90069-46163 | HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | 2 | |
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:L=248,ANGLE +2 | |||
| 90069-46164 | HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | 2 | |
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:L=248,ANGLE -2 | |||
| 90069-46158 | HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | 1 | |
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:L=1050 | |||
| 85373-33030 | GROMMET, WASHER | 1 | |
Note:MZEA17,ZWE219 Production:2023-04 – … | |||
| 90069-46159 | HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | 1 | |
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:L=280 | |||
| 85375-02530 | JOINT, WINDSHIELD WASHER HOSE, NO.3 | 1 | |
Note:MZEA17,ZWE219 Production:2023-04 – … | |||
| 90069-46161 | HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 | 1 | |
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:L=347 | |||
| 85376-02750 | VALVE, WINDSHIELD WASHER HOSE | 1 | |
Note:MZEA17,ZWE219 Production:2023-04 – … | |||
| 85375-02530 | JOINT, WINDSHIELD WASHER HOSE, NO.2 | 1 | |
Note:MZEA17,ZWE219 Production:2023-04 – … | |||
| 90069-46160 | HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | 1 | |
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:L=174 | |||
| 85316-02530 | CAP, WINDSHIELD WASHER JAR | 1 | |
Note:MZEA17,ZWE219 Production:2023-04 – … | |||
| 85319-02530 | INLET WASHER | 1 | |
Note:MZEA17,ZWE219 Production:2023-04 – … | |||
| 90069-52047 | PACKING, WINDSHIELD WASHER INLET HOSE | 1 | |
Note:MZEA17,ZWE219 Production:2023-04 – … | |||
| 85315-02890 | JAR ASSY, WINDSHIELD WASHER | 1 | |
Note:MZEA17,ZWE219 Production:2023-04 – … | |||
| 90069-46165 | HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | 1 | |
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:L=303 | |||
| 85375-02530 | JOINT, WINDSHIELD WASHER HOSE, NO.1 | 1 | |
Note:MZEA17,ZWE219 Production:2023-04 – … | |||
| 90119-06767 | standard | — | |
| 90119-C0186 | standard | — | |
| 85339-02530 | standard | — | |
| 85337-02530 | standard | — | |
| 85338-02530 | standard | — | |
| 82711-52090 | standard | — | |
| 90467-07214 | standard | — | |
| 90467-C0041 | standard | — | |
Replacements:90467-07214 (fitment: unknown) | |||
| 90469-07011 | standard | — | |
| 90469-C0015 | standard | — | |
| 85371-0E040 | standard | — | |

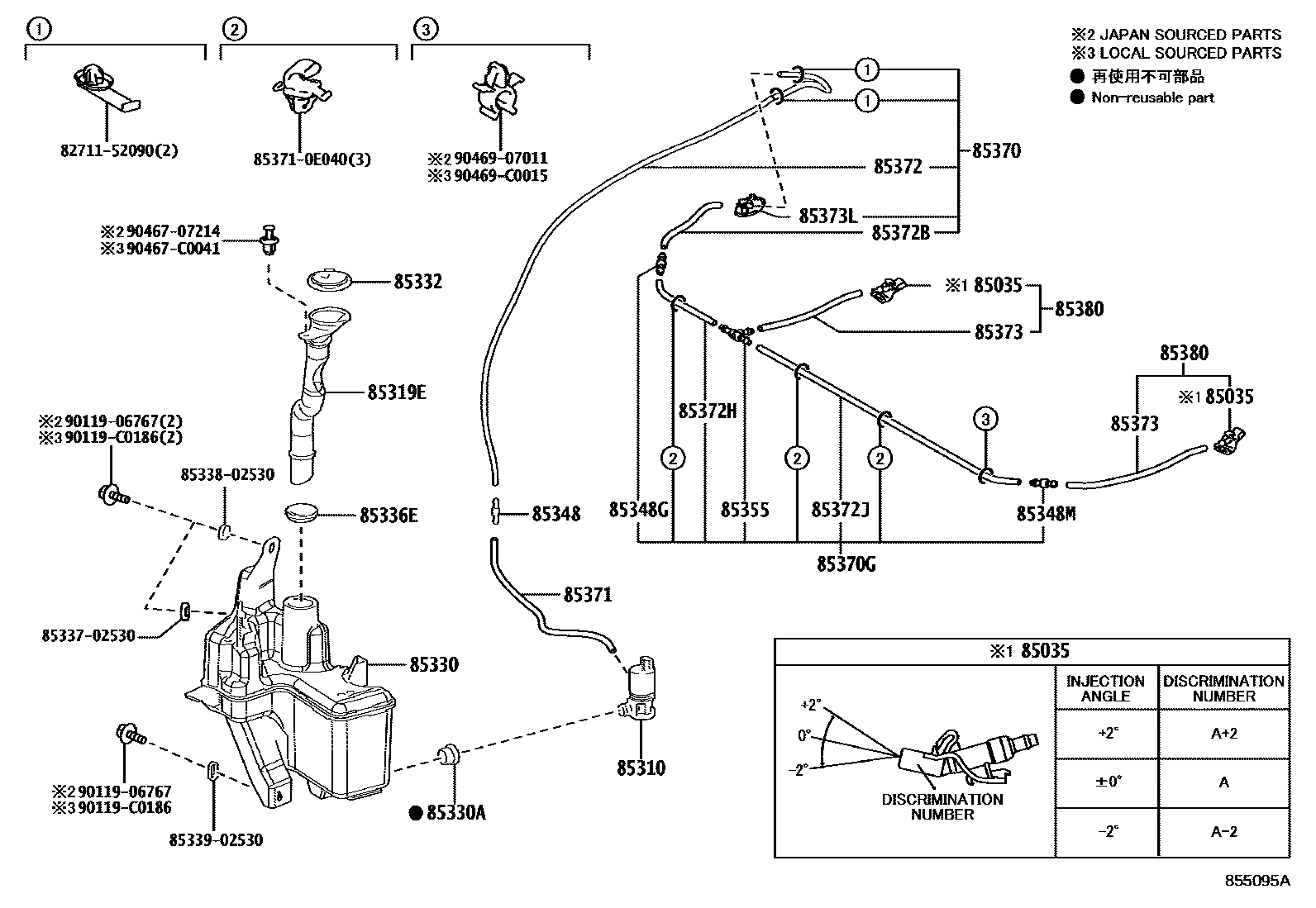

Diagram
38 parts
