Open RegionYearModelModelCode Details
General 2025 CAMRY HYBRID CHINA MXVH80L-JEXSBC
Catalog: TOYOTA202608 Engine: 2000CC 16-VALVE DOHC Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: CHINA Color Code: 209 Trim Code: EC20 Production: 202403-999999 Model Short: MXVH80L-JEXSBC Region: OTHER Native Region: GR

Toyota Camry-Hybrid-China 2025 — Fuel Injection System

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
22030-F2020 BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR 1
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Fitment:Matches · configuration
22271-24020 GASKET, THROTTLE BODY 1
Note:M20..MXVH80 Production:2024-03 – … Spec:(J) Spec Note:(Japan made) Fitment:Matches · configuration
22271-F2070 GASKET, THROTTLE BODY 1
Note:M20..MXVH80 Production:2024-03 – … Spec:(L) Spec Note:(Local made) Fitment:Matches · configuration
23101-F2020 PUMP ASSY, FUEL (ENGINE ROOM SIDE) 1
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Fitment:Matches · configuration
23214-F2100 FLANGE, FUEL PUMP 1
Note:M20..MXVH80 Production:2024-03 – … Fitment:Matches · configuration
23224-25011 GASKET, FUEL PUMP SPACER 1
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Fitment:Matches · configuration
90301-07037 RING, O(FOR FUEL INJECTOR) 4
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Spec:(J) Spec Note:(Japan made) Fitment:Matches · configuration
90301-C0072 RING, O(FOR FUEL INJECTOR) 4
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Replacements:90301-07037 (fitment: unknown) Spec:(L) Spec Note:(Local made) Fitment:Matches · configuration
23209-24010-01 INJECTOR ASSY, FUEL(FOR DIRECT) 4
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Spec:MARK 1,(J),REFER R/M Spec Note:MARK 1,(Japan made),REFER R/M Fitment:Matches · configuration
23209-24010-02 INJECTOR ASSY, FUEL(FOR DIRECT) 4
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Spec:MARK 2,(J),REFER R/M Spec Note:MARK 2,(Japan made),REFER R/M Fitment:Matches · configuration
23209-24010-03 INJECTOR ASSY, FUEL(FOR DIRECT) 4
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Spec:MARK 3,(J),REFER R/M Spec Note:MARK 3,(Japan made),REFER R/M Fitment:Matches · configuration
23209-24010-04 INJECTOR ASSY, FUEL(FOR DIRECT) 4
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Spec:MARK 4,(J),REFER R/M Spec Note:MARK 4,(Japan made),REFER R/M Fitment:Matches · configuration
23209-24010-05 INJECTOR ASSY, FUEL(FOR DIRECT) 4
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Spec:MARK 5,(J),REFER R/M Spec Note:MARK 5,(Japan made),REFER R/M Fitment:Matches · configuration
23209-24010-06 INJECTOR ASSY, FUEL(FOR DIRECT) 4
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Spec:MARK 6,(J),REFER R/M Spec Note:MARK 6,(Japan made),REFER R/M Fitment:Matches · configuration
23209-24010-07 INJECTOR ASSY, FUEL(FOR DIRECT) 4
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Spec:MARK 7,(J),REFER R/M Spec Note:MARK 7,(Japan made),REFER R/M Fitment:Matches · configuration
23209-24010-08 INJECTOR ASSY, FUEL(FOR DIRECT) 4
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Spec:MARK 8,(J),REFER R/M Spec Note:MARK 8,(Japan made),REFER R/M Fitment:Matches · configuration
23209-24010-09 INJECTOR ASSY, FUEL(FOR DIRECT) 4
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Spec:MARK 9,(J),REFER R/M Spec Note:MARK 9,(Japan made),REFER R/M Fitment:Matches · configuration
23209-F2030-01 INJECTOR ASSY, FUEL(FOR DIRECT) 4
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Spec:MARK 1,(L),REFER R/M Spec Note:MARK 1,(Local made),REFER R/M Fitment:Matches · configuration
23209-F2030-02 INJECTOR ASSY, FUEL(FOR DIRECT) 4
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Spec:MARK 2,(L),REFER R/M Spec Note:MARK 2,(Local made),REFER R/M Fitment:Matches · configuration
23209-F2030-03 INJECTOR ASSY, FUEL(FOR DIRECT) 4
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Spec:MARK 3,(L),REFER R/M Spec Note:MARK 3,(Local made),REFER R/M Fitment:Matches · configuration
23209-F2030-04 INJECTOR ASSY, FUEL(FOR DIRECT) 4
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Spec:MARK 4,(L),REFER R/M Spec Note:MARK 4,(Local made),REFER R/M Fitment:Matches · configuration
23209-F2030-05 INJECTOR ASSY, FUEL(FOR DIRECT) 4
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Spec:MARK 5,(L),REFER R/M Spec Note:MARK 5,(Local made),REFER R/M Fitment:Matches · configuration
23209-F2030-06 INJECTOR ASSY, FUEL(FOR DIRECT) 4
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Spec:MARK 6,(L),REFER R/M Spec Note:MARK 6,(Local made),REFER R/M Fitment:Matches · configuration
23209-F2030-07 INJECTOR ASSY, FUEL(FOR DIRECT) 4
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Spec:MARK 7,(L),REFER R/M Spec Note:MARK 7,(Local made),REFER R/M Fitment:Matches · configuration
23209-F2030-08 INJECTOR ASSY, FUEL(FOR DIRECT) 4
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Spec:MARK 8,(L),REFER R/M Spec Note:MARK 8,(Local made),REFER R/M Fitment:Matches · configuration
23209-F2030-09 INJECTOR ASSY, FUEL(FOR DIRECT) 4
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Spec:MARK 9,(L),REFER R/M Spec Note:MARK 9,(Local made),REFER R/M Fitment:Matches · configuration
23209-29185 INJECTOR ASSY, FUEL(FOR PORT) 4
Note:M20..MXVH80 Production:2024-03 – … Spec:(J) Spec Note:(Japan made) Fitment:Matches · configuration
23209-F9100 INJECTOR ASSY, FUEL(FOR PORT) 4
Note:M20..MXVH80 Production:2024-03 – … Spec:(L) Spec Note:(Local made) Fitment:Matches · configuration
23255-25010 SEAL, FUEL INJECTOR 4
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Fitment:Matches · configuration
23256-25010 RING, FUEL INJECTOR BACK-UP, NO.1 4
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Fitment:Matches · configuration
23258-31030 RING, FUEL INJECTOR BACK-UP, NO.3 4
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Spec:COLOR = BROWN Fitment:Matches · configuration
23258-47010 RING, FUEL INJECTOR BACK-UP, NO.3 4
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Spec:COLOR = LIGHT BLUE Fitment:Matches · configuration
23291-0V010 INSULATOR, INJECTOR VIBRATION 4
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Fitment:Matches · configuration
23291-31020 INSULATOR, INJECTOR VIBRATION 4
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Fitment:Matches · configuration
23470-0Y010 LIFTER ASSY, FUEL PUMP 1
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Replacements:23470-F2010 (fitment: unknown) Fitment:Matches · configuration
23477-F2060 GUIDE, FUEL PUMP LIFTER 1
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Replacements:23477-25010 (fitment: unknown) Fitment:Matches · configuration
23695-24010 CLAMP, NOZZLE HOLDER 4
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Fitment:Matches · configuration
23801-F2020 PIPE SUB-ASSY, FUEL, NO.1 1
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Fitment:Matches · configuration
23891-24010 SPACER, FUEL DELIVERY 2
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Fitment:Matches · configuration
23814-24011 PIPE, FUEL DELIVERY 1
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Fitment:Matches · configuration
23841-0V040 CLAMP, FUEL PIPE, NO.1(FOR EFI) 1
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Fitment:Matches · configuration
23841-25040 CLAMP, FUEL PIPE 1
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Spec:(J) Spec Note:(Japan made) Fitment:Matches · configuration
23841-F2030 CLAMP, FUEL PIPE 1
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Spec:(L) Spec Note:(Local made) Fitment:Matches · configuration
23851-F2020 HOLDER, FUEL PRESSURE SENSOR, NO.1 1
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Fitment:Matches · configuration
23901-F0450 TUBE SUB-ASSY, FUEL 1
Note:M20..MXVH80 Production:2024-03 – … Fitment:Matches · configuration
23901-24081 TUBE SUB-ASSY, FUEL 1
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Spec:(J) Spec Note:(Japan made) Fitment:Matches · configuration
23901-F2110 TUBE SUB-ASSY, FUEL 1
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Spec:(L) Spec Note:(Local made) Fitment:Matches · configuration
23814-F2030 PIPE SUB-ASSY, FUEL DELIVERY 1
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Fitment:Matches · configuration
23851-F2030 HOLDER, FUEL PRESSURE SENSOR, NO.2 1
Note:M20..MXVA80,MXVH80 Production:2024-03 – … Replacements:23851-25030 (fitment: unknown) Fitment:Matches · configuration
23825-24040 GUARD, FUEL DELIVERY 1
Note:M20..MXVH80 Production:2024-03 – … Fitment:Matches · configuration
90105-06376 standard —
Fitment:Matches · configuration
90301-05013 standard —
Fitment:Matches · configuration
90520-14004 standard —
Fitment:Matches · configuration
90105-06350 standard —
Fitment:Matches · configuration
90301-31016 standard —
Fitment:Matches · configuration
90105-06352 standard —
Fitment:Matches · configuration
91553-G1040 standard —
Fitment:Matches · configuration
91551-G0840 standard —
Fitment:Matches · configuration
90105-C0421 standard —
Fitment:Matches · configuration
90105-C0416 standard —
Fitment:Matches · configuration
90105-C0414 standard —
Fitment:Matches · configuration
90105-C0517 standard —
Fitment:Matches · configuration
90105-08510 standard —
Fitment:Matches · configuration

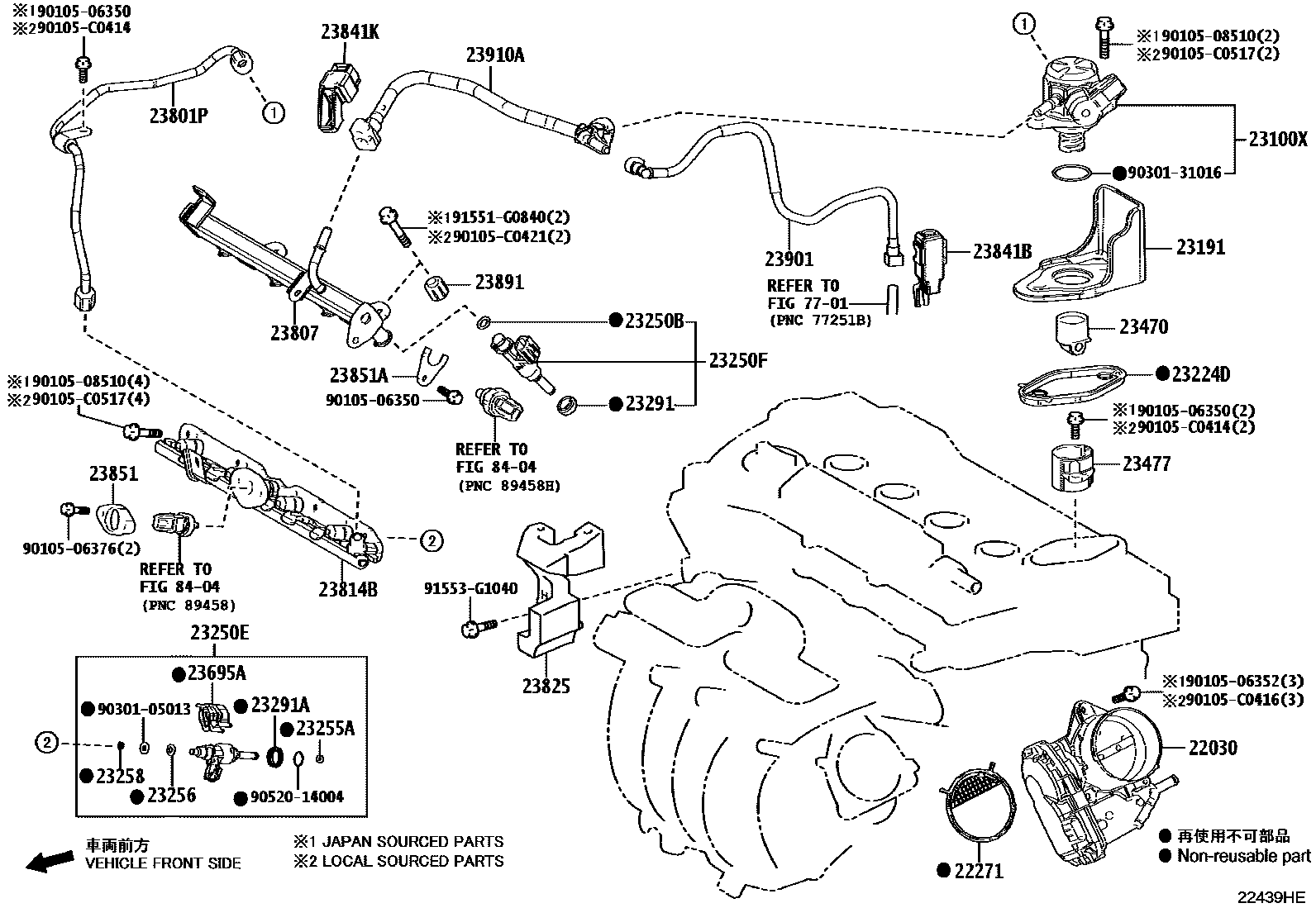

Diagram

63 parts
Toyota Camry-Hybrid-China 2025 — Fuel Injection System
