Open RegionYearModelModelCode Details
USA / Canada 2021 HILUX DOUBLE CAB GGN125L-DTTHKV
Catalog: TOYOTA202608 Engine: 4000CC 24-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GULF CORPORATION COUNCIL Color Code: 070 Trim Code: FR21 Production: 202108-202208 Model Short: GGN125L-DTTHKV Region: NA Native Region: US

Toyota HILUX-DOUBLE-CAB 2021 — Windshield Wiper

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
85110-0K171 MOTOR ASSY, WINDSHIELD WIPER 1
Note:GGN125,GUN122,125,126,13#,LAN125,TGN120,121,126,136..LHD..(GHAP,MMRP,SAP,THP) Production:2021-08 – 2023-03
85150-0K150 LINK ASSY, WINDSHIELD WIPER 1
Note:GGN125,GUN122,125,126,13#,TGN120,121,126,136..LHD..(MMRP,THP) Production:2021-08 – 2022-10
85211-0K140 ARM, FRONT WIPER, RH 1
Note:TGN126..L..GEN;TGN126..(SAP,THP)..(GCC,LA,SA);GGN125,GUN122,125,126,13#,LAN125,TGN120,121,136..LHD..(GHAP,MMRP,SAP,THP) Production:2021-08 – 2023-03
85292-0D030 CAP, FRONT WIPER ARM HEAD 2
Note:GGN125,GUN12#,13#,LAN125,TGN120,121,126,136..GHAP,KENP,MMRP,SAP,THP Production:2021-08 – 2023-03
85221-0K141 ARM, FRONT WIPER, LH 1
Note:TGN126..L..GEN;TGN126..(SAP,THP)..(GCC,LA,SA);GGN125,GUN122,125,126,13#,LAN125,TGN120,121,136..LHD..(GHAP,MMRP,SAP,THP) Production:2021-08 – 2023-03
85212-42130 BLADE, FR WIPER, RH 1
Note:GGN125,GUN122,125,126,13#,LAN125,TGN120,121,126,136..LHD..(GHAP,MMRP,SAP,THP) Production:2021-08 – 2023-03
85222-71010 BLADE, FR WIPER, LH 1
Note:GGN125,GUN122,125,126,13#,LAN125,TGN120,121,126,136..LHD..(GHAP,MMRP,SAP,THP) Production:2021-08 – 2023-03
85214-53080 RUBBER, WIPER, LH 1
Note:GGN125,GUN122,125,126,13#,LAN125,TGN120,121,126,136..LHD..(GHAP,MMRP,SAP,THP) Production:2021-08 – 2023-03
85214-28090 RUBBER, WIPER, RH 1
Note:GGN125,GUN122,125,126,13#,LAN125,TGN120,121,126,136..LHD..(GHAP,MMRP,SAP,THP) Production:2021-08 – 2023-03
90119-T0145 standard —
Replacements:90119-06864 (fitment: unknown)
90182-T0029 standard —
Replacements:90182-10006 (fitment: unknown)

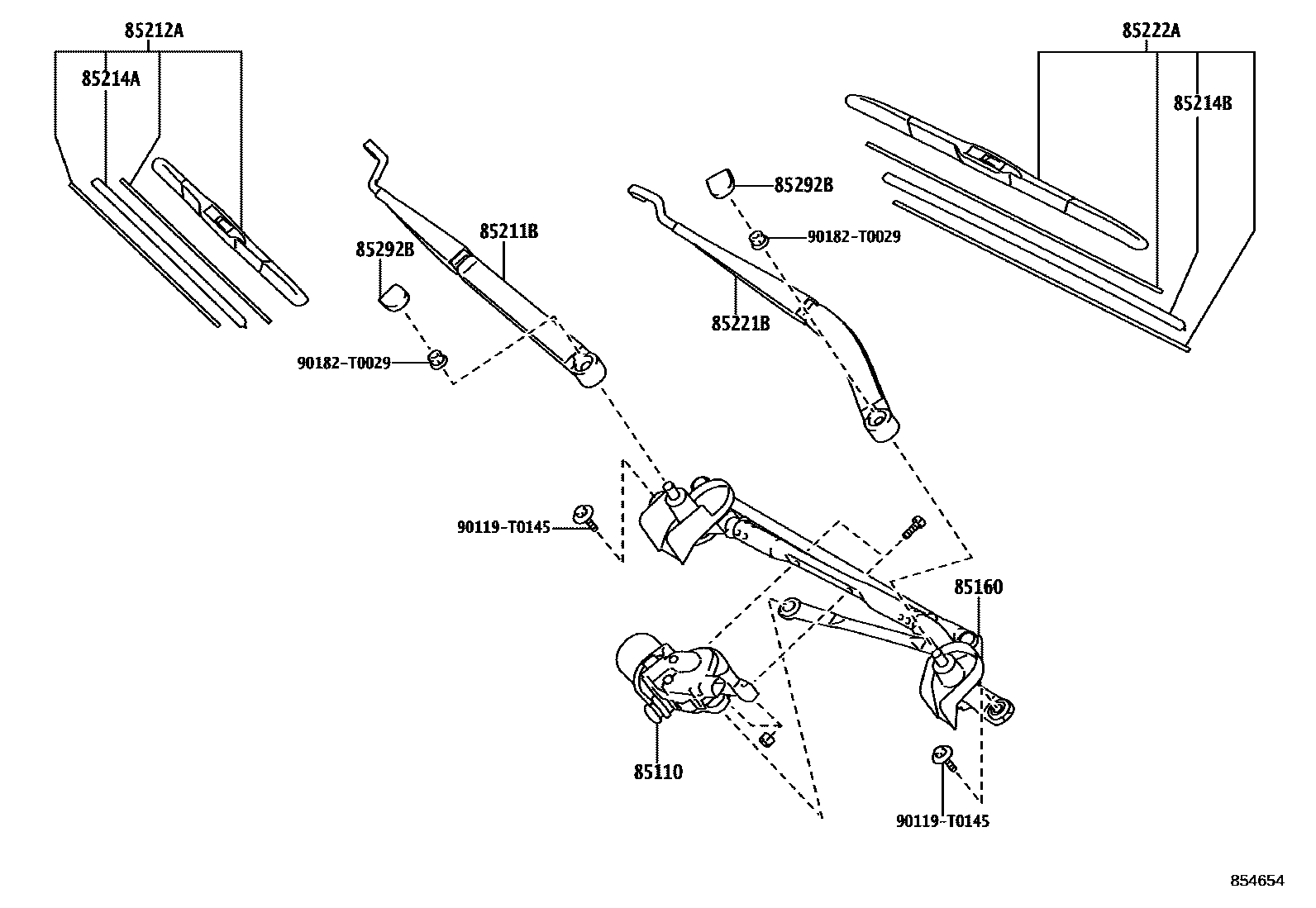

Diagram

11 parts
Toyota HILUX-DOUBLE-CAB 2021 — Windshield Wiper
