USA / Canada 2012 HILUX KUN25L-FRMDH
Catalog: TOYOTA202608 Engine: 2500CC DIESEL TURBO Transmission Description: MTM, 5-SPEED FLOOR SHIFT Vehicle Grade: DLX TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GENERAL COUNTRIES Doors Description: THAILAND PRODUCED SINGLE CAB Color Code: 1E9 Trim Code: EN10 Production: 201107-201504 Model Short: KUN25L-FRMDH Region: NA Native Region: US

Toyota Hilux 2012 — Windshield Wiper

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
85211-0K020 ARM, FRONT WIPER, RH 1
Note:GGN25,KUN10,15,2#,3#,LAN15,25,TGN1#,26,36..LHD Production:2011-07 – …
85212-0K020 BLADE, FR WIPER, RH 1
Note:GGN25,KUN10,15,2#,3#,LAN15,25,TGN1#,26,36..LHD Production:2011-07 – …
85214-0K040 RUBBER, WIPER, RH 1
Note:GGN25,KUN10,15,2#,3#,LAN15,25,TGN1#,26,36..LHD Production:2011-07 – …
85214-0D070 RUBBER, WIPER, LH 1
Note:GGN25,KUN10,15,2#,3#,LAN15,25,TGN1#,26,36..LHD Production:2011-07 – …
85221-0K020 ARM, FRONT WIPER, LH 1
Note:GGN25,KUN10,15,2#,3#,LAN15,25,TGN1#,26,36..LHD Production:2011-07 – …
85222-0K020 BLADE, FR WIPER, LH 1
Note:GGN25,KUN10,15,2#,3#,LAN15,25,TGN1#,26,36..LHD Production:2011-07 – …
85292-0K030 CAP, FRONT WIPER ARM HEAD 2
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH Production:2011-07 – …
85150-0K021 LINK ASSY, WINDSHIELD WIPER 1
Note:GGN25,KUN10,15,2#,3#,LAN15,25,TGN1#,26,36..LHD Production:2011-07 – …
85110-0K021 MOTOR ASSY, WINDSHIELD WIPER 1
Note:GGN25,KUN10,15,2#,3#,LAN15,25,TGN1#,26,36..LHD Production:2011-07 – …
90119-T0145 standard —
Replacements:90119-06864 (fitment: unknown)
90179-T0008 standard —
Replacements:90179-08113 (fitment: unknown)

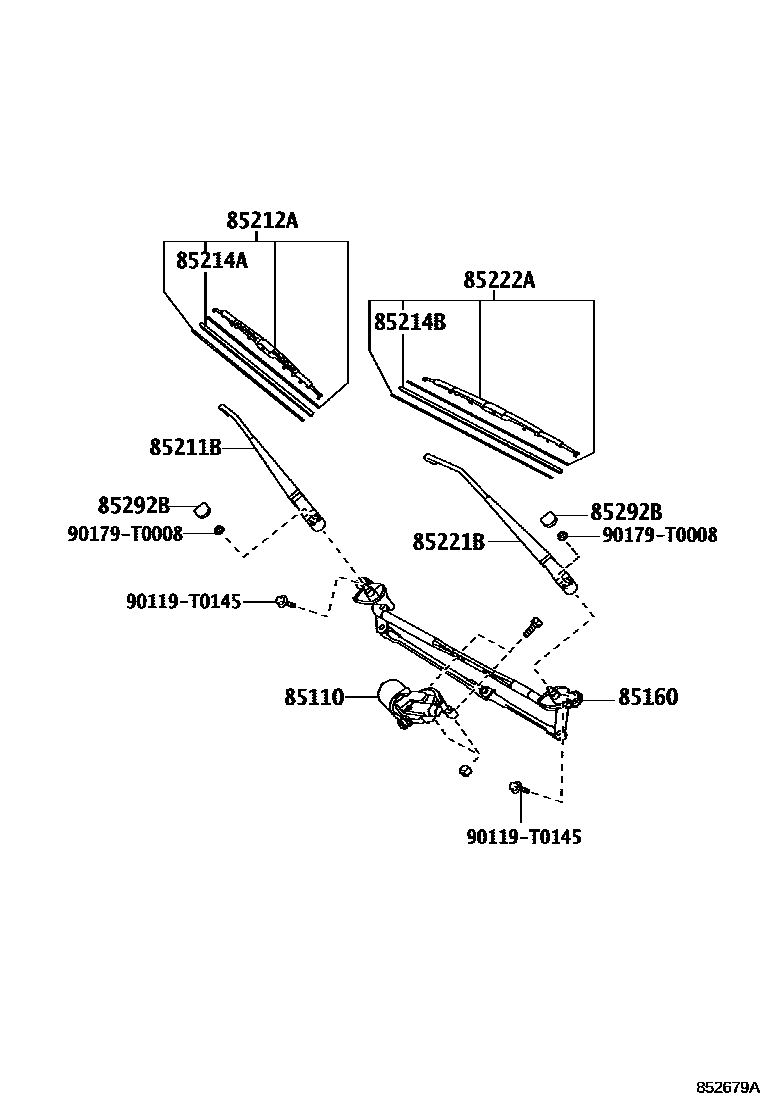

Diagram

11 parts
Toyota Hilux 2012 — Windshield Wiper
