USA / Canada 2014 HILUX TGN16L-PRPSKV
Catalog: TOYOTA202608 Engine: 2700CC 16-VALVE DOHC EFI Transmission Description: ATM, 4-SPEED FLOOR SHIFT Vehicle Grade: SR TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GULF CORPORATION COUNCIL Doors Description: DOUBLE CAB Color Code: 040 Trim Code: FR30 Production: 201107-201504 Model Short: TGN16L-PRPSKV Region: NA Native Region: US

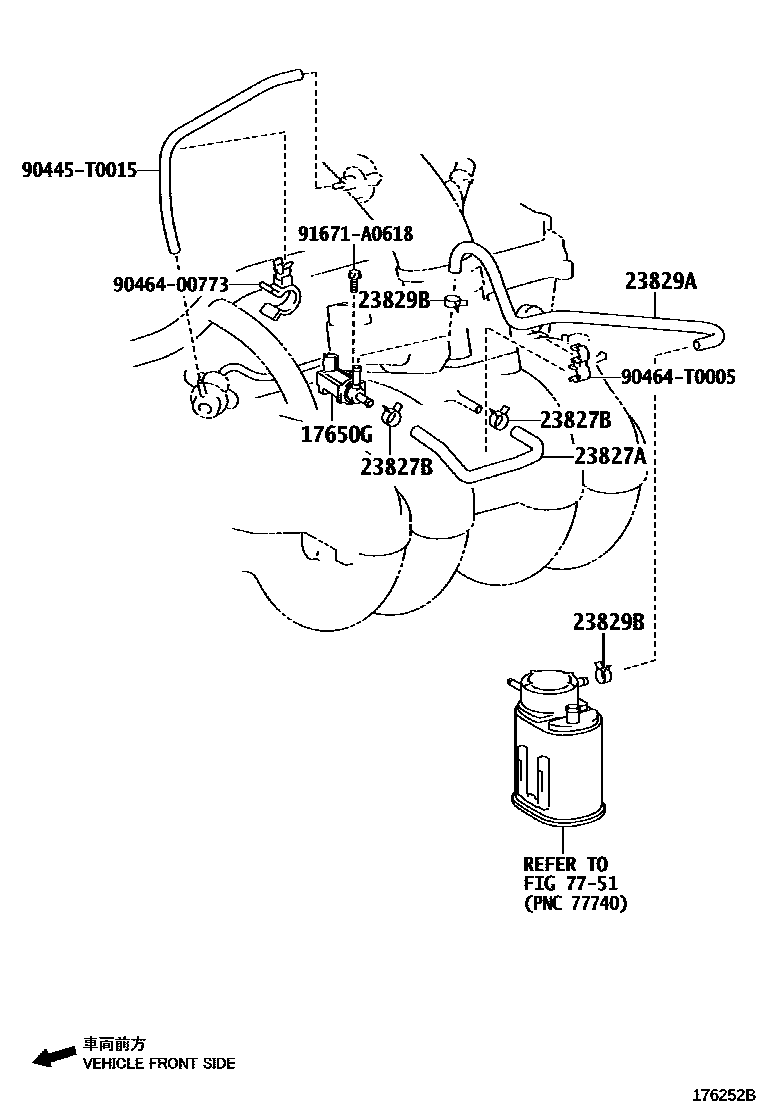

Toyota Hilux 2014 — Vacuum Piping

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
90466-T0041 CLIP(FOR FUEL VAPOR FEED HOSE, NO.2) 2
Note:2TRFE..TGN26..4FC..GEN;2TRFE..TGN26..(SCB,THDCB)..GEN;2TRFE..TGN26..ANCOM,CO,GCC,LA,SA;1TRFE,2TRFE..TGN1#,36..DCB,SCB,SMT,THDCB Production:2011-07 – … Replacements:96133-41300 (fitment: unknown)
90466-T0040 CLIP(FOR FUEL VAPOR FEED HOSE) 2
Note:2TRFE..TGN26..4FC..GEN;2TRFE..TGN26..(SCB,THDCB)..GEN;2TRFE..TGN26..ANCOM,CO,GCC,LA,SA;1TRFE,2TRFE..TGN1#,36..DCB,SCB,SMT,THDCB Production:2011-07 – …
23827-0C010 HOSE, FUEL VAPOR FEED, NO.2 1
Note:2TRFE..TGN26..GCC;2TRFE..TGN26..4FC..GEN;2TRFE..TGN26..(SCB,THDCB)..GEN;1TRFE,2TRFE..TGN1#,36..(DCB,SCB,SMT,THDCB)..HTWC..(ARL,GCC,GEN,IDN,TH) Production:2011-07 – 2015-04 Replacements:23827-75280 (fitment: unknown)
90910-12275 VALVE, DUTY VACUUM SWITCHING 1
Note:2TRFE..TGN26..4FC..GEN;2TRFE..TGN26..(SCB,THDCB)..GEN;2TRFE..TGN26..ANCOM,CO,GCC,LA,SA;1TRFE,2TRFE..TGN1#,36..DCB,SCB,SMT,THDCB Production:2011-07 – …
23829-0C010 HOSE, FUEL VAPOR FEED 1
Note:2TRFE..TGN26..4FC..GEN;2TRFE..TGN26..(SCB,THDCB)..GEN;2TRFE..TGN26..HTWC..(ANCOM,CO,GCC,LA,SA);1TRFE,2TRFE..TGN1#,36..(DCB,SCB,SMT,THDCB)..HTWC Production:2012-03 – … Spec:*299 Spec Note:*299(MADE IN THAILAND. PLEASE CONFIRM DISTRIBUTOR WHICH P/N SHOULD BEORDERED.)
90445-T0015 standard —
91671-A0618 standard —
90464-T0005 standard —
Replacements:90464-00806 (fitment: unknown)
90464-00773 standard —

Diagram

9 parts
Toyota Hilux 2014 — Vacuum Piping
