USA / Canada 2014 HILUX KUN26R-PRMSYQ
Catalog: TOYOTA202608 Engine: 3000CC DIESEL TURBO Transmission Description: MTM, 5-SPEED FLOOR SHIFT Vehicle Grade: SR TYPE Steering Description: RIGHT-HAND DRIVE VEHICLES Destination Description: AUSTRALIA Doors Description: DOUBLE CAB Color Code: 1D6 Trim Code: QE20 Production: 201107-201504 Model Short: KUN26R-PRMSYQ Region: NA Native Region: US

Toyota Hilux 2014 — Starter

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
28100-0L032 STARTER ASSY 1
Note:1KDFTV..KUN16,26,36..(DCB,SCB,SMT,THDCB,XTR)..(ARL,GEN,MA,PHL,TH) Production:2011-07 – 2016-01 Spec:12V 2.2KW
28160-64041 ARMATURE ASSY, STARTER 1
Note:1KDFTV..KUN26..(4FC,5FC)..(CO,LA);1KDFTV,5LE..KUN16,26,36,LAN15,25,35..ARL,GEN,MA,PHL,SA,TH Production:2011-07 – 2016-01
28150-0L030 SWITCH ASSY, MAGNET STARTER 1
Note:1KDFTV..KUN16,26,36..(DCB,SCB,SMT,THDCB,XTR)..(ARL,GEN,MA,PHL,TH) Production:2011-07 – 2016-01
28120-0L030 YOKE ASSY, STARTER 1
Note:1KDFTV..KUN26..(4FC,5FC)..(CO,LA);1KDFTV..KUN16,26,36..ARL,GEN,MA,PHL,SA,TH Production:2011-07 – 2016-01 Replacements:28120-64040 (fitment: unknown)
28140-0L030 HOLDER ASSY, STARTER BRUSH 1
Note:1KDFTV..KUN16,26,36..(DCB,SCB,SMT,THDCB,XTR)..(ARL,GEN,MA,PHL,TH) Production:2011-07 – 2016-01 Replacements:28140-64040 (fitment: unknown)
28011-0L030 CLUTCH SUB-ASSY, STARTER 1
Note:1KDFTV..KUN16,26,36..(DCB,SCB,SMT,THDCB,XTR)..(ARL,GEN,MA,PHL,TH) Production:2011-07 – 2016-01
— Part does not apply to this vehicle configuration. 28120A —
— Part does not apply to this vehicle configuration. 28011B —
— Part does not apply to this vehicle configuration. 28110 —
90105-T0081 standard —
Replacements:90105-12053 (fitment: unknown)
90178-T0022 standard —
90178-T0019 standard —
Replacements:94151-80800 (fitment: unknown)
90105-T0082 standard —
96711-19006 standard —

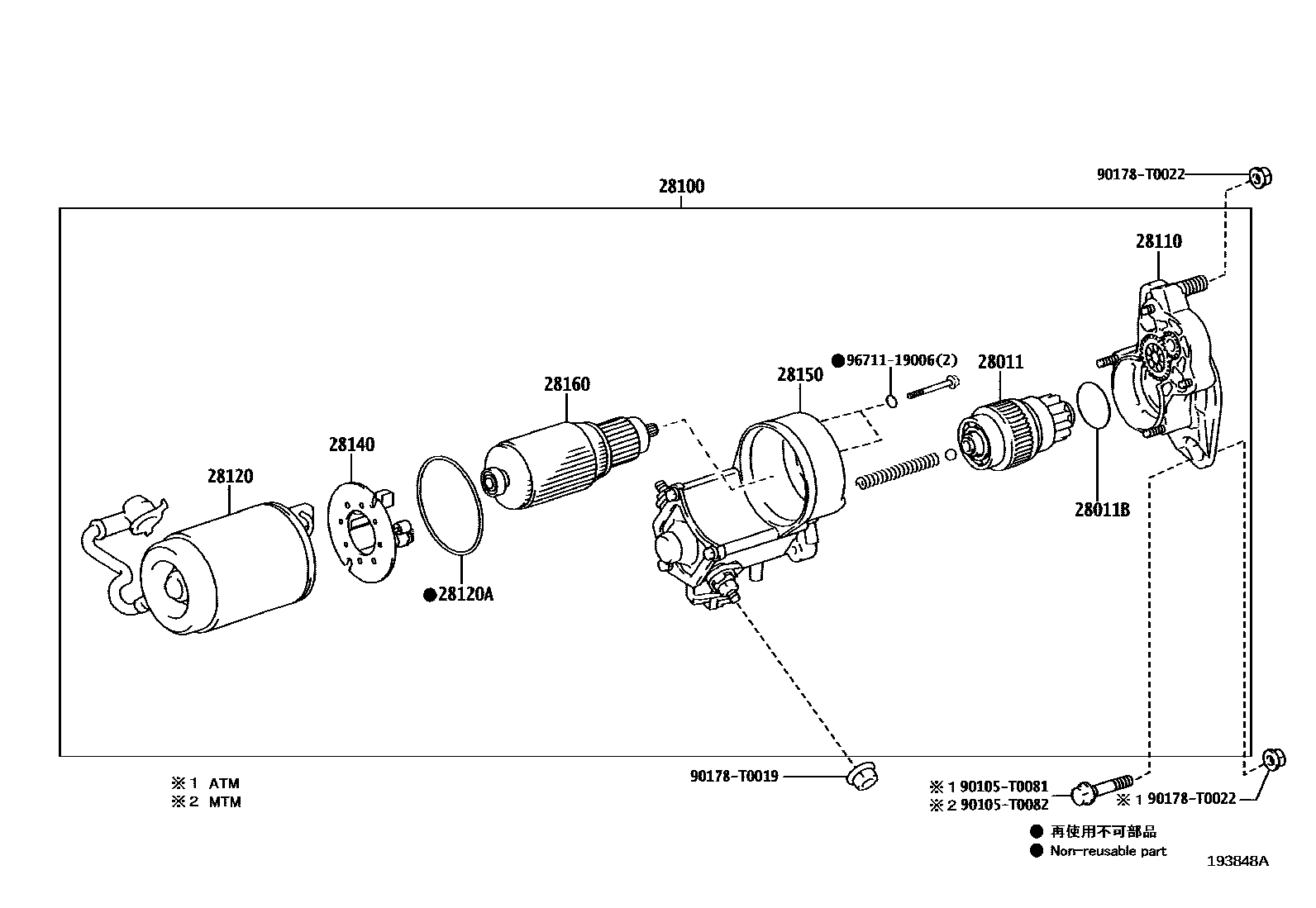

Diagram

11 parts
Toyota Hilux 2014 — Starter
