Open RegionYearModelModelCode Details
General 2012 COROLLA ALTIS ZRE142L-GEPNKV
Catalog: TOYOTA202608 Engine: 1800CC 16-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION Vehicle Grade: GLI TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GULF CORPORATION COUNCIL Color Code: 040 Trim Code: FH40 Production: 201007-201310 Model Short: ZRE142L-GEPNKV Region: OTHER Native Region: GR

Toyota Corolla-Altis 2012 — Windshield Washer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
85381-12310 NOZZLE SUB-ASSY, WASHER 2
Note:ZRE14#..GCC,TAIW Production:2010-07 – 2013-10 Spec:ANGLE -2 Fitment:Matches · configuration
85381-12320 NOZZLE SUB-ASSY, WASHER 2
Note:ZRE14#..GCC,TAIW Production:2010-07 – 2013-10 Spec:ANGLE +2 Fitment:Matches · configuration
85381-12300 NOZZLE SUB-ASSY, WASHER 2
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Spec:ANGLE 0 Fitment:Matches · configuration
85330-21010 MOTOR AND PUMP ASSY, WINDSHIELD WASHER 1
Note:CE140,NDE140,NZE140,ZRE141,142..(18G,18J,20D,20DSA,D,E,GLI,N,XLI)..(GCC,IND,PKN) Production:2010-07 – … Fitment:Matches · configuration
— Part does not apply to this vehicle configuration. 85333 —
85386-60050 CAP, WINDSHIELD WASHER JAR 1
Note:ZRE142..HTWCF;NDE140,ZRE141..16E,16G,16V,E,XLI;ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;ZRE142..(18E,18G,18J,E,GLI,XLI)..(GCC,IDN,IND,MA,TAIW,VN) Production:2010-07 – … Fitment:Matches · configuration
85315-02411 JAR ASSY, WINDSHIELD WASHER 1
Note:ZRE141,142..GCC Production:2010-10 – 2013-10 Fitment:Matches · configuration
82711-3A540 CLAMP, WASHER, NO.2 3
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration
85387-12840 CLAMP NO.1 (FOR WINDSEIELD WASHER) 1
Note:ZRE14#..GCC,TAIW Production:2010-07 – 2013-10 Fitment:Matches · configuration
85336-60300 BUSH, WINDSHIELD WASHER JAR 1
Note:ZRE143..TAIW;NDE140,ZRE141,142..(18E,18G,18J,E,GLI,XLI)..(GCC,IND,TAIW) Production:2010-07 – 2013-12 Fitment:Matches · configuration
85375-10260 JOINT, WINDSHIELD WASHER HOSE, NO.2 1
Note:ZRE14#..GCC,TAIW Production:2010-07 – 2013-10 Fitment:Matches · configuration
90099-33080 HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 1
Note:ZRE14#..GCC,TAIW Production:2010-07 – 2013-10 Spec:L=1450(*H,L=40) Fitment:Matches · configuration
85375-10260 JOINT, WINDSHIELD WASHER HOSE, NO.1 1
Note:ZRE143..TAIW;NDE140,ZRE141,142..(18E,18G,18J,E,GLI,XLI)..(GCC,IND,TAIW) Production:2010-07 – 2013-12 Fitment:Matches · configuration
90446-07001 HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) 1
Note:ZRE141,142..GCC Production:2010-07 – 2013-10 Spec:L=1800(*H,L=80) Fitment:Matches · configuration
90099-59355 HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 1
Note:ZRE14#..GCC,TAIW Production:2010-07 – 2013-10 Spec:L=1880 Fitment:Matches · configuration
90099-33080 HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) 2
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Spec:L=1450(*H,L=190) Fitment:Matches · configuration
85321-28020 VALVE, WINDSHIELD WASHER HOSE 1
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration
90446-07001 HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 1
Note:ZRE14#..GCC,TAIW Production:2010-07 – 2013-10 Spec:L=1800(*H,L=510) Fitment:Matches · configuration
85375-10260 JOINT, WINDSHIELD WASHER HOSE, NO.3 1
Note:ZRE14#..GCC,TAIW Production:2010-07 – 2013-10 Fitment:Matches · configuration
90119-06767 standard —
Fitment:Matches · configuration
90119-T0144 standard —
Replacements:90119-06767 (fitment: unknown) Fitment:Matches · configuration

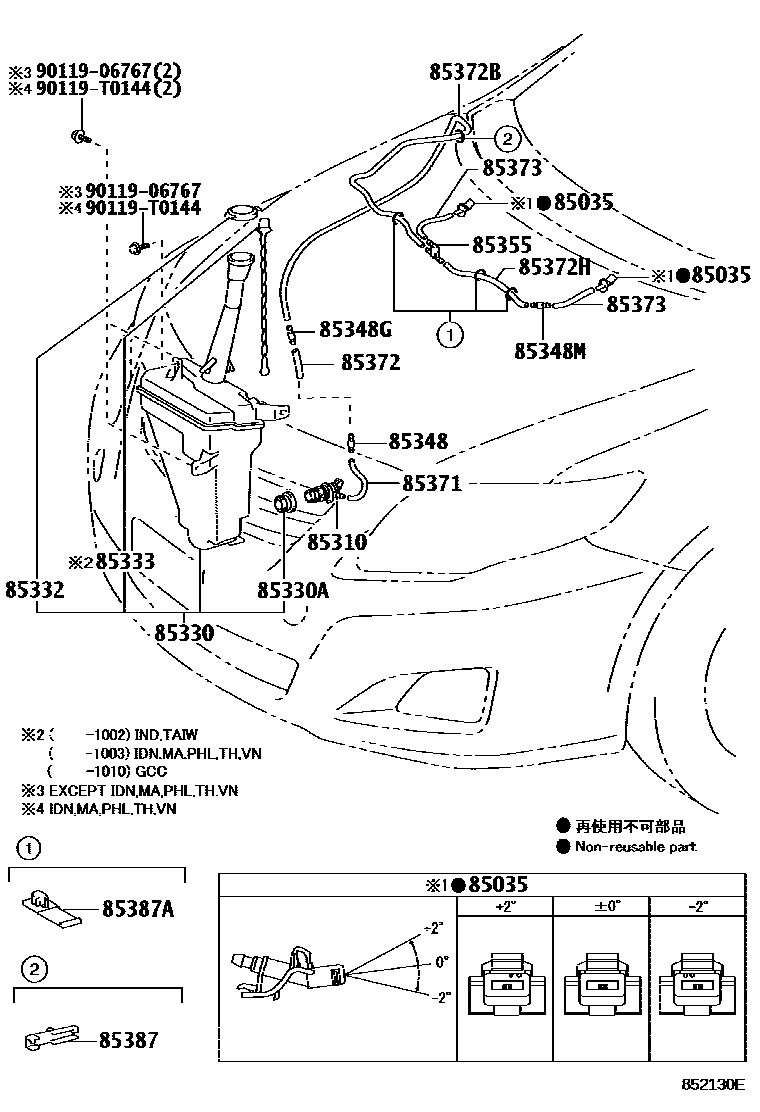

Diagram

20 parts
Toyota Corolla-Altis 2012 — Windshield Washer
