Open RegionYearModelModelCode Details
Europe 2022 YARIS FRP MXPH11L-CHXNBW
Catalog: TOYOTA202608 Engine: 1500CC 12-VALVE DOHC EFI Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Steering Description: LEFT-HAND DRIVE VEHICLES Doors Description: 5-DOOR Color Code: 1G3 Trim Code: FB20 Production: 202111-202401 Model Short: MXPH11L-CHXNBW Region: EU Native Region: EU

Toyota YARIS-FRP 2022 — Windshield Washer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
82711-52090 CLAMP NO.1 (FOR WINDSEIELD WASHER) 1
Note:MXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP Production:2020-07 – 2024-01
85330-02070 MOTOR AND PUMP ASSY, WINDSHIELD WASHER 1
Note:MXPA11..N,S,V;KSP211..RHD..N;MXPA11..LHD..G;MXPH11..LHD..R;MXPH11..G,N,S,V;KSP211..LHD..(N,R) Production:2020-07 – 2022-07
90069-20005 BUSH, WINDSHIELD WASHER JAR 1
Note:MXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP Production:2020-07 – 2024-01
85316-0D010 CAP, WINDSHIELD WASHER JAR 1
Note:MXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP Production:2020-07 – 2024-01
85375-05050 JOINT, WINDSHIELD WASHER HOSE, NO.1 1
Note:MXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP Production:2020-07 – 2024-01
85376-02240 VALVE, WINDSHIELD WASHER HOSE 1
Note:MXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP Production:2020-07 – 2024-01
85381-52430 NOZZLE SUB-ASSY, WASHER 2
Note:MXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP Production:2020-07 – 2024-01 Spec:ANGLE 0
85381-52440 NOZZLE SUB-ASSY, WASHER 2
Note:MXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP Production:2020-07 – 2024-01 Spec:ANGLE -2
85381-52450 NOZZLE SUB-ASSY, WASHER 2
Note:MXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP Production:2020-07 – 2024-01 Spec:ANGLE +2
85315-K0070 JAR ASSY, WINDSHIELD WASHER 1
Note:MXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP Production:2020-07 – 2024-01
90069-16009 HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 1
Note:MXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP Production:2020-07 – 2024-01
90069-16009 HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 1
Note:MXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP Production:2020-07 – 2024-01
90069-16009 HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) 1
Note:MXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP Production:2020-07 – 2024-01
90069-16009 HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 1
Note:MXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP Production:2020-07 – 2024-01
90119-W0089 standard —
Replacements:90119-06767 (fitment: unknown)

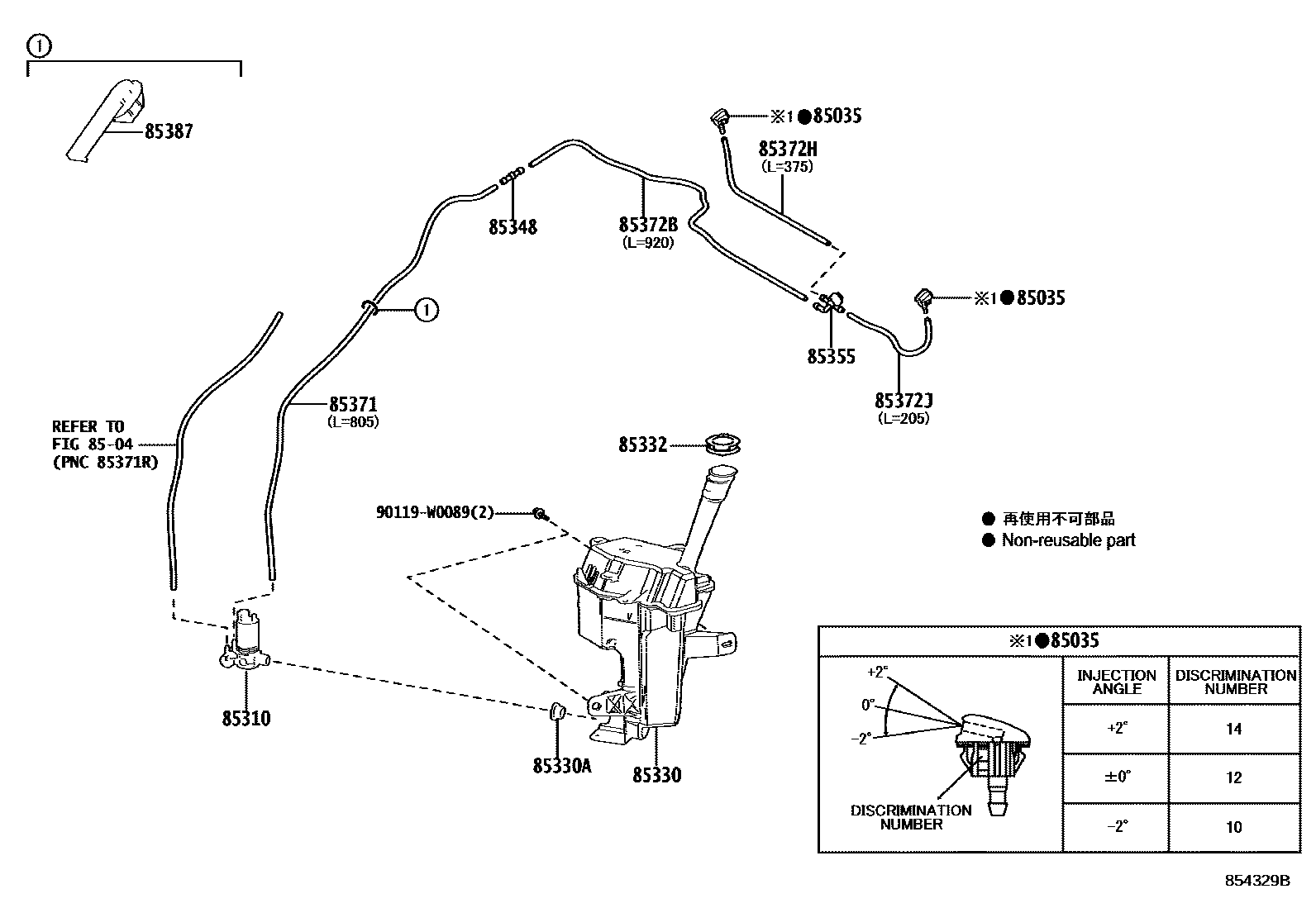

Diagram

15 parts
Toyota YARIS-FRP 2022 — Windshield Washer
