Open RegiónAñoModeloCódigo de modelo Detalles
USA / Canada 2021 Gv80 20 JRW5L9G1K
Catalog: GENESIS202602 Model: JRW5L9G1K Model Year: 2022 Engine Number: G4KRMA025880 Transmission Number: WFMTDU289665 Destination: USA Nation: U.S.A Plant: K7 Exterior Color: CARBON METAL Interior Color: UBL+DUN+LR7 Drive Type: DRIVE TYPE - LHD Weather Type: WEATHER - THE TEMPERATE ZONE Body Type: WAGON - 5DR 5P Engine Capacity: 2500 CC - THETA-III Engine Type: DOHC - TCI/GDI Fuel Type: GASOLINE - UNLEADED Transaxle: AUTO - 8 SPEED 4WD Build Date: 2021-09-06 Nation Code: B28 Area: K7 Drive Type: L Weather Type: 3 Order Number: E2108Q169B28A Full Specification Code: B28AJRW5L9G1K D0W3 Exterior Color Code: N5M Interior Color Code: DV2 Engine Mip Code: YW08 Transmission Mip Code: ZB44 Seat Code: KA5J Vin Tag: 1 Model Year Code: 20 Catalog Information: (W5) WAGON - 5DR 5P,(L9) 2500 CC - THETA-III,(G) DOHC - TCI/GDI,(1) GASOLINE - UNLEADED,(K) AUTO - 8 SPEED 4WD,(L) DRIVE TYPE - LHD,(3) WEATHER - THE TEMPERATE ZONE Region: NA Native Region: HMA

Genesis GV80 20 2021 — Electronic Control [2500 CC - THETA-III]

Ver los diagramas del vehículo

Piezas de repuesto

Número de parteDescripciónPNCCantidad
1125406206B BOLT 2
Production:2021-06-01 – …
1140306126K BOLT 2
Production:2019-01-25 – …
1140306256K BOLT 4
Production:2021-06-01 – …
1140306146K BOLT 1
Production:2019-08-15 – …
1338506007K NUT - FLANGE 1
Production:2021-06-01 – …
391822E000 BOLT - FLANGE 2
Production:2018-12-07 – …
391212TJN5 ELECTRONIC CONTROL UNIT 1
Production:2021-06-01 – …
391502TJX0 BRACKET - POWERTRAIN CONTROL UNIT 1
Production:2021-06-01 – …
391802T000 SENSOR - CRANKSHAFT POSITION 1
Production:2019-01-07 – …
392232G830 BOLT 1
Production:2018-12-07 – …
392102T000 SENSOR ASSY - OXYGEN 1
Production:2019-01-25 – …
392102T070 SENSOR ASSY - OXYGEN 1
Production:2020-10-21 – 9999-12-31
392112T010 BRKT-O2 SENSOR 1
Production:2019-07-01 – …
393502S000 SENSOR - CAMSHAFT POSITION 2
Production:2018-12-07 – …
392502T000 SENSOR - KNOCK 1
Production:2018-12-07 – …
947502M454 SWITCH ASSY - OIL PRESSURE 1
Production:2018-12-07 – …

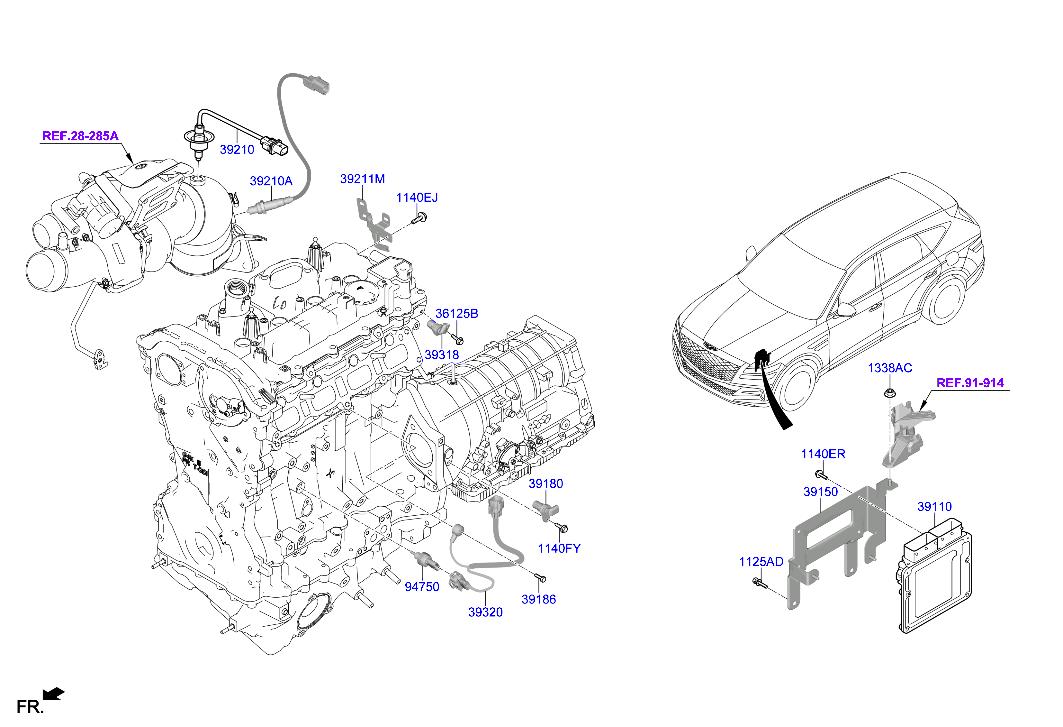

Diagrama

16 piezas
Genesis GV80 20 2021 — Electronic Control [2500 CC - THETA-III]
