Open RegiónAñoModeloCódigo de modelo Detalles
General 1999 베르나 00 4 DR SEDAN MIDDLE GRADE 1300 CC MPI SOHC 5 SPEED MT 2WD BAFDL35
Catalog: HYUNDAIKR202007 Production Date: 1999/12/06 Filter Date: 1999/12/06 Model Spec Code: BAFDL35 Model Year Code: Y Sales Group: A99 Option Control No.: 0222 Option Version: 003 Ext. Color: NOBLE WHITE Int. Color: GRAY SHADOW Segment: BA Vehicle Code: 250 Catalog Format: CTM Option Codes: vno Drive Type: LEFT HAND DRIVE Nation Area: KOREA,SOUTH Body Type: 4 DR SEDAN Trim Level: MIDDLE GRADE Engine Capacity: 1300 CC Fuel Type: MPI-SOHC Transmission: 5 SPEED MT 2WD Region: OTHER Native Region: DOM

Hyundai 베르나 00 4 Dr Sedan Middle Grade 1300 CC MPI-SOHC 5 Speed MT 2WD 1999 — 20-216:Engine & Transaxle Mounting

Ver los diagramas del vehículo

Piezas de repuesto

Número de parteDescripciónPNCCantidad
1011610281 BOLT 4
Production:1999-06 – 2006-03 Source Table:CTM Key:1011AA/00002 Date From (yyyymmdd):19990601 Date To (yyyymmdd):20060301
2181522000 BOLT 1
Production:1999-06 – 2002-07 Description:4 DR SEDAN >MIDDLE GRADE >MPI-SOHC > Source Table:CTM Key:1123GT/FD/00004 Date From (yyyymmdd):19990601 Date To (yyyymmdd):20020701
2181522000 BOLT 1
Production:1999-09 – 2005-01 Description:4 DR SEDAN >MIDDLE GRADE >MPI-SOHC > Source Table:CTM Key:1123GT/FD/00007 Date From (yyyymmdd):19990903 Date To (yyyymmdd):20050127
1123308203 BOLT 2
Production:1999-06 – 2002-08 Replacements:1123508206K (fitment: unknown) Description:MPI-SOHC > Source Table:CTM Key:1123GV/00001 Date From (yyyymmdd):19990601 Date To (yyyymmdd):20020801
1123410201 BOLT 2
Production:1999-06 – 2002-07 Description:4 DR SEDAN >MIDDLE GRADE >[STRG-NORMAL POWER] Required Options:5613 Source Table:CTM Key:1123LC/FD/00003 Date From (yyyymmdd):19990601 Date To (yyyymmdd):20020701
1123410201 BOLT 2
Production:1999-09 – 2006-03 Description:4 DR SEDAN >MIDDLE GRADE >[STRG-NORMAL POWER] Required Options:5613 Source Table:CTM Key:1123LC/FD/00005 Date From (yyyymmdd):19990903 Date To (yyyymmdd):20060301
1123410301 BOLT 2
Production:1999-06 – 2006-03 Replacements:1123410286K (fitment: unknown) Source Table:CTM Key:1123LG/00002 Date From (yyyymmdd):19990601 Date To (yyyymmdd):20060301
1123410351 BOLT 3
Production:1999-06 – 2006-03 Replacements:MF241286 (fitment: unknown) Source Table:CTM Key:1123LJ/00002 Date From (yyyymmdd):19990601 Date To (yyyymmdd):20060301
1132112101A BOLT 1
Production:1999-06 – 2005-01 Replacements:2182129100 (fitment: unknown) Source Table:CTM Key:1132AD/00002 Date From (yyyymmdd):19990601 Date To (yyyymmdd):20050127
1310410001 NUT 1
Production:1999-06 – 2006-03 Replacements:1310410003 (fitment: unknown) Description:MPI-SOHC > Source Table:CTM Key:1310TA/00002 Date From (yyyymmdd):19990601 Date To (yyyymmdd):20060301
1339610001 NUT 1
Production:1999-06 – 2006-03 Replacements:1339610007K (fitment: unknown) Source Table:CTM Key:1339GA/00002 Date From (yyyymmdd):19990601 Date To (yyyymmdd):20060301
1339610003 NUT 2
Production:1999-06 – 2002-07 Replacements:1339610007K (fitment: unknown) Description:4 DR SEDAN >MIDDLE GRADE > Source Table:CTM Key:1339GB/FD/00003 Date From (yyyymmdd):19990601 Date To (yyyymmdd):20020701
1339610003 NUT 2
Production:1999-09 – 2005-01 Replacements:1339610007K (fitment: unknown) Description:4 DR SEDAN >MIDDLE GRADE >MPI-SOHC > Source Table:CTM Key:1339GB/FD/00005 Date From (yyyymmdd):19990903 Date To (yyyymmdd):20050127
1360210001 WASHER-SPRING 1
Production:1999-06 – 2006-03 Description:MPI-SOHC > Source Table:CTM Key:1360GH/00002 Date From (yyyymmdd):19990601 Date To (yyyymmdd):20060301
2168022011 BRACKET-ENGINE SUPPORT 1
Production:1999-06 – 2001-03 Replacements:2168022012 (fitment: unknown) Description:MPI-SOHC > Source Table:CTM Key:21621A/00004 Date From (yyyymmdd):19990601 Date To (yyyymmdd):20010308
2181025010 BRACKET ASSY-ENGINE MTG 1
Production:1999-06 – 2002-07 Description:4 DR SEDAN >MIDDLE GRADE >MPI-SOHC > Source Table:CTM Key:21810A/FD/00005 Date From (yyyymmdd):19990601 Date To (yyyymmdd):20020701
2181025010 BRACKET ASSY-ENGINE MTG 1
Production:1999-09 – 2002-07 Description:4 DR SEDAN >MIDDLE GRADE >MPI-SOHC > Source Table:CTM Key:21810A/FD/00008 Date From (yyyymmdd):19990903 Date To (yyyymmdd):20020701
2182122000 NUT ASSY 1
Production:1999-06 – 2000-03 Replacements:2182124000 (fitment: unknown) Source Table:CTM Key:21821B/00002 Date From (yyyymmdd):19990601 Date To (yyyymmdd):20000313
2182229000 BOLT 1
Production:1999-06 – 2002-07 Replacements:218222F100 (fitment: unknown) Description:4 DR SEDAN >MIDDLE GRADE > Source Table:CTM Key:21822B/FD/00003 Date From (yyyymmdd):19990601 Date To (yyyymmdd):20020701
2182229000 BOLT 1
Production:1999-09 – 2005-01 Replacements:218222F100 (fitment: unknown) Description:4 DR SEDAN >MIDDLE GRADE >MPI-SOHC > Source Table:CTM Key:21822B/FD/00005 Date From (yyyymmdd):19990903 Date To (yyyymmdd):20050127
2181322100 DAMPER 1
Production:1999-06 – 2002-07 Description:4 DR SEDAN >MIDDLE GRADE >MPI-SOHC > Source Table:CTM Key:21823A/FD/00004 Date From (yyyymmdd):19990601 Date To (yyyymmdd):20020701
2181322100 DAMPER 1
Production:1999-09 – 2002-07 Description:4 DR SEDAN >MIDDLE GRADE >MPI-SOHC > Source Table:CTM Key:21823A/FD/00007 Date From (yyyymmdd):19990903 Date To (yyyymmdd):20020701
2182525000 NUT 1
Production:1999-06 – 2006-03 Source Table:CTM Key:21825B/00002 Date From (yyyymmdd):19990601 Date To (yyyymmdd):20060301
2183025010 BRACKET ASSY-TRANSMISSION MTG 1
Production:1999-06 – 2002-07 Description:4 DR SEDAN >MIDDLE GRADE >5 SPEED MT 2WD > Source Table:CTM Key:21830/FD/00006 Date From (yyyymmdd):19990601 Date To (yyyymmdd):20020701
2183025010 BRACKET ASSY-TRANSMISSION MTG 1
Production:1999-09 – 2002-07 Description:4 DR SEDAN >MIDDLE GRADE >1300 CC >MPI-SOHC >5 SPEED MT 2WD > Source Table:CTM Key:21830/FD/00012 Date From (yyyymmdd):19990903 Date To (yyyymmdd):20020701
2184524000 NUT ASSY 1
Production:1999-06 – 2005-01 Description:4 DR SEDAN >MIDDLE GRADE > Source Table:CTM Key:21845/FD/00002 Date From (yyyymmdd):19990601 Date To (yyyymmdd):20050127
2184924000 NUT 1
Production:1999-06 – 2006-03 Source Table:CTM Key:21849/00002 Date From (yyyymmdd):19990601 Date To (yyyymmdd):20060301
2191025010 BRACKET ASSY-ROLL STOPPER,FR 1
Production:1999-06 – 2002-07 Description:4 DR SEDAN >MIDDLE GRADE >5 SPEED MT 2WD >[STRG-NORMAL POWER] Required Options:5613 Source Table:CTM Key:21910B/FD/0011A Date From (yyyymmdd):19990601 Date To (yyyymmdd):20020701
2191025010 BRACKET ASSY-ROLL STOPPER,FR 1
Production:1999-09 – 2002-07 Description:4 DR SEDAN >MIDDLE GRADE >5 SPEED MT 2WD >[STRG-NORMAL POWER] Required Options:5613 Source Table:CTM Key:21910B/FD/0014A Date From (yyyymmdd):19990903 Date To (yyyymmdd):20020701
2192025000 BOLT 2
Production:1999-06 – 2002-07 Description:4 DR SEDAN >MIDDLE GRADE > Source Table:CTM Key:21920/FD/00005 Date From (yyyymmdd):19990601 Date To (yyyymmdd):20020701
2193025000 BRACKET ASSY-ROLL STOPPER,RR 1
Production:1999-06 – 2002-07 Replacements:2193025010 (fitment: unknown) Description:4 DR SEDAN >MIDDLE GRADE >[STRG-NORMAL POWER] Required Options:5613 Source Table:CTM Key:21930R/FD/00006 Date From (yyyymmdd):19990601 Date To (yyyymmdd):20020701
2193025010 BRACKET ASSY-ROLL STOPPER,RR 1
Production:1999-06 – 2002-07 Description:4 DR SEDAN >MIDDLE GRADE >[STRG-NORMAL POWER] Required Options:5613 Source Table:CTM Key:21930R/FD/00007 Date From (yyyymmdd):19990601 Date To (yyyymmdd):20020701

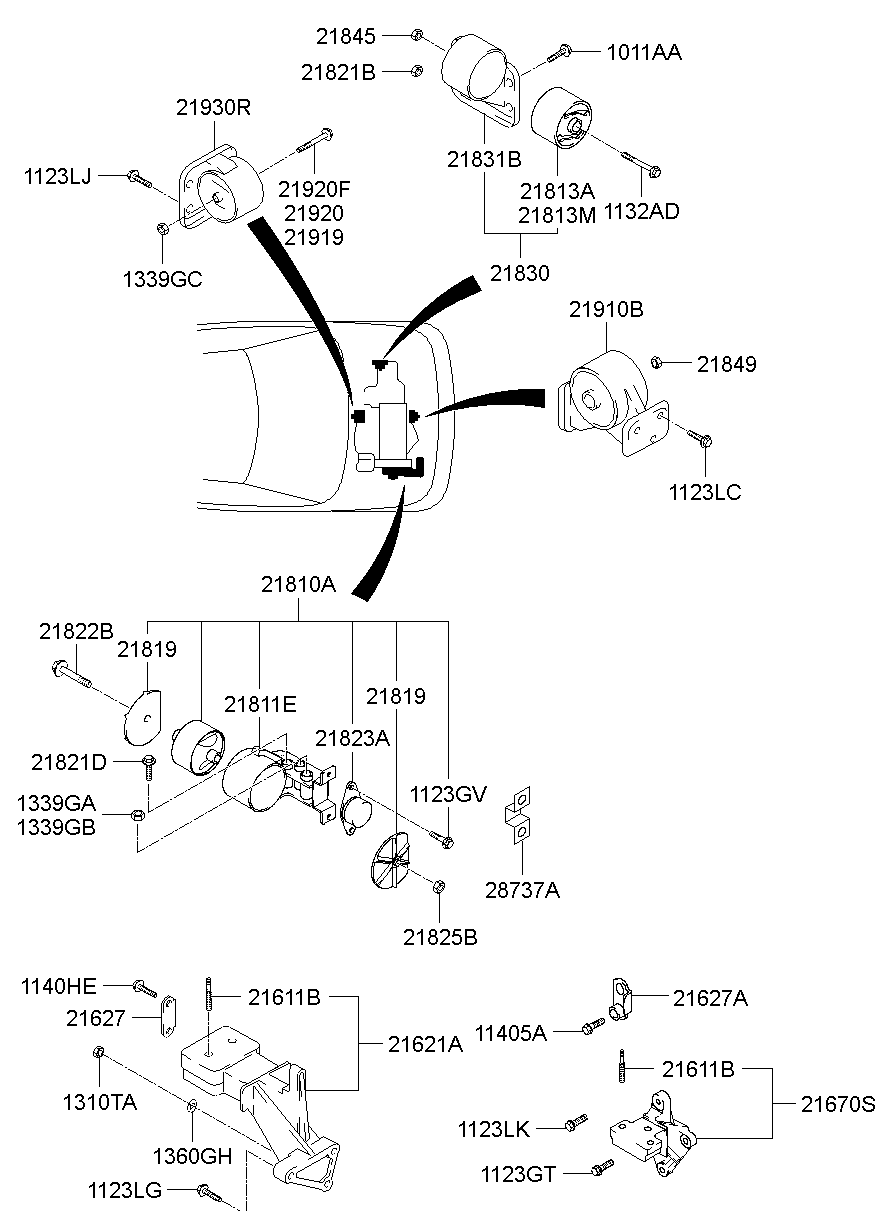

Diagrama

32 piezas
Hyundai 베르나 00 4 Dr Sedan Middle Grade 1300 CC MPI-SOHC 5 Speed MT 2WD 1999 — 20-216:Engine & Transaxle Mounting
