Open RégionAnnéeModèleCode modèle Détails
USA / Canada 2018 G80 16 B1S4J5G1J
Catalog: GENESIS202602 Model: B1S4J5G1J Model Year: 2018 Engine Number: G6DPJA041928 Transmission Number: VCJLS1751737 Destination: USA Nation: U.S.A Plant: K7 Exterior Color: TITANIUM BLACK Interior Color: SPORTS RRY Drive Type: DRIVE TYPE - LHD Weather Type: WEATHER - THE TEMPERATE ZONE Body Type: SEDAN - 4DR 5P Engine Capacity: 3300 CC - LAMBDA 2 Engine Type: DOHC - TCI/GDI Fuel Type: GASOLINE - UNLEADED Transaxle: AUTO - 8 SPEED 2WD Build Date: 2018-03-14 Nation Code: B28 Area: K7 Drive Type: L Weather Type: 3 Order Number: E1803H096B28A Vehicle Factory: 084 Full Specification Code: B28AB1S4J5G1J G91713 Exterior Color Code: T5K Interior Color Code: RSS Engine Mip Code: AP81 Transmission Mip Code: 2DN1 Vin Tag: 1 Model Year Code: 16 Catalog Information: (S4) SEDAN - 4DR 5P,(J5) 3300 CC - LAMBDA 2,(G) DOHC - TCI/GDI,(1) GASOLINE - UNLEADED,(J) AUTO - 8 SPEED 2WD,(L) DRIVE TYPE - LHD,(3) WEATHER - THE TEMPERATE ZONE Region: NA Native Region: HMA

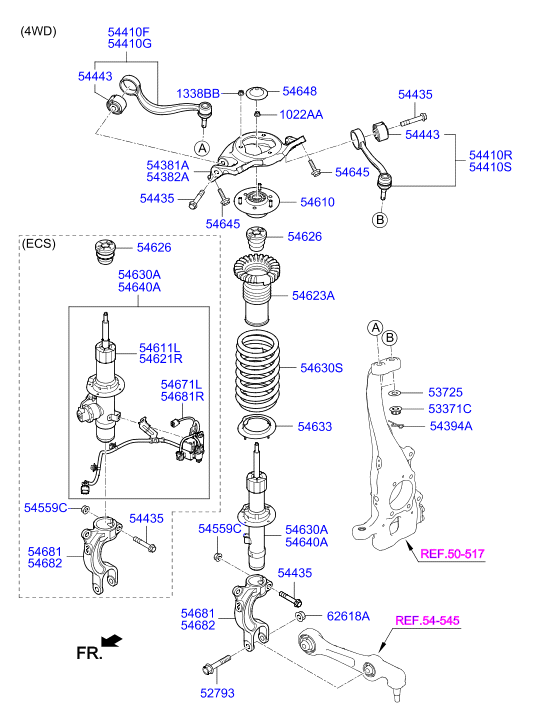

Genesis G80 16 2018 — Front Spring & Strut

Voir les schémas du véhicule

Pièces de rechange

Numéro de pièceDescriptionPNCQuantité
1022510007K NUT - SELF-LOCKING 2
Production:2016-11-15 – …
1338608007B NUT 6
Production:2016-09-01 – …
517683M000 NUT - CASTLE 4
Production:2016-09-01 – …
517883M100 WASHER - [PLAIN] 4
Production:2016-09-01 – …
54631B1500 BRACKET - SHOCK ABSORBER, LH 1
Production:2016-09-01 – …
54641B1500 BRACKET - SHOCK ABSORBER, RH 1
Production:2016-09-01 – …
545663M500 PIN 4
Production:2016-09-01 – …
54400B1500 FRONT ARM ASSY - FRONT UPPER, LH 1
Production:2016-09-01 – …
54401B1500 FRONT ARM ASSY - FRONT UPPER, RH 1
Production:2016-09-01 – …
54405B1500 REAR ARM ASSY - FRONT UPPER, LH 1
Production:2016-09-01 – …
54406B1500 REAR ARM ASSY - FRONT UPPER, RH 1
Production:2016-09-01 – …
544353M000 BOLT 4
Production:2016-09-01 – …
54443B1500 BUSH - UPPER ARM 4
Production:2016-09-01 – …
545591F000 FLANGE NUT - SELF-LOCKING 2
Production:2016-09-01 – …
54635B1000 INSULATOR ASSY - STRUT 2
Production:2016-09-01 – …
54611B1090 SHOCK ABSORBER-FR,LH 1
Production:2016-09-01 – …
54621B1090 SHOCK ABSORBER - FRONT, RH 1
Production:2016-09-01 – …
54634B1100 PAD - FRONT SPRING, UPPER 2
Production:2016-09-01 – …
54626B1050 BUMPER - RUBBER 2
Production:2016-09-01 – …
54605B1090 SHOCK ABSORBER ASSY - FRONT, LH 1
Production:2016-09-01 – …
54650B1350 SPRING - FRONT 2
Production:2016-09-01 – …
54633D2100 PAD - FRONT SPRING, LOWER 2
Production:2016-09-01 – …
54606B1090 SHOCK ABSORBER ASSY - FRONT, RH 1
Production:2016-09-01 – …
54645D2000 BOLT - FLANGE 8
Production:2015-11-01 – …
546483M000 CAP - FRONT 2
Production:2016-09-01 – …
56190B1060 EXTENSION WIRE ASSY - FRONT, LH 1
Production:2016-09-01 – …
56192B1060 EXTENSION WIRE ASSY - FRONT, RH 1
Production:2016-09-01 – …
626173K300 BOLT 62617C 2
Production:2016-09-01 – …
626181F000 FLANGE NUT 2
Production:2016-09-01 – …

Schéma

29 pièces
Genesis G80 16 2018 — Front Spring & Strut
