Hyundai I30 17 2020 — Engine Cooling System
Pièces de rechange
| Numéro de pièce | Description | PNC | Quantité |
|---|---|---|---|
| 1125406206B | BOLT | 2 | |
Production:2016-01-01 – … | |||
| 1125406306B | BOLT [W/ WASHER] | 2 | |
Production:2016-01-01 – … | |||
| 1129306206B | BOLT | 2 | |
Production:2016-01-01 – … | |||
| 25343F2000 | RUBBER INSULATION | 1 | |
Production:2016-01-01 – … | |||
| 25231F2000 | FAN - COOLING | 1 | |
Production:2016-01-01 – … | |||
| 252353K016 | SCREW - TAPPING | 25235 | 1 |
Production:2016-01-01 – … | |||
| 25310F2100 | RADIATOR ASSY | 1 | |
Production:2016-01-01 – … | |||
| 253183K100 | PLUG - RADIATOR DRAIN | 1 | |
Production:2016-01-01 – … | |||
| 25328B1000 | LABEL - RADIATOR CAP | 1 | |
Production:2016-01-01 – … | |||
| 25329F2000 | FILLER NECK ASSY - RADIATOR | 1 | |
Production:2016-01-01 – … | |||
| 25330B1000 | CAP ASSY - RADIATOR | 1 | |
Production:2016-01-01 – … | |||
| 253312P044 | CLAMP - (HOSE) | 1 | |
Production:2016-01-01 – … | |||
| 253311W041 | CLAMP - (HOSE) | 4 | |
Production:2016-01-01 – … | |||
| 25333F2000 | BRACKET ASSY - RADIATOR MOUNTING, UPPER | 2 | |
Production:2016-01-01 – … | |||
| 25336F2000 | INSULATOR - RADIATOR MOUNTING, LOWER | 2 | |
Production:2016-01-01 – … | |||
| 25350F2000 | SHROUD - RADIATOR | 1 | |
Production:2016-01-01 – … | |||
| 25380F2000 | BLOWER ASSY | 1 | |
Production:2016-01-01 – … | |||
| 25385F2000 | RESISTOR | 1 | |
Production:2016-01-01 – … | |||
| 25386F2000 | MOTOR ASSY | 1 | |
Production:2016-01-01 – … | |||
| 25342A5000 | BUSH | 2 | |
Production:2016-01-01 – … | |||
| 25388B1000 | LABEL | 1 | |
Production:2016-01-01 – … | |||
| 253953F000 | BOLT | 3 | |
Production:2016-01-01 – … | |||
| 253953K047 | TAP BOLT | 3 | |
Production:2016-01-01 – … | |||
| 25411F2100 | HOSE - RADIATOR INLET | 1 | |
Production:2016-01-01 – … | |||
| 25411F2050 | HOSE - RADIATOR INLET | 1 | |
Production:2016-01-01 – … | |||
| 25412F2100 | HOSE - RADIATOR LOWER | 1 | |
Production:2016-01-01 – … | |||
| 25414F2100 | HOSE ASSY - RADIATOR, UPPER | 1 | |
Production:2016-01-01 – … | |||
| 25415F2100 | HOSE ASSY - RADIATOR, LOWER | 1 | |
Production:2016-01-01 – … | |||
| 254413X000 | CAP - RADIATOR RESERVOIR | 1 | |
Production:2016-01-01 – … | |||
| 25451F2000 | HOSE - RADIATOR TO RESERVOIR | 25451H | 1 |
Production:2016-01-01 – … | |||
| 254853J000 | CONNECTOR | 26915A | 1 |
Production:2016-01-01 – … | |||
| 29136G3000 | GUARD - AIR, LH | 1 | |
Production:2016-01-01 – … | |||
| 29134G3000 | GUARD - AIR, RH | 1 | |
Production:2016-01-01 – … | |||
| 25341A5000 | BUSH - STEEL & RUBBER | 2 | |
Production:2016-01-01 – … | |||
| 865903S000 | RETAINER ASSY - BUMPER COVER MOUNTING | 2 | |
Production:2016-01-01 – … | |||
| 86594A5000 | SCREW | 4 | |
Production:2016-01-01 – … | |||
| 97606M6000 | CONDENSER ASSY - COOLER | 1 | |
Production:2018-07-02 – … | |||
| 97798F2000 | SEAL - CONDENSER | 1 | |
Production:2016-01-01 – … | |||
| 977983X000 | SEAL - CONDENSER | 2 | |
Production:2016-01-01 – … | |||
| 9780217000 | DESICCANT - RECEIVER DRIER | 1 | |
Production:2016-01-01 – … | |||
| 978030U000 | CAP ASSY - BOTTOM | 97803 | 1 |
Production:2016-01-01 – … | |||

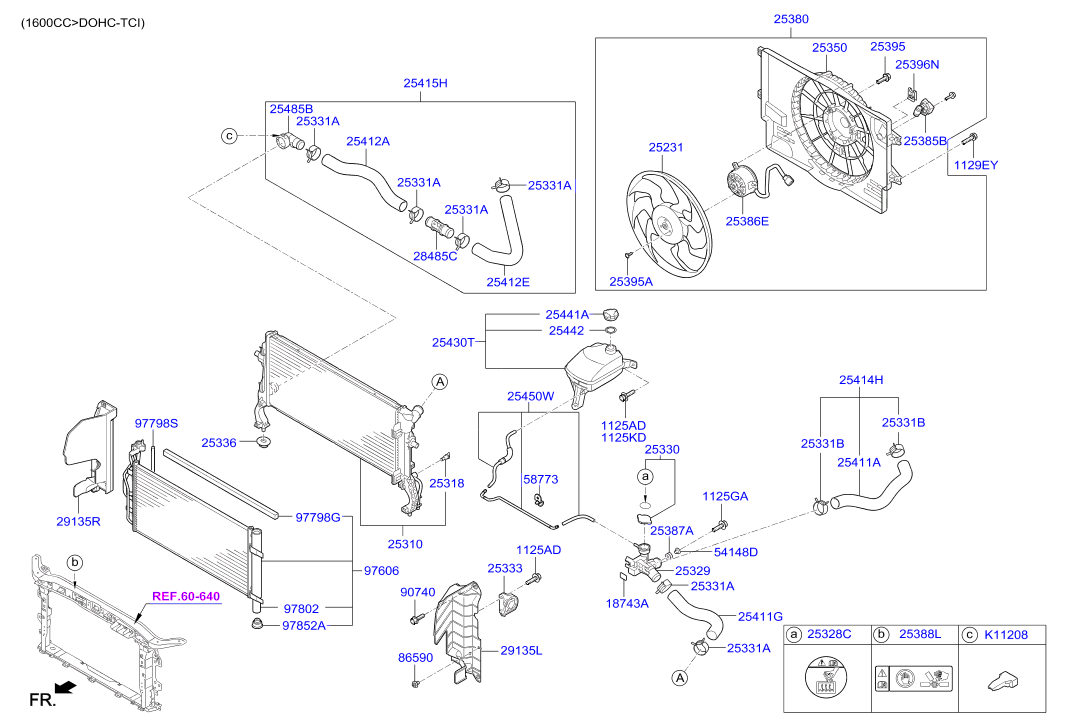

Schéma
41 pièces
