Open RégionAnnéeModèleCode modèle Détails
General 2020 Kona 18 J9W52G61F
Catalog: HYUNDAI202602 Model: J9W52G61F Model Year: 2020 Engine Number: G4NHLU712412 Transmission Number: RALUAS848777 Destination: MES Nation: SAUDI ARABIA Plant: K3 Exterior Color: DARK KNIGHT GRAY PEARL Interior Color: OCEANIDS BLACK Drive Type: DRIVE TYPE - LHD Weather Type: WEATHER - THE TROPICAL ZONE Body Type: WAGON - 5DR 5P Engine Capacity: 2000 CC - NU Engine Type: DOHC - MPI Fuel Type: GASOLINE - UNLEADED Transaxle: AUTO - 6 SPEED 2WD Build Date: 2020-09-09 Nation Code: D15 Area: K3 Drive Type: L Weather Type: 1 Order Number: E2008D044D15A Vehicle Factory: 084 Full Specification Code: D15AJ9W52G61F GGVH13 Exterior Color Code: YG7 Interior Color Code: TRY Engine Mip Code: AB10 Transmission Mip Code: WF38 Seat Code: APE1 Vin Tag: 1 Model Year Code: 18 Catalog Information: (W5) WAGON - 5DR 5P,(2G) 2000 CC - NU,(6) DOHC - MPI,(1) GASOLINE - UNLEADED,(F) AUTO - 6 SPEED 2WD,(L) DRIVE TYPE - LHD,(1) WEATHER - THE TROPICAL ZONE Region: OTHER Native Region: MES

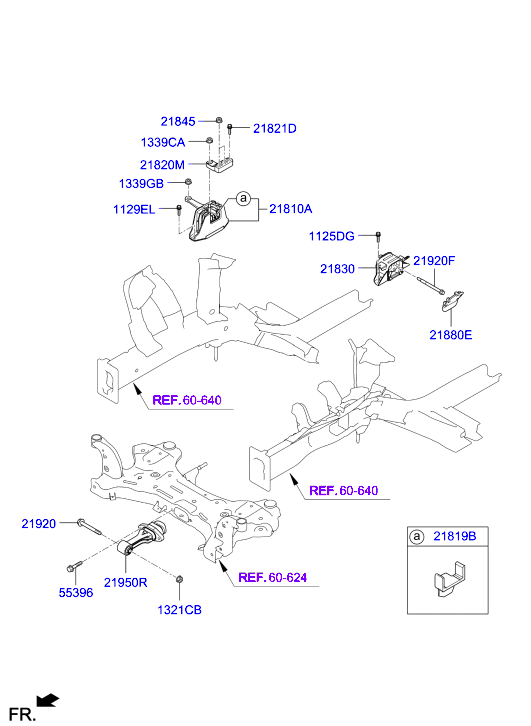

Hyundai Kona 18 2020 — Engine & Transaxle Mounting [2000 CC - Nu]

Voir les schémas du véhicule

Pièces de rechange

Numéro de pièceDescriptionPNCQuantité
1125210306P BOLT 2
Production:2016-07-01 – …
1125210406P BOLT 2
Production:2016-07-01 – …
1339712007K NUT 1
Production:2016-07-01 – …
1338712007K NUT 1
Production:2016-07-01 – …
1339610007K NUT 1
Production:2016-07-01 – …
21810J9000 BRACKET ASSY - ENGINE MOUNTING 1
Production:2016-12-01 – …
21824F2000 STOPPER 1
Production:2016-07-01 – …
21825F2100 BRACKET ASSY - ENGINE MOUNTING 1
Production:2016-07-01 – …
21991A5000 BOLT ASSY - ENGINE MOUNTING 1
Production:2016-07-01 – …
21830J9100 BRACKET ASSY - TRANSMISSION MOUNTING 1
Production:2017-12-01 – …
218222G000 NUT ASSY 2
Production:2016-07-01 – …
21880J9000 PACKING - TRANSMISSION MOUNTING SIDE PANEL 1
Production:2018-04-16 – …
219911J100 BOLT 1
Production:2016-07-01 – …
21991M6000 BOLT 2
Production:2020-04-06 – …
21950Q5000 BRACKET ASSY - ROLL ROD 1
Production:2020-08-27 – …
219202E000 BOLT - SEMS 2
Production:2017-02-15 – …

Schéma

16 pièces
Hyundai Kona 18 2020 — Engine & Transaxle Mounting [2000 CC - Nu]
