General 2011 TFR/TFS(THAILAND) 50931~2003~2011
Catalog: ISUZU201809 Vehicle Class: PICKUP Model Qualifier: TF Source Catalog Name: TFR/TFS(THAILAND) 03 - 11 Source Production Code: 20110707 Production Date: 20110707 Ak6: AIR BAG DRIVER & PASSENGER DELETE Rw5: KD PACK THAILAND E63: REAR BODY DBL WALL CTR PULL A31: DRIVER POWER WINDOW W/AUTO DOOR DOWN S9 R: AIR CLEANER DRY ELEMENT 20 D: THAILAND KD DELETION PARTS E20: HANDLE O/S DOOR CHROME Ula: RADIO AM/FM & CD & AUX/USB Ap5: REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM A50: FRONT SEAT BUCKET STANDARD Vy7: SHIFT KNOB LEATHER Qbq: FRT&RR 215/70R15C BRIDGESTONE TIRE Vt4: FRT BUMPER UPPER BODY COLOR LOWER GRAY PAINT Au4: AUTO DOOR LOCK B85: BODY SIDE MOLDING 8 Nl: BODY SIDE MOLDING CHROME B03: THAILAND EQUIPMENT K20: ELECTRONIC CONTROL C65: AIR CONDITIONER MANUAL CONT WO/HEATER U16: TACHOMETER 8 Mb: INTERIOR STEERING CENTER PAD BADGE Pf3: DISC WHEEL 15X6.5-41 ALUMI Tm1: BATTERY 80D26L T96: FRT FOG LAMP Nt3: EURO3 SPECIFICATION De3: DOOR MIRROR POWER FOLDING CHROME TURN SIGNAL Uq4: 4-SPEAKER SYSTEM BASE Gm0: FINAL GEAR RATIO 43/12 8 Lm: SEAT TRIM HIGH GRADE CLOTH JACQUARD 7 Wl: ISUZU BRAND Region: OTHER Native Region: WW

Isuzu TFR/TFS(Thailand) 2011 — Engine Electrical Control Parts — Starter,Generator And Thermo Switch

Voir les schémas du véhicule

Pièces de rechange

Numéro de pièceDescriptionPNCQuantité
8980281990 STARTER ASM 1
Production:2007-10 – 9999-99 Usage:SEE FIG-NO 0-65 FOR COMPONENT.(B)12V 2.3KWTHA Manufacturer:ISUZU Applied Date:0710- Applied Model:DEF
8981965850 GENERATOR ASM 1
Production:2011-07 – 2012-11 Replacements:8982903230 (fitment: unknown) Replacements:8982290711 (fitment: unknown) Usage:SEE FIG-NO 0-66 FOR COMPONENT.12V 90ATHA Manufacturer:ISUZU Itc:C Applied Model:DEF Applied Date:1107-1211
8971618461 BOLT; STARTER 2
Production:2007-10 – 9999-99 Usage:M12X60THA Manufacturer:ISUZU Applied Date:0710- Applied Model:DEF
0911801120 NUT; STARTER 2
Production:2007-10 – 9999-99 Usage:M12 FLANGETHA Manufacturer:ISUZU Applied Date:0710- Applied Model:DEF
8972264701 BOLT; GEN 1
Production:2007-10 – 9999-99 Usage:M10X125 FLANGETHA Manufacturer:ISUZU Applied Date:0710- Applied Model:DEF
8973560201 BRACKET; GEN 1
Production:2007-10 – 9999-99 Usage:(B)THA Manufacturer:ISUZU Applied Date:0710- Applied Model:DEF
0911802100 NUT; GEN 1
Production:2007-10 – 9999-99 Usage:M10 FLANGETHA Manufacturer:ISUZU Applied Date:0710- Applied Model:DEF
0286510350 BOLT; GEN BRKT 1
Production:2007-10 – 9999-99 Usage:(A)M10X35 FLANGETHA Manufacturer:ISUZU Applied Date:0710- Applied Model:DEF
0286510400 BOLT; GEN BRKT 2
Production:2007-10 – 9999-99 Usage:(B)M10X40 FLANGETHA Manufacturer:ISUZU Applied Date:0710- Applied Model:DEF
8980237170 SENSOR; GLOW PLUG,THERMO 1
Production:2007-10 – 9999-99 Usage:NIPPON THERMOSTATIMA Manufacturer:ISUZU Applied Date:0710- Applied Model:DEF
8973121081 SENSOR; CAMSHAFT POSITION 1
Production:2007-10 – 9999-99 Usage:IMA Manufacturer:ISUZU Applied Date:0710- Applied Model:DEF
8973694040 GASKET; SENSOR 1
Production:2007-10 – 9999-99 Usage:ID=14.2 OD=18.8IMA Manufacturer:ISUZU Applied Date:0710- Applied Model:DEF
0280506160 BOLT; SENSOR 1
Production:2007-10 – 9999-99 Usage:(A)M6X16 FLANGETHA Manufacturer:ISUZU Applied Date:0710- Applied Model:DEF
— Cette pièce ne correspond pas à la configuration de ce véhicule. 24 —
— Cette pièce ne correspond pas à la configuration de ce véhicule. 8 —
— Cette pièce ne correspond pas à la configuration de ce véhicule. 83 —
— Cette pièce ne correspond pas à la configuration de ce véhicule. 108 —

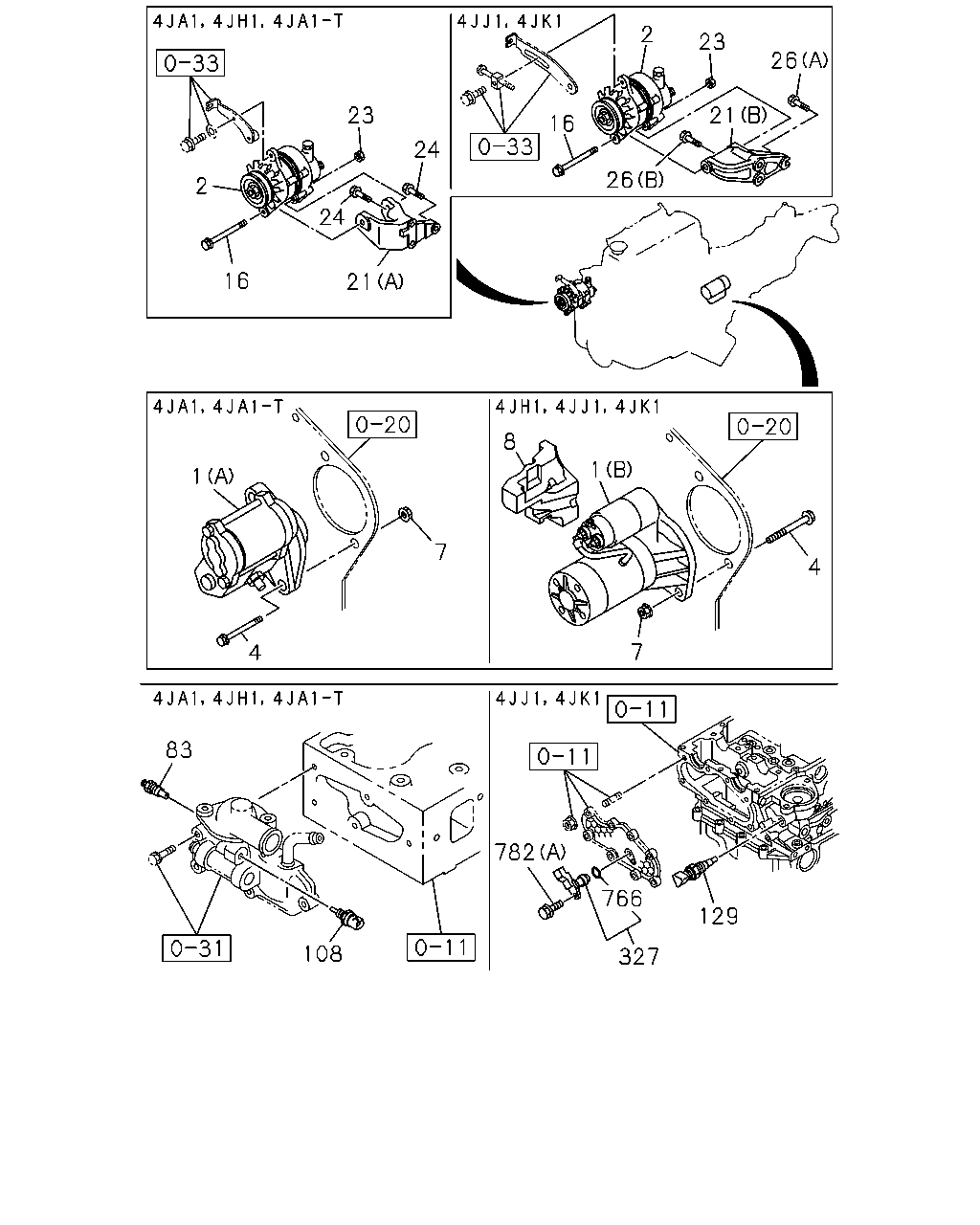

Schéma

13 pièces
Isuzu TFR/TFS(Thailand) 2011 — Engine Electrical Control Parts — Starter,Generator And Thermo Switch
